Product Overview & Key Benefits

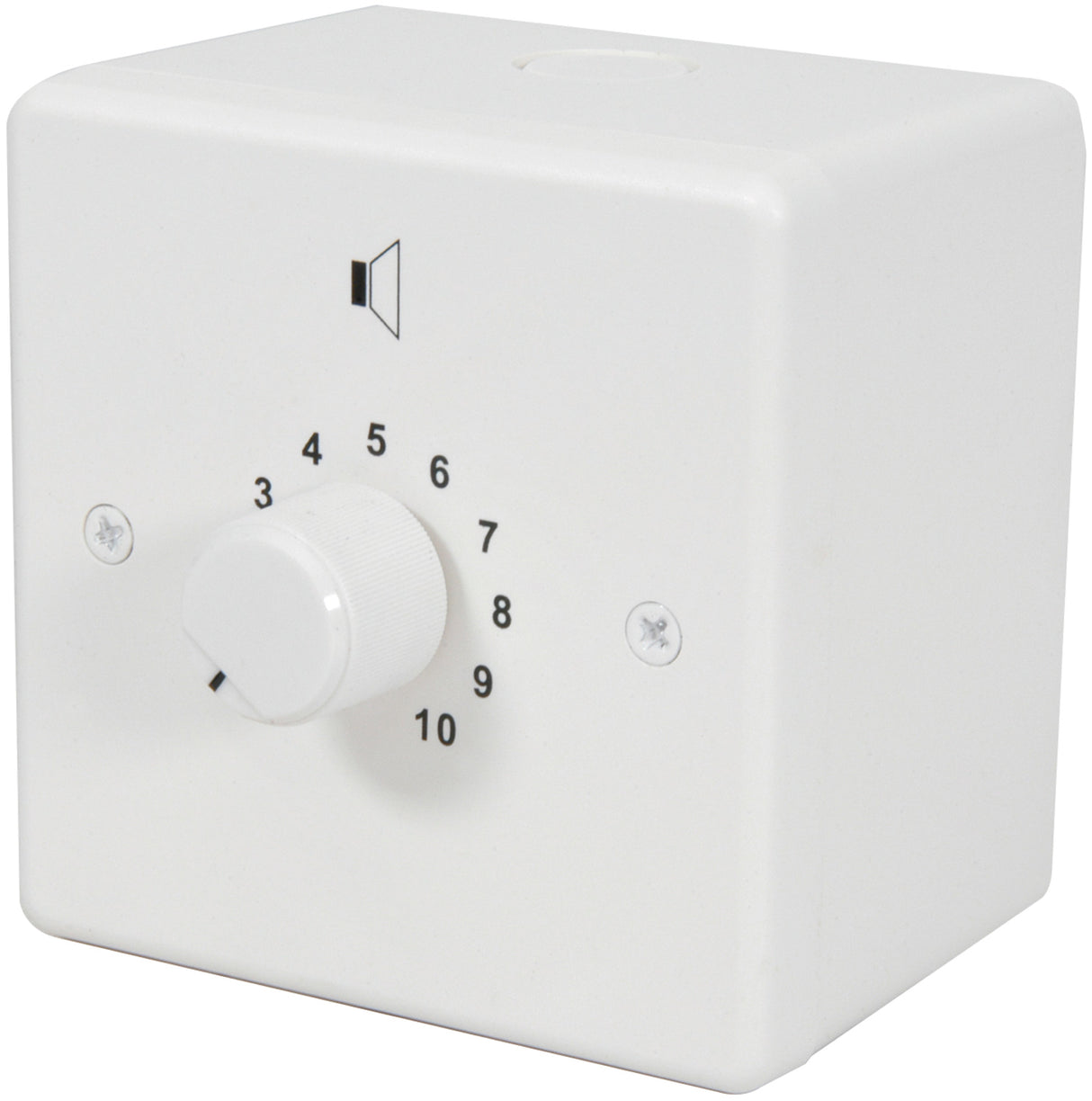

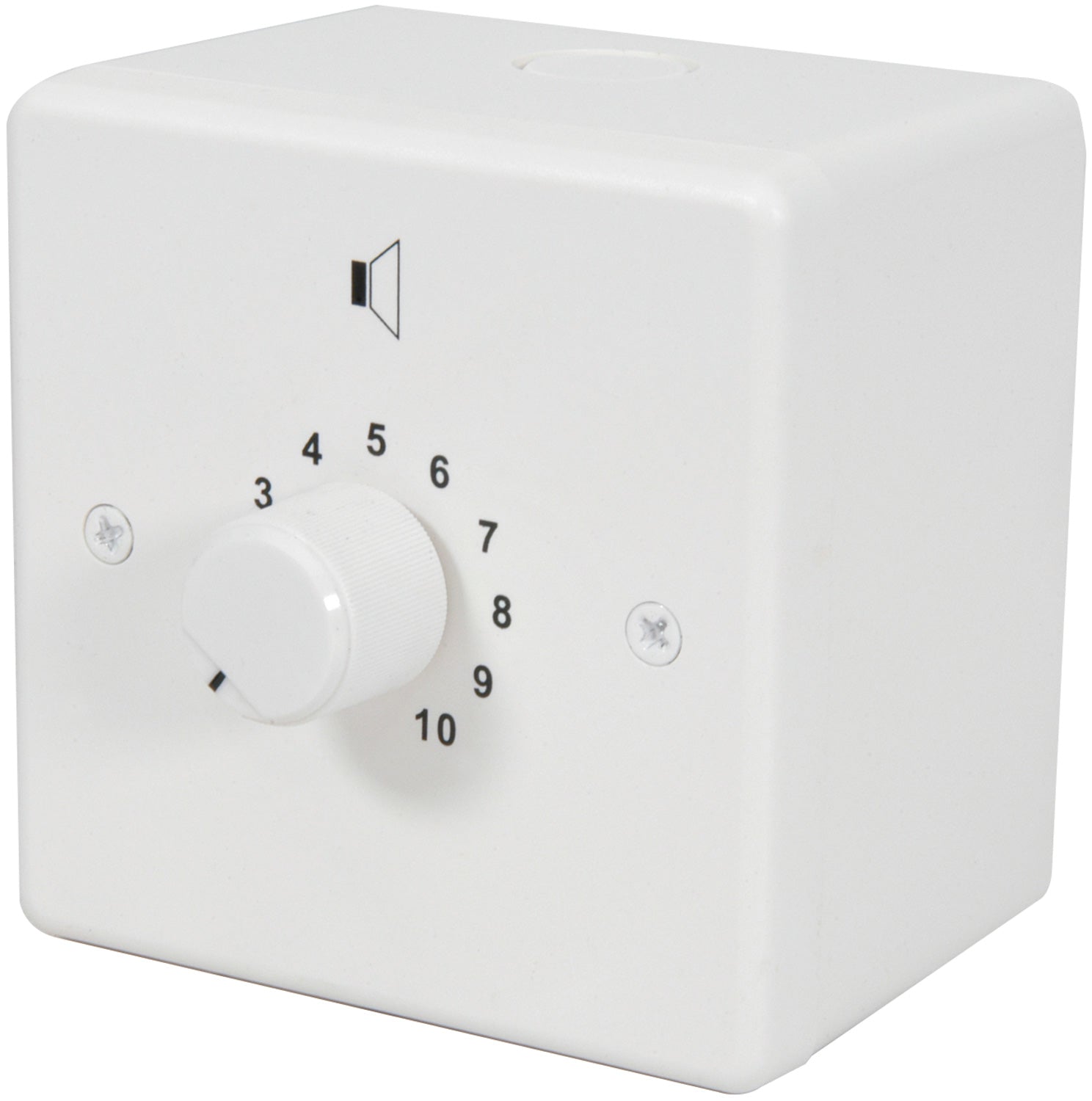

The100V Volume Controls - Relay Fittedis a premium quality audio attenuator designed to seamlessly manage volume levels in loudspeaker systems. This product is particularly suitable for commercial settings such as hotels, restaurants, and public venues that require effective sound management. With its stylish ABS faceplate and robust design, the attenuator combines functionality with aesthetic appeal, making it an ideal choice for any installation.

One of the standout features of this volume control is its24V relaycapability, which allows for a manual bypass to full volume when triggered by a fire alarm system. This is an essential safety feature that prioritises emergency protocols without compromising sound quality during regular operation.

Technical Specifications & Product Details

• Power:12W
• Relay:24V, 50mA
• Weight:228g
• Attenuation:3dB per graduation in 10 steps (8 x 3dB and 2 x 6dB steps)
• Mounting Depth:47mm
• Frequency Response:35Hz - 20kHz
• Dimensions (Assembled):85 x 85 x 75mm (including back box)
• Dimensions (Unit Only):82mm width x 88mm height x 90mm length

Ideal Uses & Applications

This versatile100V Volume Controlis perfect for various applications, especially in settings where precise audio control is crucial. Here are some ideal uses:

• Domestic DIY Projects:Home theatres and multi-room audio systems can benefit from fine-tuning volume levels.
• Commercial Buildings:Offices and meeting rooms can achieve optimal sound without disrupting the workflow.
• Hospitality Settings:Restaurants and cafes can create a pleasant atmosphere by adjusting the background music volume as needed.
• Public Venues:The emergency bypass function makes it suitable for theatres, schools, and public venues where safety regulations must be adhered to.

Energy Efficiency & Cost Savings

The100V Volume Controls - Relay Fittednot only enhances audio experience but also contributes to energy efficiency. By effectively moderating the power usage in audio installations, users can enjoy considerable cost savings on electricity bills. Implementing such a control in a sound system can potentially lead to a reduction in energy costs by up to50 percentdepending on usage patterns and the overall system configuration.

Additionally, the high-quality materials ensure that the components are durable, reducing the need for frequent replacements or repairs, further resulting in cost savings over the product's lifecycle.
