AC/DC Power Adapters
An AC/DC power adapter turns mains electricity into the low-voltage direct current a device runs on. This collection covers plug-in and in-line adapters such as the LYYT 660.452UK, universal Mercury adapters with adaptor plugs, IP67 LED tape supplies, Haydon boxed supplies with battery backup, and makers' own adapters for cameras and network kit. Mercury USB chargers are on this page too.
12V 5A Boxed PSU with Battery Backup, 13.8V Output, Tamper, 90-264VAC HAY-PSU12V5ABBL
Reliable 5A£ 83 26RRP: £99.91Fast delivery Tomorrow, 20 Nov24 V DC 60 W DIN-rail Power Supply for 2-wire Intercom Distributor DS-KAW60-2N
Ultrathin DesignFast delivery Tomorrow, 20 Novdormakaba 56442900 power adapter
£ 145 41Haydon 12V 1.5A Regulated Inline Power Supply
Reliable Power£ 8 28RRP: £9.94Fast delivery Tomorrow, 20 NovHaydon 24 VAC Outdoor CCTV Power Supply, IP66, 4A, Grey - HAY-IP-24VPSU-1X4A
Weatherproof£ 61 20RRP: £73.44Haydon 24V DC 3A Boxed PSU with Battery Backup, Tamper & Mains-Fail Relay HAY-DC24V3ABBLPSU
Battery Backup£ 61 38RRP: £73.66Fast delivery Tomorrow, 20 NovHaydon Boxed 12V DC Power Supply with Battery Backup 1A HAY-PSU12V1ABB
Battery Backup£ 23 36RRP: £28.032 Years WarrantyFast delivery Tomorrow, 20 NovHaydon Boxed 24V DC 2A Power Supply with Battery Backup, Tamper & Mains-Fail Relay HAY-DC24V2ABBLPSU
Battery Backup£ 51 87RRP: £62.24Fast delivery Tomorrow, 20 NovHaydon Boxed 24V DC Battery-Back Power Supply, 10A (240W), HAY-DC24V10ABBLPSU
Battery Backup£ 122 92RRP: £147.50Fast delivery Tomorrow, 20 NovHaydon Boxed Power Supply, 12 V DC (13.8 V nom), 3 A, Battery Backup, Metal Box, HAY-PSU12V3ABB
3A Output£ 43 51RRP: £52.212 Years WarrantyFast delivery Tomorrow, 20 NovHaydon HAY-DC24V5ABBLPSU Boxed 24V DC Power Supply with Battery Backup, 5A
Battery Backup£ 94 65RRP: £113.58Fast delivery Tomorrow, 20 NovHaydon HAY-PSU12V3ABBL 12V DC Boxed PSU with Battery Backup, 3A
High Efficiency£ 51 38RRP: £61.66Fast delivery Tomorrow, 20 Nov
Choosing AC/DC Power Adapters
Choose an adapter by the voltage and current your equipment needs, whether it wants AC or DC, and how it connects.
Match voltage, current and plug

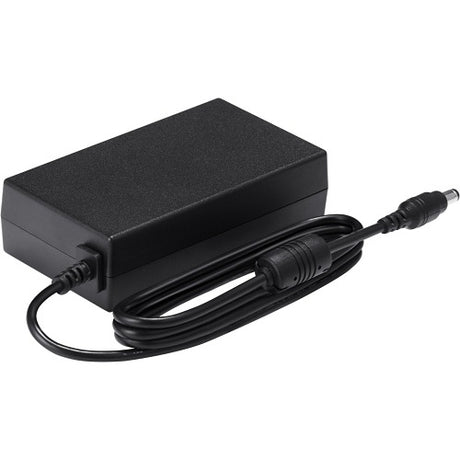

Read the device's input label first: the adapter must give the same voltage and at least the current it draws. LYYT in-line adaptors such as the 660.452UK give 12Vdc at 3A through a centre-positive 5.5 x 2.1mm DC plug. Camera makers supply their own, such as the Dahua DH-PFM320D-BS at 12V 2A and the Hanwha SPU-60241 at 24V 2.5A.
Universal adapters
For small electronics, Mercury universal adapters such as the 661.403UK give 3V to 12V at up to 1500mA and come with 8 DC adaptors and a USB socket adaptor. The 660.446UK is a fixed 12V version rated 1000mA with 8 adaptors.
Waterproof and panel supplies
LYYT 153.7 series supplies are IP67 rated for LED tape indoors or outside, in 12Vdc and 24Vdc versions. For alarm and access control panels, the Haydon HAY-DC24V5ABBLPSU charges a standby battery and adds a mains fail output relay, and Mercury 13.8Vdc switch-mode supplies such as the 650.759UK are aimed at radio equipment, alarm and access control systems.
USB chargers
Mercury GaN USB chargers such as the 421.725UK give 65W across one USB-A and two USB-C ports for laptops, tablets and phones.
| Type | Example | Output |
|---|---|---|
| In-line adaptor | LYYT 660.454UK | 12Vdc, 5A, DC5521 plug |
| Camera adapter | Hanwha SPU-60241 | 24V, 2.5A, 60W |
| Universal adapter | Mercury 661.401UK | 3V to 12V, 1000mA |
| CCTV supply | Veracity VPSU-57V-800 | 57V DC, 800mA |
| Boxed, battery backup | Haydon HAY-DC24V5ABBLPSU | 24V DC, 5A |
| USB charger | Mercury 421.773UK | 65W, 2 USB-A and 2 USB-C |
Brands we stock in AC/DC Power Adapters
Ajax, AMG Systems, Axis Communications, Dahua Technology, Hanwha Vision, Haydon, Hikvision, Knightsbridge, LYYT, Mercury, Nitek, RGL Electronics, TOA, TRENDnet, Ubiquiti and Veracity.
Mercury supplies the most products here, including USB chargers, universal adapters and 13.8V supplies.
Related categories
See also Lyyt Power Supplies. Compare the full power adapters and supplies range, fixed DC power supplies and inverters, add leads from power supply accessories, or browse batteries and power supplies.
Frequently asked questions
What does an AC/DC adapter do?
An AC/DC adapter changes the mains AC supply into a steady low-voltage DC output for electronics such as CCTV cameras, LED tape and intercoms. Inside, the mains is rectified and smoothed, then a switch-mode circuit steps it down and regulates it. Plug-in, in-line and boxed designs are common. The range here includes in-line, universal and camera makers' adapters.
How do I choose a DC power adapter?
Choose a DC power adapter that matches the device's voltage exactly and can give at least the current it draws. Then check the plug size and polarity, such as a centre-positive barrel plug, and whether the adapter will sit indoors or needs a waterproof rating. The range here includes in-line, plug-in and waterproof adapters.
What is an AC to DC USB charger?
An AC to DC USB charger plugs into a mains socket and converts the AC supply into the low-voltage DC that phones, tablets and laptops charge from over USB. USB-C PD chargers can negotiate a higher voltage for a laptop, and GaN designs fit more power into a smaller body. Check the wattage the device needs. The range here includes USB-A and USB-C mains chargers.
What is an AC power supply?
An AC power supply gives a low-voltage alternating current output, such as 24V AC, rather than converting the mains to DC. Some CCTV cameras, particularly pan-tilt-zoom models, run on a 24V AC supply. Check the input label, because a device marked for AC may not run on a DC adapter. The range here includes plug-in and outdoor AC supplies.
