Smart Light Switches & Dimmers
Smart light switches here are parts of Ajax LightSwitch Jeweller, a smart touch light switch built from a LightCore relay and a SoloButton touch panel that work as part of an Ajax system. The collection holds SoloButton panels in black, white, grey, olive, oyster, graphite and ivory, a SoloButton dimmer panel with a dimming slider, a LightCore dimmer and a 2-gang LightCore relay, with no neutral wire needed.
Choosing Smart Light Switches & Dimmers
A smart light switch is a switch that can be controlled remotely as well as by touch; Ajax LightSwitch Jeweller, for example, is a smart touch light switch that operates as part of the Ajax system. Pick the LightCore that matches the circuit, then the SoloButton panel and its colour.
Two parts: relay and panel

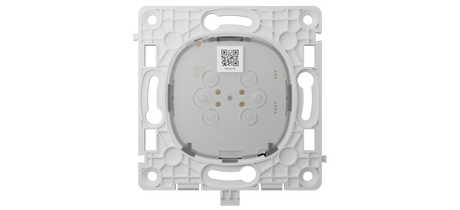

A single LightSwitch consists of a LightCore relay and a SoloButton touch-sensitive panel, and the components are bought separately. The 63115.142.NC is the LightCore relay for a 2-gang switch, sold without a touch panel or frame; it switches between 5 and 300 W per segment, 600 W in total. The 91249.255.WH1 LightCore contains a dimmer core that controls power to the lighting device, with current and temperature protection.
Wiring
LightSwitch is installed without changing the electrical wiring. It does not need a neutral wire and runs from the supply phase alone, and it uses the standard European 55 form factor. LightSwitch can replace a mechanical or touch switch, the line includes one-gang, two-gang and two-way versions, and several switches can sit side by side in one frame.
Panels and dimming
The 46001.144.OL SoloButton has a contactless touch panel, night backlight and IP20 rating, and connects over Jeweller radio at distances as great as 1,100 m. The 98609.257.GP1 SoloButton dimmer panel has an integrated dimming slider, a non-dazzling LED backlight, and remote control and configuration in the Ajax app.
Parts at a glance
| Model | Part | Detail |
|---|---|---|
| 63115.142.NC | LightCore relay, 2-gang | 5 to 300 W per segment |
| 91249.255.WH1 | LightCore dimmer | No neutral needed |
| 98609.257.GP1 | SoloButton dimmer panel, graphite | Dimming slider |
| 46001.144.OL | SoloButton, 1-gang or 2-way, olive | Night backlight, IP20 |
| 46018.144.IV | SoloButton, 2-gang, ivory | Contactless touch panel |
| 45119.144.BL | SoloButton, black | European 55 form factor |
Related pages
See smart home and automation and light switches.
Brands we stock in Smart Light Switches & Dimmers
Ajax.
Frequently asked questions
What is a smart light switch?
A smart light switch replaces a standard wall switch and lets you control the light from a phone app, a schedule or an automation, as well as by touch. Some work with a home security system, so lights can respond to alarms or arming. The range here includes touch switch panels and the relay and dimmer modules they fit onto.
How do you change a light switch to a smart switch?
Turn off the lighting circuit at the consumer unit and remove the old switch. Connect the smart switch's relay to the same wires following the maker's diagram, then pair it with its app or hub. Check whether it needs a neutral wire and fits your back box. In the UK, this electrical work should be done by a competent person.
Do smart light switches need a neutral wire?
No, not always. Smart switches often need a neutral wire to power their electronics, but some are designed to work from the live and switched live alone, which suits older UK homes where switch boxes often have no neutral. Check the maker's wiring requirements before buying. The range here includes relay and dimmer modules that need no neutral wire.
