EZVIZ Solar Panels

EZVIZ solar panels keep battery cameras charged or recharge a portable power station. This page holds 12 W and 24 W panels with built-in batteries and two USB-A outputs for two outdoor battery cameras, a 6.18 W panel for EZVIZ battery cameras with a USB-C port, foldable 100 W and 200 W portable panels for EZVIZ power stations, and a 2K battery video doorbell supplied with a solar panel.

Choosing EZVIZ Solar Panels

Match the panel to what it has to charge: one battery camera, two cameras with stored backup, or a portable power station.

Panels with a built-in battery

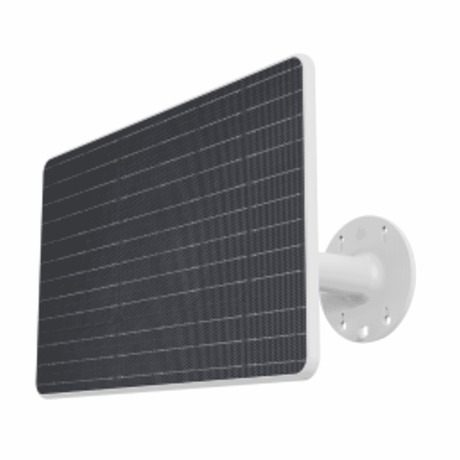

The CS-PBC12-R100-10AH pairs a 12 W monocrystalline panel with a 37.23 Wh battery, which provides stored power at night or in cloudy weather. The CS-PBC24-R100-20AH pairs a 24 W panel with a 75 Wh battery (14.6 V, about 5000 mAh). Both feed two EZVIZ outdoor battery cameras through two USB-A outputs, take a USB-C input, have an IP65 enclosure and come with an adjustable bracket, 3 m cables and adapters. Both also work with the EZVIZ app for status monitoring with compatible cameras.

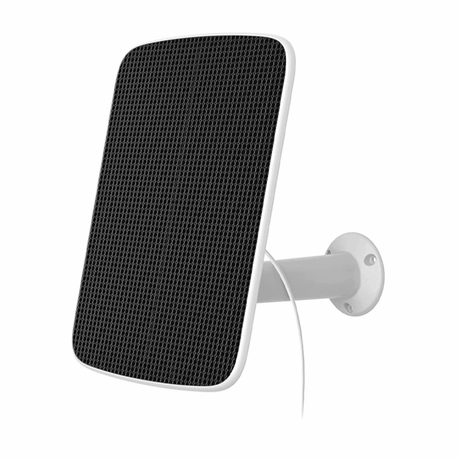

Solar Charging Panel-E

The Solar Charging Panel-E is a compact, low-profile monocrystalline panel for EZVIZ battery cameras with a USB-C charging port. It gives a maximum output of 6.18 W (nominal 6 V, about 1030 mA), is rated IP65 and measures 283.7 × 185.7 × 2.4 mm at about 484 g. It is supplied with a 4 m USB-C cable, a 360° adjustable bracket, a screw kit and a drill template, and suits continuous trickle charging on porches, carports and outbuildings.

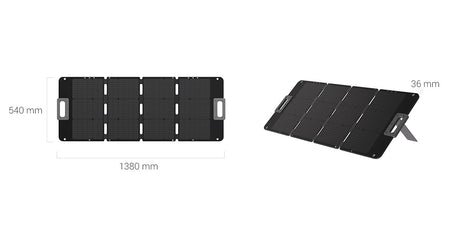

PSP100 portable panel

The PSP100 is a 100 W foldable panel for charging compatible portable power stations. It uses high-efficiency monocrystalline cells with ETFE lamination, is rated IP67, and has a carry handle and a multi-angle kickstand with a recommended tilt of about 25° to 60°. It connects through an MC4 connector on a cable of about 1 m and 16 AWG, and it is a portable recharging source rather than a permanently installed PV array.

ModelPanel outputChargesConnection
CS-PBC12-R100-10AH12 W, 37.23 Wh batteryTwo battery camerasTwo USB-A out, USB-C in
CS-PBC24-R100-20AH24 W, 75 Wh batteryTwo battery camerasTwo USB-A out, Type-C in
Solar Charging Panel-E6.18 WA USB-C battery camera4 m USB-C cable
PSP100100 WPortable power stationsMC4 connector

Related categories

Pair a panel with EZVIZ CCTV cameras, find power stations in portable power stations and solar, browse EZVIZ products and CCTV installation accessories, or see the wider CCTV cameras range.

Frequently asked questions

How does an EZVIZ solar panel charger work?

An EZVIZ solar panel charger turns daylight into electricity and trickle-charges a battery camera or doorbell through its cable. Its monocrystalline cells generate power while light reaches them, so the device battery is topped up during the day and rarely needs taking down. Output drops on dull winter days, so a sunny position matters. The range here includes camera panels and foldable panels for portable power stations.

Why choose an EZVIZ solar panel with battery storage?

A panel with battery storage keeps cameras powered at night and through cloudy spells, because it banks surplus daytime energy. EZVIZ battery-backed panels can feed two outdoor battery cameras through separate USB outputs. They suit remote or hard-to-reach camera positions where running a mains cable is impractical. Choose this type where sunlight is patchy or where two cameras share one mounting point.

Where should an EZVIZ camera solar panel be mounted?

Mount it where it gets several hours of direct sun, usually on a south-facing wall, fence or pole, clear of trees and roof overhangs. Keep it close enough for the supplied cable to reach the camera without strain. Tilt it towards the sun using the adjustable bracket, and wipe leaves, snow or dirt off the glass now and then to keep output up.

What is an EZVIZ solar panel?

An EZVIZ solar panel is a weatherproof photovoltaic panel made to charge EZVIZ battery devices, such as outdoor cameras, video doorbells and portable power stations. Smaller camera panels connect to the device by a USB lead, while larger foldable panels are carried to wherever power is needed. The range here includes panels with built-in batteries and a doorbell kit with its own panel.
