Linear Heat Detection Cable

Linear heat detection cable senses heat along its length, so a fire alarm can be raised wherever the cable runs rather than at a single point. The collection holds Kidde linear heat detection cable, including the Alarmline II range: digital cables that trigger at a fixed temperature, with ratings from 68°C upwards and PVC, nylon or stainless steel outer sheaths, and analogue cables with a stainless steel braid over a PVC or nylon sheath.

Choosing Linear Heat Detection Cable

Linear heat detection cable is a heat detector in cable form that detects heat along its total length; the Kidde AD68, for example, is a digital LHD cable with a 68°C fixed temperature activation rating. Choose between digital and analogue cable first, then the activation temperature and the outer sheath for the environment.

Digital cable and activation temperature

Digital cables activate at a fixed temperature. The AD68 is rated 68°C, the ADE88-0500 88°C, the AD185N and AD185SS 185°C, and the AD218SS-0500 218°C. The AD185N, AD185SS and AD68 allow zones as long as 3000m, and the AD185N and AD185N-0500 are cUL/UL 521 approved.

Sheaths and environments

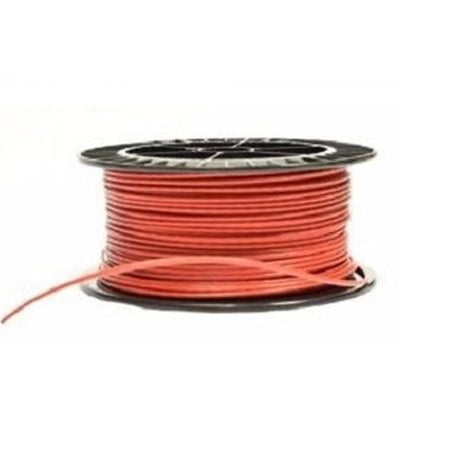

The AD68 has a standard PVC outer sheath for internal applications. The AD185N has a nylon sheath with additional UV protection and durability for external applications, and the AD185SS adds stainless steel over nylon for UV and mechanical protection. The AD218SS-0500 has stainless steel over a silicon sheath, and the ADE88-0500 is flame retardant and Low-Smoke Zero Halogen. The AD185SS, AD218-0100 and AD218SS-0500 suit use in hazardous areas.

Analogue cable

The AASS and AASSN are analogue linear heat detection cables with a stainless steel braid for extra mechanical protection, the AASS over a PVC sheath and the AASSN over nylon. Their open and short circuit detection reduces the risk of false alarms, and an optional pre-alarm setting helps manage risk.

Cables at a glance

ModelTypeRating or sensingSheath

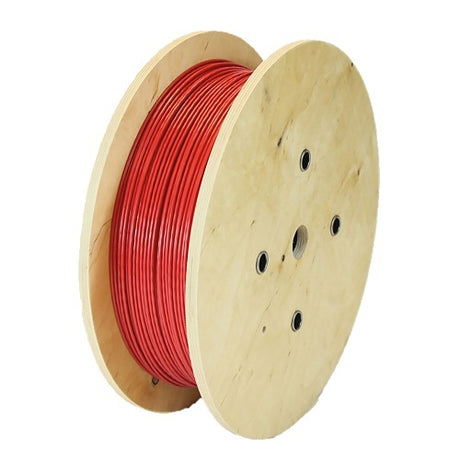

AD68Digital LHD68°CPVC

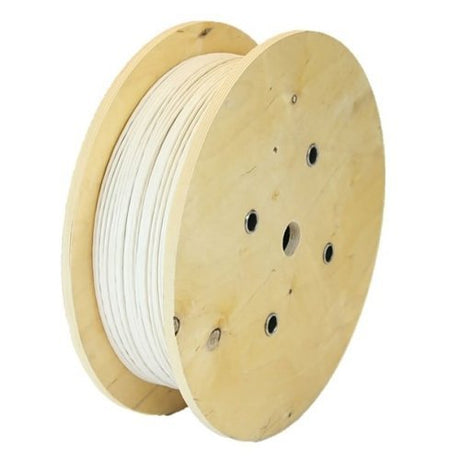

ADE88-0500Digital LHD88°CLow-Smoke Zero Halogen

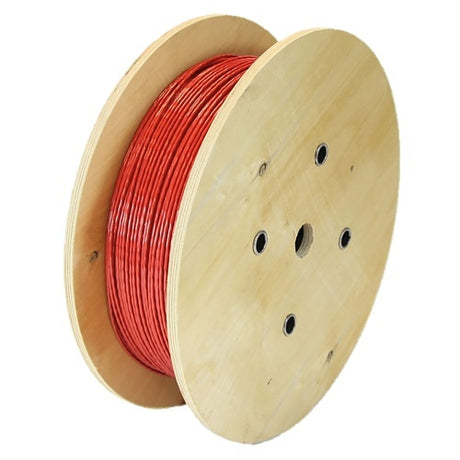

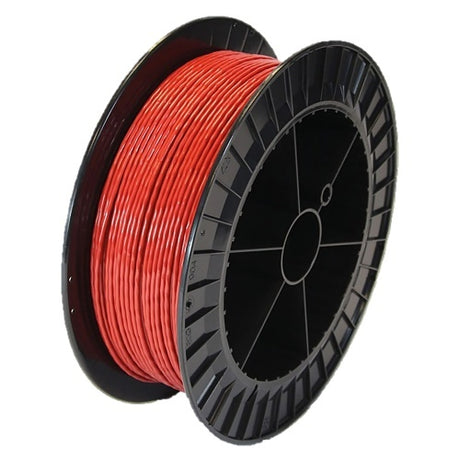

AD185NDigital LHD185°CNylon

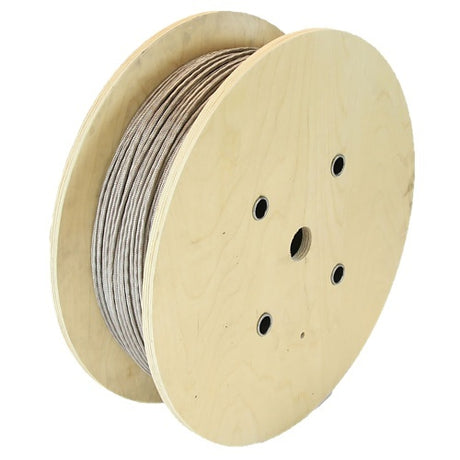

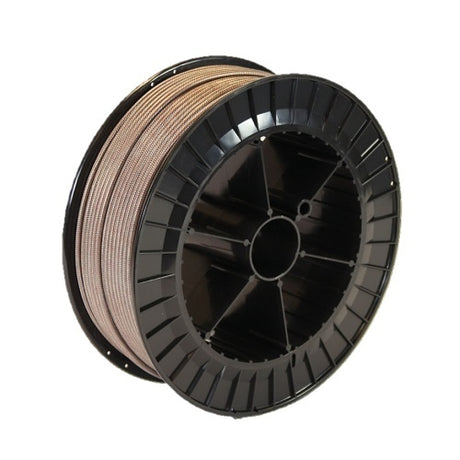

AD185SSDigital LHD185°CStainless steel over nylon

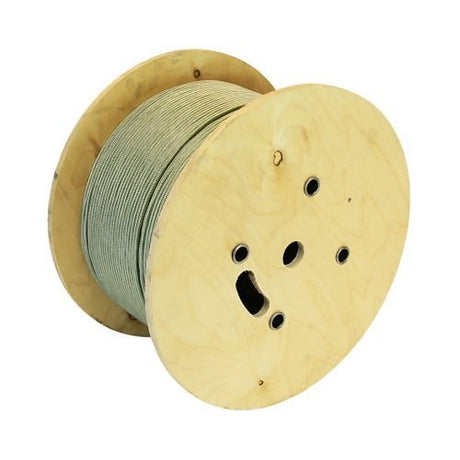

AD218SS-0500Digital LHD218°CStainless steel over silicon

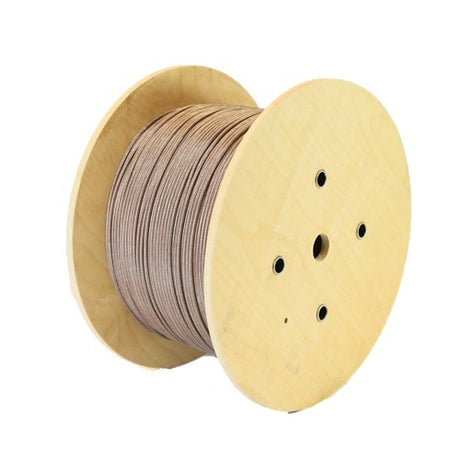

AASSAnalogue LHDPre-alarm optionPVC with stainless steel braid

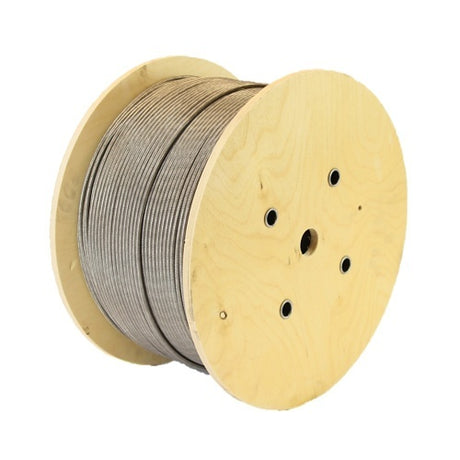

AASSNAnalogue LHDPre-alarm optionNylon with stainless steel braid

Related pages

See heat detectors and fire detectors.

Brands we stock in Linear Heat Detection Cable

Kidde.

Frequently asked questions

What is linear heat detection?

Linear heat detection uses a heat-sensitive cable run along the area it protects, such as a cable tray, conveyor or tunnel. It signals an alarm when it detects heat at any point along its length. It suits places where point detectors struggle with dust, damp or long distances. The range here includes digital and analogue linear heat detection cable.

What is the difference between digital and analogue linear heat detection cable?

Digital cable has two conductors that short together when any point reaches its fixed alarm temperature, and the heated section is replaced afterwards. Analogue cable changes its electrical properties as it warms along its length, so it is monitored by an interface that sets the alarm level, and it can usually be reset after an alarm if the cable is undamaged. The range here includes digital and analogue cable.
