Security Turnstiles

Security turnstiles control pedestrian access through a lane, opening when a person authenticates with a card, code or other credential. This page holds a tripod turnstile, swing barriers and a full height turnstile, with fixed bases, side fences, glass sets and turnstile doors, plus barrier gates, from makers including Hikvision, Dahua Technology and Cards-X.

Choosing Security Turnstiles

Choose the barrier type first, then the lane width, the credentials it must read and whether it stands indoors or outdoors.

Tripod turnstile

The Hikvision DS-K3G411CX-R/M-Dm55(O-STD)/868 has a bidirectional lane 550 mm wide and handles 30 to 60 persons per minute, depending on the passing rate and passing method. Its access controller is supplied, with a card capacity of 500,000, and the pedestal is SUS304 stainless steel with an MCBF of at least 3 million times. Its application environment is indoor. The DSK7F01KITP1200 is a 1200 x 115 x 980mm side fence for the Tripod Turnstile K3G501, in SUS304 and acrylic glass.

Swing barriers

The Hikvision DS-K3B530X-L/D, DS-K3B530X-M/D, DS-K3B530X-R/D and DS-K3B530X-R/MPg are DS-K3B530X series swing barriers. A person authenticates to pass through the lane by presenting an IC or ID card or scanning a QR code, and an LED light indicates the passing direction. A speaker and a remote control keyfob are optional extras. The DS-K3B530X-Dp110/2 is an acrylic glass set for a 1100mm width on DS-K3B530X series furniture.

Dahua access control barriers

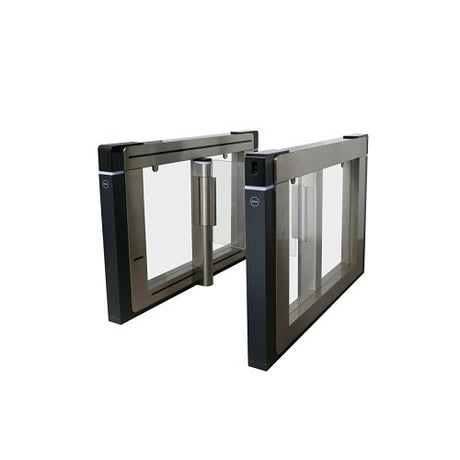

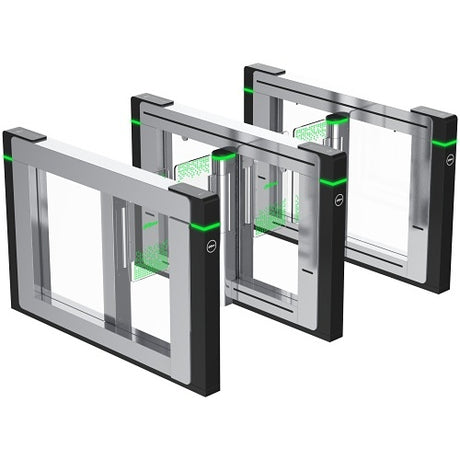

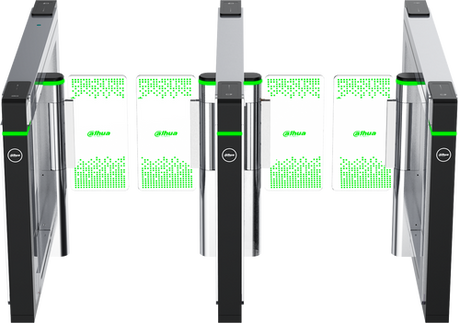

The Dahua DHI-ASGB810X-L, DHI-ASGB810X-R, DHI-ASGB820X-D and DHI-ASGB821X-D integrate an access control module, a turnstile control module and an alarm module, read IC cards and use RS-485 and RS-232 wiring. The DHI-ASGB821X-D has motors and barriers on both sides, 2 readers and 1 access control terminal with facial recognition.

ModelTypeCredentialsEnvironment
Hikvision DS-K3G411CX-R/M-Dm55(O-STD)/868Tripod turnstile, 550 mm laneEM or M1 cardIndoor
Hikvision DS-K3B530X-L/DSwing barrierIC or ID card, QR code
Dahua DHI-ASGB810X-RSwing turnstileIC card; fingerprint, QR code and face modules can be addedIndoor
Dahua DHI-ASGB821X-DMetal turnstile, 2 readersIC card; facial recognition terminalOutdoor

Fixed bases

The DS-K3B530X-BASE650-S suits a single lane with 2 pedestals, and the DS-K3B530X-BASE650-M extends to more lanes. The DS-K3B801-BASE1100-M, DS-K3B801-BASE1100-S, DS-K3B801-BASE750-S and DS-K3B801-BASE900-M combine SUS304, a patterned aluminium plate and a galvanization panel, with cable holes for wiring. On the DS-K3B601-BASE1100-SMAKE the base size varies according to the lane width, and the DS-K3G411-BASE550-F measures 1475x850x34mm.

Related categories

Add credentials from proximity cards and key fobs, see access control systems and biometric and RFID systems, or control vehicles with car park barriers.

Brands we stock in Security Turnstiles

CAME, Cards-X, Dahua Technology and Hikvision.

Frequently asked questions

How many people per minute can a tripod turnstile handle?

Tripod turnstile throughput varies by model, and it depends on how quickly people pass and how they authenticate. The Hikvision DS-K3G411CX-R/M-Dm55(O-STD)/868 Pro Tripod Turnstile handles 30 to 60 persons per minute through a bidirectional 550 mm lane, and it comes with an access controller supplied.

How does a swing barrier stop tailgating?

A swing barrier uses pairs of infrared light detectors across the lane to detect unauthorised entry or exit, and it cancels a passing permission that is not used in time. The Hikvision DS-K3B530X-L/D, DS-K3B530X-M/D and DS-K3B530X-R/D swing barriers have 14 pairs of IR light detectors with permission validation, anti-tailgating and a valid passing duration setting.

What turnstile access control credentials can be used?

A turnstile accepts the credentials its access control system reads, such as IC, ID, EM or M1 cards and QR codes. The Hikvision DS-K3G411CX-R/M-Dm55(O-STD)/868 tripod turnstile authenticates an EM card or an M1 card, the card type following the model name, and the DS-K3B530X-L/D swing barrier accepts an IC or ID card or a QR code.

What makes an outdoor turnstile suitable for outside?

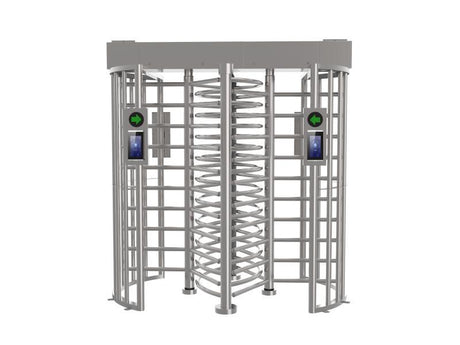

An outdoor turnstile is one rated for outdoor application environments, while indoor-rated models are for use inside. The Hikvision DS-K3H4420-120/Pg-Dm60 full height turnstile is for indoor and outdoor application environments and the DS-K3B530X-R/D swing barrier is for indoor or outdoor use, while the application environment of the DS-K3G411CX-R/M-Dm55(O-STD)/868 tripod turnstile is indoor.

How does a turnstile fire alarm input work?

A turnstile's fire alarm input lets the fire alarm open the lane, so people can evacuate freely when the alarm is triggered. On the Hikvision DS-K3G411CX-R/M-Dm55(O-STD)/868 tripod turnstile, which has 1 fire alarm input, the barrier drops automatically for emergency evacuation, and, separately, the DS-K3H4420-120/Pg-Dm60 full height turnstile unlocks its brake levers into free-passing mode when the power is cut off.
