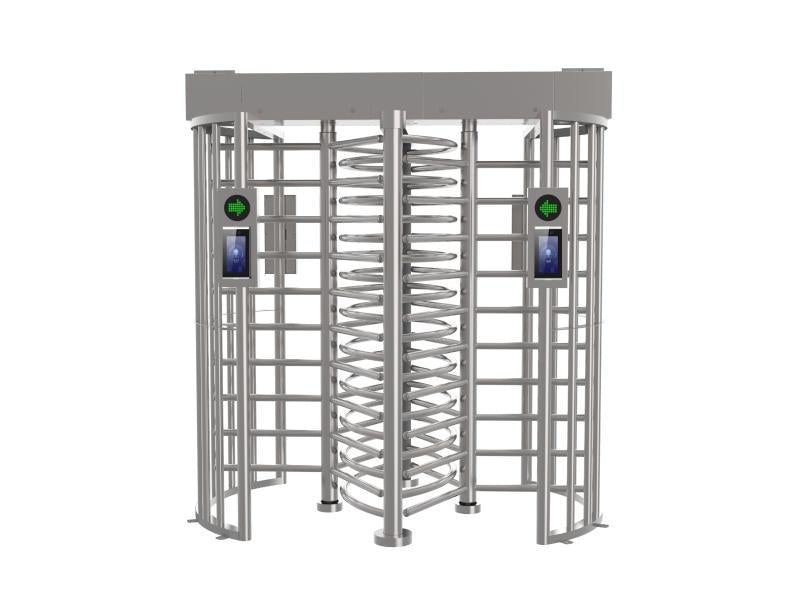

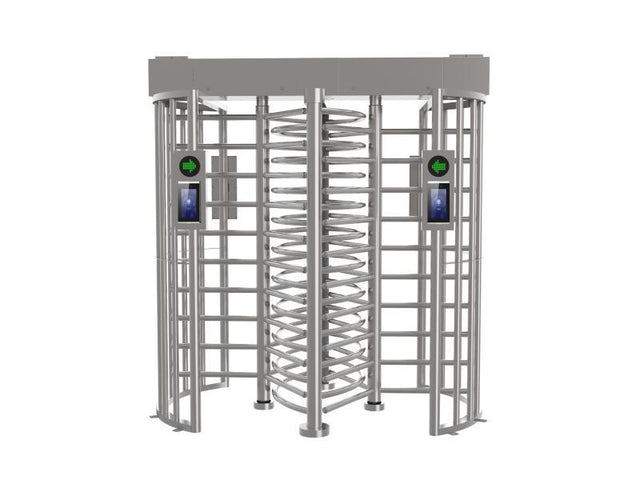

Hikvision DS-K3H4420-120/Pg-Dm60 Value Full Height Turnstile, 600mm Lane Width, Bi-directional
About this product
The Hikvision DS-K3H4420-120/Pg-Dm60 is a value full height turnstile with a 600mm lane width that supports bi-directional passing through, for indoor and outdoor application environments. When the power is cut off, it automatically unlocks the brake levers into a free-passing mode to facilitate the evacuation of people.
Key features
- Full height turnstile with a 600mm lane width
- Supports bi-directional passing through
- LED indicates the passing direction (forbidden or allowed)
- Brake levers unlock into a free-passing mode when the power is cut off, to facilitate the evacuation of people
- Valid passing duration setting cancels the passing permission if a person does not pass through within that time
- Throughput of more than 30 persons per minute (affected by passing rate and method)
- MCBF of more than 2 million times
- SUS304 stainless steel pedestal (1.2mm) with 1.0mm stainless steel pipe
Frequently asked questions
What happens to the DS-K3H4420-120/Pg-Dm60 in a power cut?
When the power is cut off, the system automatically unlocks the brake levers into a free-passing mode to facilitate the evacuation of people.
How many people can pass through per minute?
Throughput is more than 30 persons per minute. The actual throughput is affected by the person passing rate and passing method.
Can the turnstile be installed outdoors?
Yes. The application environment is indoor and outdoor, with a working temperature of -15℃ to 55℃ and working humidity of 10% to 90% (no condensing).
Does it allow passage in both directions?
Yes. It supports bi-directional passing through, and an LED indicates the passing direction (forbidden or allowed).
What power supply does it need?
100 to 240 VAC; 50 to 60 Hz.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-K3H4420-120/Pg-Dm60 |
| Manufacturer Part Number (MPN) | DS-K3H4420-120/Pg-Dm60 |
| Type | Value Full Height Turnstile |
| MCBF | More than 2 million times |
| Throughput | More than 30 persons per minute (actual throughput is affected by the person passing rate and passing method) |
| Lane Width | 600mm |
| Passing direction | Bi-directional |
| Pedestal Material | SUS304 stainless steel 1.2mm (0.05''); stainless steel pipe 1.0mm (0.04'') |
| Power Supply | 100 to 240 VAC; 50 to 60 Hz |
| Working Temperature | -15℃ to 55℃ (5℉ to 131℉) |
| Working Humidity | 10% to 90% (No Condensing) |
| Dimensions (without package) | 2100mm x 1270mm x 2230mm (82.7'' x 50'' x 87.8'') |
| Application Environment | Indoor and outdoor |
