Fused Spurs

A fused spur, or fused connection unit, gives a fixed appliance such as a boiler, extractor fan or outside light its own fused supply taken from a circuit, so the fuse protects that appliance's cable. This range is Knightsbridge 13A fused spur units, switched and unswitched, with neon indicators, flex outlets, double-pole switching, IP66 outdoor versions and grid fused modules, in finishes including white, brushed chrome and matt black.

Choosing Fused Spurs

Choose a fused spur by whether it needs a switch, how the appliance cable leaves it, where it is fitted and the finish of the accessories beside it.

Switched or unswitched

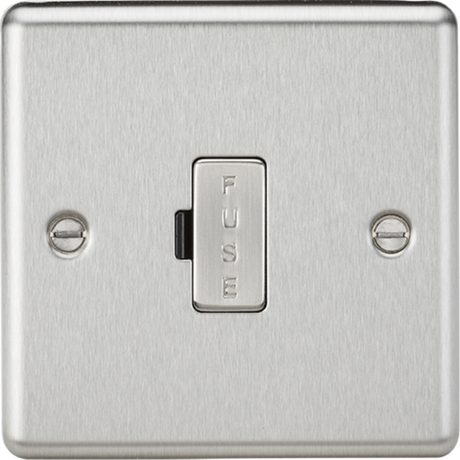

A switched fused spur lets the appliance be isolated at the unit, and double-pole versions such as the CL63BC break both live and neutral. An unswitched spur, such as the M6000F, gives a fused supply with no switch, for appliances that should not be turned off by accident.

Neon indicator and flex outlet

A neon indicator shows when the supply is on. A flex outlet lets the appliance cable leave through the front plate, as on the CL63FBC, rather than through the back box to a separate outlet plate.

Wet and outdoor positions

The OP63N and OP6N are IP66 weatherproof fused spurs in black polycarbonate, for walls outside the building or in wash-down areas.

TypeExampleFeature
Switched, neon, flex outletCL63FBCBrushed chrome
Switched, double poleCL63BCRounded edge
Unswitched, metal cladM6000NFNeon, flex outlet
WeatherproofOP63NIP66, neon
Part MPM6300Anthracite
Grid fused moduleGDM011ABAntique brass

Standards & compliance

BS 1363-4, the standard for 13A fused connection units, is cited on the product pages of most units here, while 12 CU and SN units, such as the CU6000 and SN6000, cite BS 1363-2. The PM6300 range is described as Part M compliant, for contrast and ease of use.

Finishes and plates

Units come in moulded white, curved edge, square edge, ultra low profile, screwless and metal clad styles, in finishes including brushed chrome, polished chrome, antique brass, matt black, gunmetal and anthracite, so a spur can match the switches and sockets already fitted.

Brands we stock in Fused Spurs

Knightsbridge.

The range is Knightsbridge throughout.

Related categories

Spurs mount in a box: see back boxes and pattress boxes for interior work and outdoor electrical boxes for external positions.

Frequently asked questions

What is a fused spur?

A fused spur, also called a fused connection unit, takes a supply from a circuit and passes it through a 13A-rated fuse holder to a single fixed appliance, such as a boiler or extractor fan. The fuse fitted is chosen to suit that appliance and its cable.

What is the difference between a switched and an unswitched fused spur?

A switched fused spur has a switch that isolates the appliance at the unit, useful for servicing. An unswitched spur, such as the Knightsbridge M6000F, gives a fused supply without a switch, for appliances that should stay on, such as an alarm panel or a fridge.

What does a flex outlet on a fused spur do?

It lets the appliance's flexible cable leave through a clamped hole in the front plate, so the flex connects straight into the spur. Knightsbridge flex outlet models such as the CL63FBC in brushed chrome and the M6000F metal clad unit use this arrangement.

Can I fit a fused spur outdoors?

Yes, with a weatherproof unit. The Knightsbridge OP63N switched fused spur with neon and the OP6N fused spur with neon are rated IP66 in black weatherproof polycarbonate. Indoor fused spurs are IP20 and should not be fitted outside or in wash-down areas.

What is a double-pole fused spur?

A double-pole switch breaks both the live and the neutral conductors when turned off, rather than the live only. Knightsbridge double-pole switched fused spurs include the CL63BC in brushed chrome with a rounded edge and the CL63FBC with a neon indicator and flex outlet.

Which standard do fused spurs meet?

Most Knightsbridge fused spur units here cite BS 1363-4, which covers 13A fused connection units, on their product pages. Twelve CU and SN units, such as the CU6000, CU6300 and SN6000, cite BS 1363-2 instead, so check the product page for the standard a unit names.

What does the neon on a fused spur show?

The neon indicator lights when the supply to the fused spur is on, so it is easy to see whether an appliance such as a boiler or extractor is powered. Knightsbridge makes switched fused spurs with and without a neon, in curved edge, screwless and metal clad styles.

What is a Part M fused spur?

It is a fused spur designed with the accessibility aims of Part M of the Building Regulations in mind, so it is easier to see and use. The Knightsbridge PM6300 switched fused spur is described as Part M compliant in an anthracite finish, and the PM6300N adds a neon indicator.
