Fire Door Holders & Retainers

A fire door retainer such as the Vimpex DH/S/24 keeps the fire door held by means of a metallic keeper plate and is de-energised as soon as the fire is detected, which releases the door. The Hoyles 1328-A01-RED Dorgard and the Cranford Controls 302-127 Agrippa door holder work without wiring: the Dorgard is battery powered and acoustically operated, and the Agrippa is powered by 2 x C cell batteries and learns the sounds of fire alarm warning devices.

Choosing Fire Door Holders & Retainers

Decide between an electromagnetic retainer interfaced with the fire alarm system and a battery-powered acoustic one, then check the holding force, the voltage and where the unit mounts.

Electromagnetic door holders

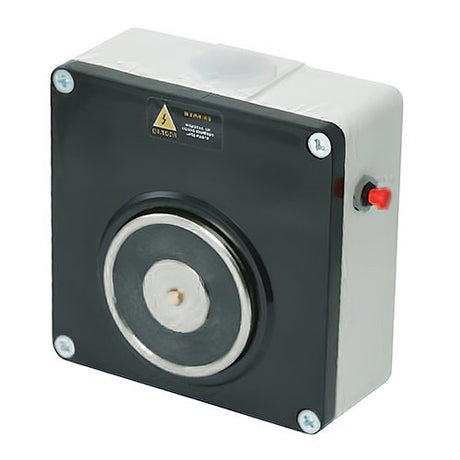

The Vimpex DH/S/24 and DH/S/230 have a 200N holding force as standard, a manual release button and a strengthened cast back box, and are approved to EN 1155. The C-TEC BF345/1H is a traditional wall-mounted, hard-wired door magnet that operates at 24V, and the C-TEC BF345-2H is a 240V a.c. electromagnetic door retainer. The Eaton 1320-24 is a 24V DC holder with a 40Kgf retaining force, a spring ejector and a push button release.

Addressable, weatherproof and explosion proof models

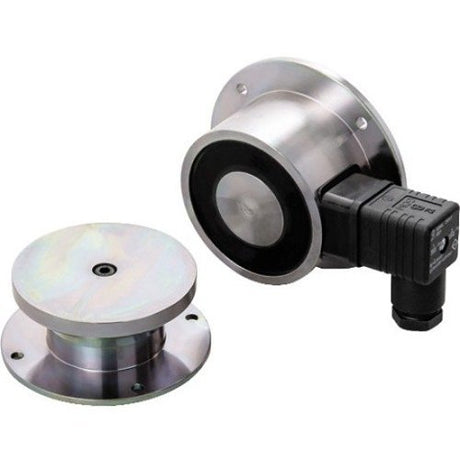

The Apollo Fire 55000-982APO is an XP95 device with a 200N holding force, designed for installation directly onto an addressable loop. The Cranford Controls 302-056 weatherproof door retainer has a 1200N holding force, IP65 water ingress protection and robust steel construction, plated in zinc. The Kidde FE590 is a surface mount, explosion proof door holder in a cast housing with a 588N holding force.

Acoustic, battery-powered retainers

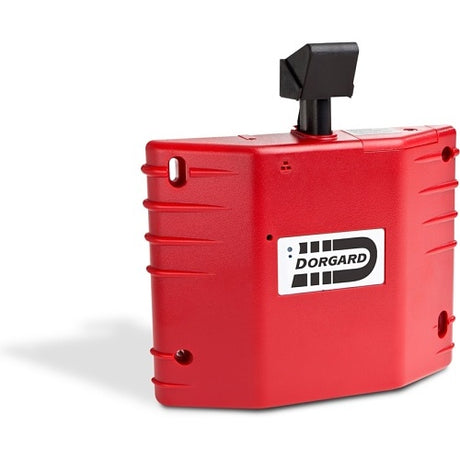

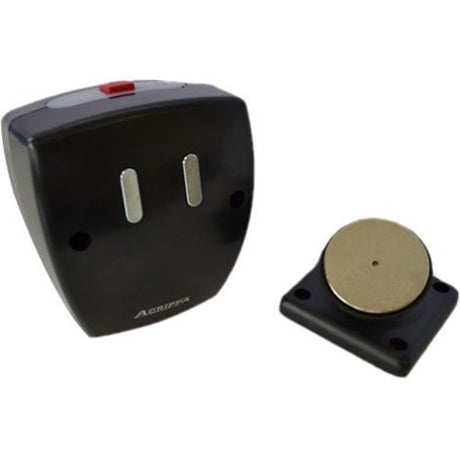

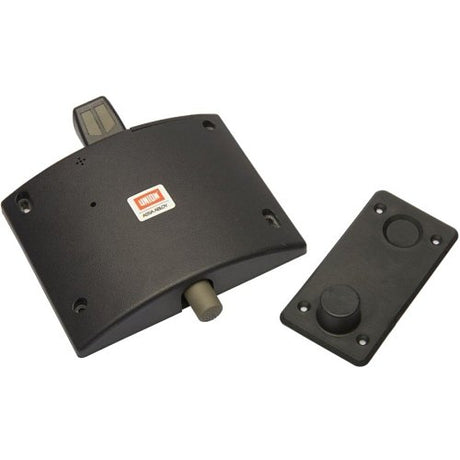

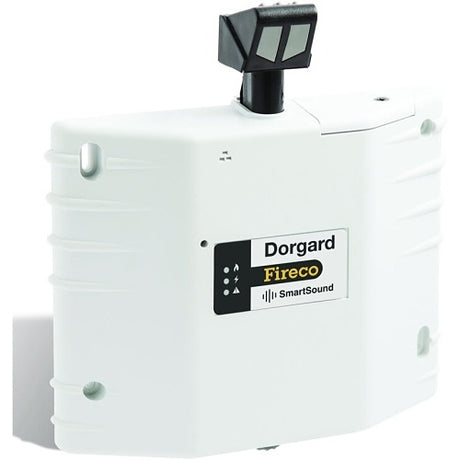

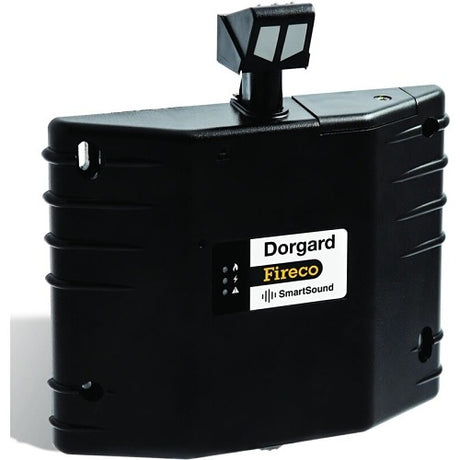

The Hoyles 1328-A01-RED Dorgard is a wireless device that is installed at the base of the fire door. The Hoyles DGSS-BL Dorgard SmartSound can distinguish between a fire alarm and common background noises, such as vacuum cleaners. The Cranford Controls 302-127 Agrippa door holder is installed at the top of the door. The Union J-8755A-BLACK DoorSense is powered by 2 x C cell alkaline batteries, which are included, and has a low battery indicator.

Keeper plates

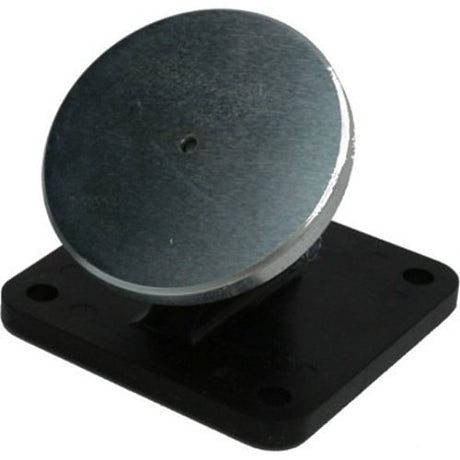

The Eaton 1351-CSA is an adjustable keeper plate for use as a spare part: the anchor plate is fitted with a shock absorber and can be set at an angle of 120°.

ModelTypeDetail
Vimpex DH/S/24Electromagnetic door holder200N holding force
Apollo Fire 55000-982APOAddressable loop door holder200N holding force
Kidde FE590Explosion proof door holder588N holding force
Cranford Controls 302-056Weatherproof door retainer1200N holding force
Hoyles 1328-A01-REDDorgard fire door retainerBattery powered
Cranford Controls 302-127Agrippa door holderBattery powered

Related categories

See door closers in door closers, power supplies in fire alarm power supplies, and the wider fire alarm systems range.

Brands we stock in Fire Door Holders & Retainers

Apollo Fire, C-TEC, Comelit PAC, CQR, Cranford Controls, Eaton, Hoyles, Kidde, Union and Vimpex.

Frequently asked questions

What is an acoustic fire door retainer?

An acoustic fire door retainer is a battery-powered unit that holds a fire door open and lets it close when it hears the fire alarm sound. Many learn the tone of the alarm, so everyday noise such as a vacuum cleaner does not release the door. They usually need no wiring to the fire panel, which suits retrofits. The range here includes sound-activated retainers from Cranford Controls, Hoyles and Union.

How does an auto release fire door retainer work?

An auto release fire door retainer holds a fire door open in normal use and lets go when the fire alarm activates, so the door closer shuts it. Hard-wired electromagnetic holders release when the alarm system cuts their power, while battery units respond to the alarm sound. Many also have a manual release button. The range here includes wall, floor and flush-mounted electromagnetic door holders.

What is a fire door retainer?

A fire door retainer legally holds a fire door open and releases it when the fire alarm operates, so the door closes to help stop smoke and fire spreading. They suit busy corridors in care homes, schools and hospitals, where wedging a door open would be unsafe. Look for EN 1155 approval on a hold-open device. The range here includes electromagnetic holders, acoustic retainers and keeper plates.
