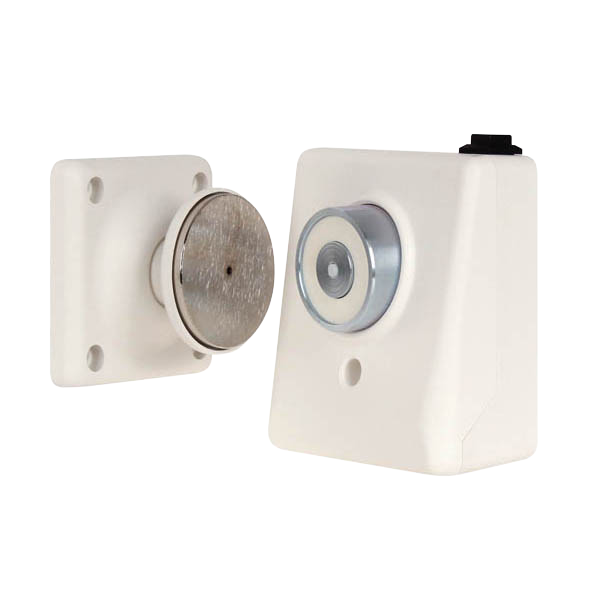

ESP DR916-24 24V DC Door Holder
£
38
16
(Incl. VAT)
3 Years Warranty
24V DC Door Holder
About this product
About this product
The ESP DR916-24, from ESP's Fire Protection range, is a 24V DC door holder with a maximum holding force of 200 N and zero residual force. It draws a maximum of 50mA.
Key features
- 24V DC door holder
- Maximum holding force 200 N
- Zero residual force
- Maximum current consumption 50mA
- Door retainer 95 x 87 x 46 mm; keeper plate 70 x 70 x 45 mm
- IP51
Frequently asked questions
What voltage does the DR916-24 need?
24 V DC, with a maximum current consumption of 50mA.
How strong is it?
It has a maximum holding force of 200 N.
Does it leave residual force?
No. It has zero residual force.
What size are the retainer and keeper plate?
The door retainer is 95 x 87 x 46 mm and the keeper plate 70 x 70 x 45 mm.
What is its IP rating?
IP51.
-
Download
- DR916-24 Tech Sheet
£
38
16
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
95 x 87 x 46 (Door Retainer)
Materials
Housing: Fire Resistant ABS
Keeper Plate Dimensions (mm)
70 x 70 x 45
Maximum Holding Force (N)
200
Weight (Kg)
0.36
Warranty (Years)
3
Operating Voltage (V DC)
24
Maximum Cable Size (mm²)
2.5
Maximum Current Consumption
50mA
Operating Temperature (°C)
0 to +40
Ingress Protection
IP51
Accessories
DR916-FMB: Floor mounting Bracket; DR916-KP: Spare Keeper Plate
Dimensions
Dimensions (mm)
95 x 87 x 46 (Door Retainer)
Specifications
| Dimensions (mm) | 95 x 87 x 46 (Door Retainer) |
|---|---|
| Materials | Housing: Fire Resistant ABS |
| Keeper Plate Dimensions (mm) | 70 x 70 x 45 |
| Maximum Holding Force (N) | 200 |
| Weight (Kg) | 0.36 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 24 |
| Maximum Cable Size (mm²) | 2.5 |
| Maximum Current Consumption | 50mA |
| Operating Temperature (°C) | 0 to +40 |
| Ingress Protection | IP51 |
| Accessories | DR916-FMB: Floor mounting Bracket; DR916-KP: Spare Keeper Plate |
Dimensions
| Dimensions (mm) | 95 x 87 x 46 (Door Retainer) |
|---|
24V DC Door Holder features
