Advanced MxPro Bezels

Match the bezel to the size of the panel enclosure first, then pick the finish.

What a semi-flush bezel does

A semi-flushing bezel frames a control panel whose backbox is part-recessed into the wall. The MXM-503, for MxPro 5 and MX-5000 panels, gives a neat recessed finish with a 30 mm picture-frame flange; its backbox recessing depth is typically around 105 mm, and it needs about 5 mm of extra clearance each side so the bezel fits to the backbox. It is supplied with a fitting kit.

Sizes

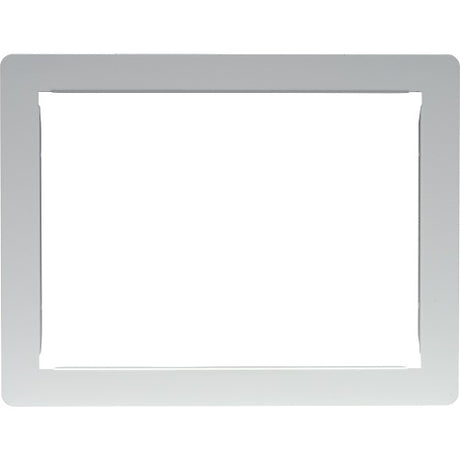

The MXM-501 suits the MxPro 5 small enclosure at about 345 mm high by 340 mm wide, with a 30 mm flange for control panels and 20 mm for repeaters, and comes with its fitting kit. The MXM-502 measures 345mm (H) x 430mm (W) for a medium enclosure, and the MXM-503 is 475 mm by 450 mm. The MXM-509, MXM-521 and MXM-536 are further RAL7035 semi-flushing bezels with a 30mm flange, so confirm the panel enclosure before choosing one of them.

Finishes

Standard MXM bezels are RAL7035 to match Advanced panels. The MXM-501-SSB is a brushed stainless steel bezel from the MxPro 5 range for small enclosures, giving a clean, stylish appearance.

EvacGo Gerda box

The SP-8629-BEZ is a RAL7035 bezel with a 30mm flange for the Gerda box of the Advanced EvacGo evacuation alert system, which is built on MxPro 5 panel technology for buildings containing flats and follows the recommendations of BS8629, the code of practice for evacuation alert systems used by fire and rescue services.
