Security Camera Housings
Security camera housings here include outdoor housings, heat-resistant housings and in-ceiling flush mounts. The Axis 03048-001 is a robust outdoor housing for AXIS Q17 Series block cameras and P13 Series box cameras, rated IP66, IP67 and IK10, with a camera heater and fan. The Hikvision DS-1331HZ-H is IP67 with a heater and fan, and the Hanwha SHD-1400FPW is a plenum rated flush mount.
Save £33.69
Haydon HAY-METRO-POE Cable Managed CCTV Housing with PoE Splitter
PoE Split£ 168 46RRP: £202.15Fast delivery Tomorrow, 29 Oct
Choosing Security Camera Housings
Choose by the camera the housing has to fit, then by the conditions on site and how the housing will be powered.
Housing ratings

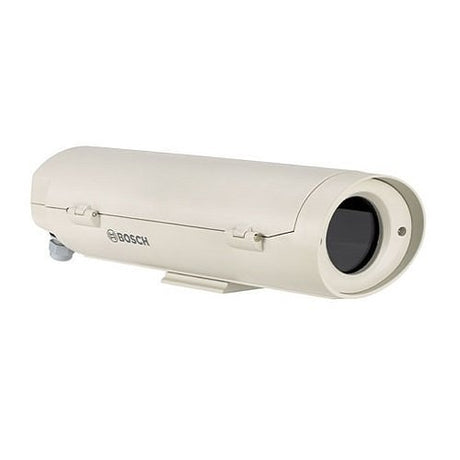

The Axis 5900-271 T93F10 Outdoor Housing supports IP66 and NEMA 4X ratings against the ingress of dust and water, and an IK10 rating for protection against impact and vandal acts. The Bosch F.01U.302.305 is IP66, IK10 and NEMA 4X rated and protects camera/lens combinations up to 262 mm in length. The Haydon HAYMETRO 12/24 is weather proof to IP67, with a side opening and a quick release removable top. The Hikvision DS-1332HZ is an indoor housing rated IP54.
Heaters, fans and wipers
The Axis 03048-001 has a built-in camera heater and fan, and includes a removable sunshield. The Hanwha SHB-4300H has a built-in de-mister, heater and fan. The Hikvision DS-1331HZ-W has a fan and wiper, and the Axis 03047-001 has a built-in wiper.
Power over Ethernet or AC/DC
The Axis 5900-281 needs 15 W PoE at a cold start in -40 °C. The i-PRO CKS605POE is an external housing with heater (PoE) for IP box cameras.
Hot locations and vehicles

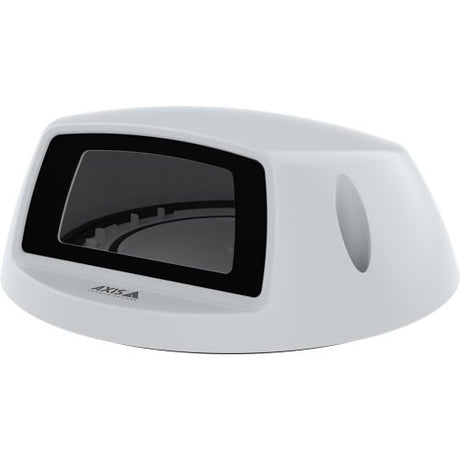

The Axis 02672-001 TP3826-E lets selected Axis onboard cameras be mounted on the outside of vehicles such as buses, trams and emergency vehicles, rated IP66/IP67, IP6K9K and IK09.
In-ceiling housings
The Hanwha SHD-1400FPW is a plenum rated flush mount for the QNV-C8083R and C9083R, and the Hanwha SHD1350FPW is an aluminium in-ceiling, flush-mount housing for Wisenet X-Plus modular cameras.
Covers and sunshades

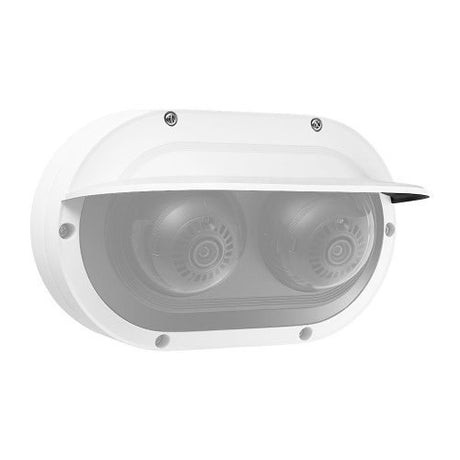

The Bosch F.01U.426.853 is a paintable cover that matches a FLEXIDOME multi 7000i camera to its surroundings. The Hanwha SBV215WCW weather cap shields the camera lens from sun glare and rain when wall mounted.
| Model | Rating | Climate control | Power |
|---|---|---|---|
| Axis 03048-001 | IP66, IP67, IK10 | Window heater, camera heater and fan | PoE+ or 10-28 V DC |
| Axis 5900-271 | IP66, IK10 | Camera heater powered by the housing | 20-24 V AC or 12-28 V DC |

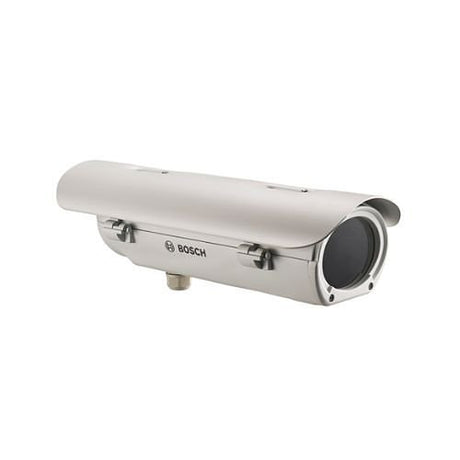

| Bosch F.01U.407.485 | IP67, IK10 | Heater and window defroster | PoE or 12 VDC |
| Hikvision DS-1331HZ-R | IP 66 | Refrigeration module | |
| Haydon HAYMETRO 12/24 | IP67 | 12/24VDC heater |
Related categories
See camera housing and mount accessories, camera mounting brackets and IP box cameras.
Brands we stock in Security Camera Housings
Arecont Vision, Axis Communications, Bosch, Hanwha Vision, Haydon, Hikvision and i-PRO.
Frequently asked questions
What does a security camera housing protect against?
A security camera housing protects the camera from dust, water and impact, and many add a heater or fan to keep it within its operating temperature. The Axis 5900-271 supports IP66 and NEMA 4X ratings against the ingress of dust and water, and IK10 against impact and vandal acts. The Axis 03048-001 withstands hurricane-force winds of more than 60m/s, and the Bosch F.01U.300.502 heater and fan keep the window clear in high humidity and icy conditions.
Which housings are rated for outdoor use?
Look for an IP rating against dust and water such as IP66 or IP67, the codes set by IEC 60529. Outdoor housings include the Hikvision DS-1331HZ-C and DS-1331HZ-CI, rated IP67 with a fan, and the Haydon HAYMETRO 12/24, weatherproof to IP67. The Hanwha SHB-9000H is an IP66 outdoor housing for the TNB-9000 box camera, and the Hanwha SHB-4301H2 is an IP66 aluminium housing with a built-in fan and heater.
What does a heated camera housing do?
It warms the camera and window so the housing stays within its operating temperature and the window stays clear in cold, humid or icy weather. The Axis 03048-001 has a carbon nanotube window heater and a built-in camera heater and fan, with Arctic Temperature Control for start-up and operating in -40°C to +60°C. The Haydon HAYMETRO 12/24 has a dual-voltage 12/24VDC heater, and the Bosch F.01U.407.485 has a heater and window defroster.
Which housings take their power over Ethernet?
PoE powered housings take their power over the Ethernet cable, so the camera position needs a single cable for power and data. They include the Bosch F.01U.300.502, with a PoE power input for single cable installation, and the Bosch F.01U.407.485, which takes PoE or a separate 12 VDC supply. The Axis 03048-001 is powered by IEEE 802.3af Type2 Class 4 (PoE+) or 10-28 V DC, and the i-PRO CPR705POE includes Smart PoE for power and data transmission.
What is a heat resistant camera housing?
A heat resistant camera housing cools the camera in high temperature places, for example with a built-in refrigeration module or a fan. The Hikvision DS-1331HZ-R is a heat-resistant outdoor housing for high temperature places, with a built-in refrigeration module of 20,000 hours life span and a stainless steel dual-hasp design up to IP 66. The Hikvision DS-1331HZ-C, DS-1331HZ-CI and DS-1331HZ-W have a fan and suit a high temperature environment.
