Long Range RFID Readers

Long range RFID readers identify a card, tag or vehicle at a distance, so the user does not have to present a card close to the reader. Types include UHF readers for vehicle identification and car park access, hands-free readers for people, and the tags and receivers that work with them, from brands including CDVI and Nedap. The CDVI A6U48, for example, identifies people and vehicles at up to 6 metres.

Choosing Long Range RFID Readers

Choose by read range first, then by the credential the reader reads and how it connects to the door or gate controller.

UHF readers

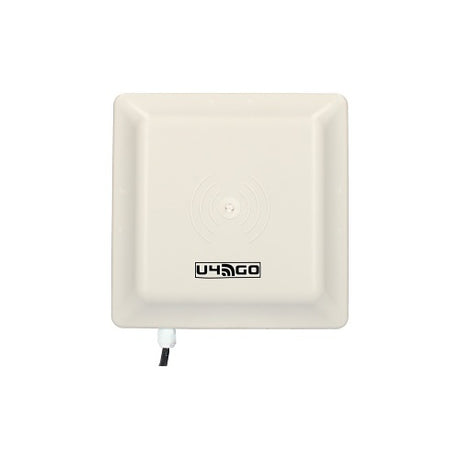

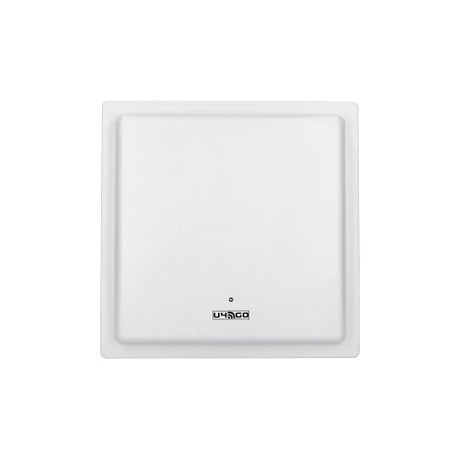

The CDVI A6U48 is a gate access automation system supplied with an interface board, power supply, pole fixing bracket (KFMA6U) and built-in receiver (RXU4GO128). The CDVI A10U48-NR long range U4GO kit operates at a frequency of 865MHz. The Acre N54504-Z106-A100 is an EPC Gen 2 (ISO 18000-63) compliant RFID reader with an integrated antenna, designed for outdoor use and rated IP66. The CIE Group ACR-CRP12 reads cards or key fobs with 902-928 MHz and 865-868 MHz UHF technology and connects to controllers via Wiegand.

Hands-free readers

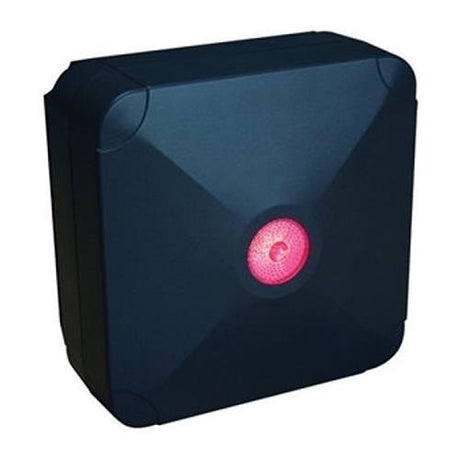

The CDVI DTRR1434R is a self-contained standalone reader/controller with capacity for up to 30 users, an integral lock relay and exit button input. The Paxton 313-110 has a built-in hands-free interface that removes the need to lay ground loops, and it is used with Switch2 or Net2.

Key fob receivers

The TDSi 5012-0200 uses two-button key-fobs that transmit a unique and highly secure encrypted code to a receiving unit, for vehicular control such as a car park. The CDVI RXU4GO128 is the receiver unit for the U4GO system: it works with AES128 encryption and frequency 433.92MHz and can be mounted outdoors (IP55).

Tags and boosters

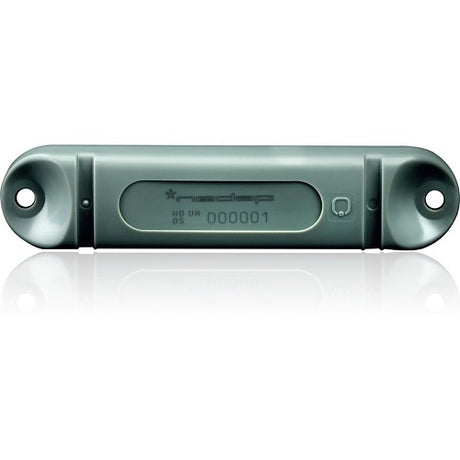

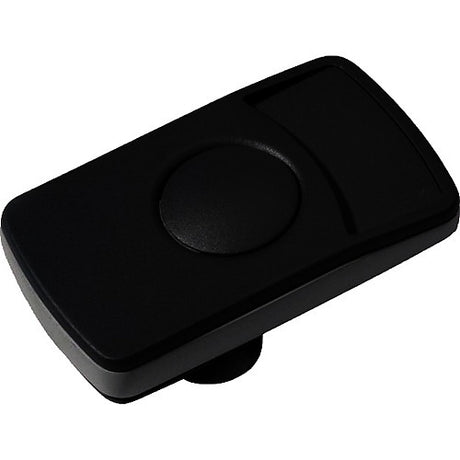

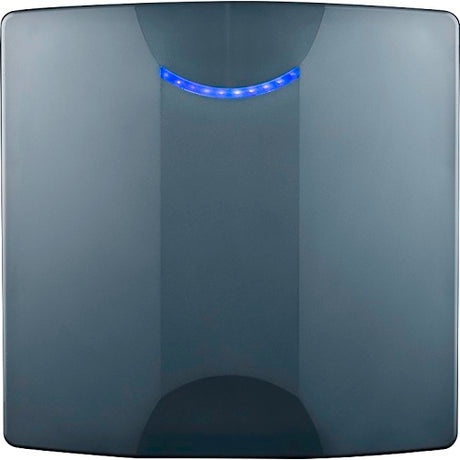

The Nedap 9219641 is a passive UHF tag designed for mounting on exterior metal surfaces. The Nedap 9948538 is a vehicle-mounted booster for proximity cards with easy windscreen mounting by suction pad. The Nedap 9217363 supports EPC Gen 2 passive UHF tags and Power over Ethernet plus (PoE+).

ModelRead rangeConnection
Paxton 313-110Max 5m with hands-free tokensSwitch2 or Net2
CDVI A6U48Up to 6mStandalone or Wiegand
CDVI A10U48-NRUp to 10mStandalone or Wiegand
CIE Group ACR-CRP1210mWiegand 26/34
CDVI DTRR1434RUp to 15mStandalone reader/controller

Related categories

See more readers in proximity card readers, credentials in key fobs and proximity cards, and barriers in car park barriers.

Brands we stock in Long Range RFID Readers

Acre, CDVI, CIE Group, Nedap, Paxton Access and TDSi.

Frequently asked questions

How does a long range RFID reader work for a parking system?

A parking system reader picks up a tag in the vehicle as it approaches and signals the access controller to open the barrier. UHF readers suit car parks because they read at a distance, so the driver does not have to stop and hold a card to the reader. Some readers connect over Wiegand to an existing controller. The range here includes UHF readers, a vehicle tag and receivers.

What is a long range RFID reader?

A long range RFID reader is an access control reader that identifies a card, tag or vehicle at a distance, without a card held close to it. Many use UHF radio, which lets them read a tag through a car windscreen or a badge carried by someone walking past. They usually wire to a door or barrier controller. The range here includes UHF readers and an integrated reader.
