PoE Injectors & Splitters

PoE injectors and splitters here add Power over Ethernet to a link or take it off again. They include single-port injectors that power one device from a non-PoE switch, multi-port industrial injectors, splitters that give a non-PoE device DC power, active-to-passive converters, two-over-one multiplexers and battery-powered injectors for installers. Examples include the TRENDnet TPE-115GI PoE+ injector, the Veracity VOR-OS-90 at 90 W and the Dahua DH-TAS100 splitter.

Choosing PoE Injectors & Splitters

Match the injector to the power class the device needs and to the network speed, then choose how and where it will be mounted.

Power class

The TRENDnet TPE-219GI shows the three classes: it supplies PoE (15.4W), PoE+ (30W) or PoE++ (90W). A PoE+ injector such as the Veracity VOR-OS-30-UK supplies up to 30 W for IP cameras and access points. Higher-power cameras need more: the Verint PS60POE gives 60W and is recommended for outdoor PTZ cameras, and the Dahua DH-TAM01GT01GT-75 is a 75W midspan for Hi-PoE speed domes.

Network speed

Gigabit injectors such as the TRENDnet TPE-115GI suit gigabit links, and faster ports need a matching injector: the TPE-219GI passes 2.5G, and the TPE-318GI is 10GBASE-T compliant over CAT6a or better cabling. Devices that take 24V passive PoE need their own injector, such as the Ubiquiti POE-24-12W-G for Ubiquiti 24V devices or the Ruijie RP028-2400500 for Reyee bridges.

Industrial and multi-port

The AMG Systems AMG150-1GBT-P90 has a compact DIN rail or wall mount housing for a wide industrial operating temperature range. The AMG150-1GBT-P90-LV boosts a 9-36VDC or 20-60VDC input to a regulated 53VDC, and the AMG155-1GBT-P90 has an integrated mains power supply. The AMG150-4GBT-4GAT-P480 is an 8 port injector rated −40°C to +75°C.

Splitters and multiplexers

A splitter takes PoE in and gives a non-PoE device separate data and DC power. The Dahua DH-TAS100 gives 12VDC from an IEEE802.3af source, and the TRENDnet TI-SG704 splits a 10G 90W PoE++ signal with an adjustable output for 12V, 16V, 24V or 48V devices. To run two IP cameras over one Cat5/6 cable, use a multiplexer such as the Haydon HAY-POE-MULTI.

TypeExampleOutputData
PoE+ injectorTPE-115GI30WGigabit
PoE++ injectorVOR-OS-9090 WGigabit
10G PoE++ injectorTPE-318GI90W10GBASE-T
Industrial 8 port injectorAMG150-4GBT-4GAT-P48060/90W and 30W ports10/100/1000
24V passive injectorPOE-24-12W-G24V DC, 0.5AGigabit
PoE splitterDH-TAS10012 VDC10/100Mbps
Battery injectorVAD-PSP30 W10/100Base-TX

Related categories

For several devices use PoE switches or the full network switches and PoE solutions range, and power wireless access points over PoE. Runs beyond standard Ethernet distance are covered in PoE extenders, and PoE standards and wattage in our Help & Support guides.

Brands we stock in PoE Injectors & Splitters

AMG Systems, Axis Communications, Bosch, Comnet, D-Link, Dahua Technology, Folk Safe, Hanwha Vision, Haydon, Nitek, NVT Phybridge, Redvision, Ruijie, TRENDnet, Ubiquiti, Veracity, Verint and Vigitron.

Frequently asked questions

When should I use a PoE injector instead of a PoE switch?

Use an injector to power one device from a switch that has no PoE, and a PoE switch when several devices need power. The TRENDnet TPE-315GI, for example, converts a non-PoE port to a PoE+ port, and the TPE-319GI connects to a non-PoE switch and sends data and power to a device up to 100 meters away over cat6a or better cabling.

What does a PoE splitter do?

It separates PoE into data and DC power for a device that has no PoE input. The Dahua DH-TAS100 gives 12VDC from an IEEE802.3af supply, and the TRENDnet TI-SG704 splits a 90W PoE++ signal into power and data, with an adjustable output for 12V, 16V, 24V or 48V devices and wall or DIN-Rail mounting options.

Do Ubiquiti and Reyee devices need a passive PoE injector?

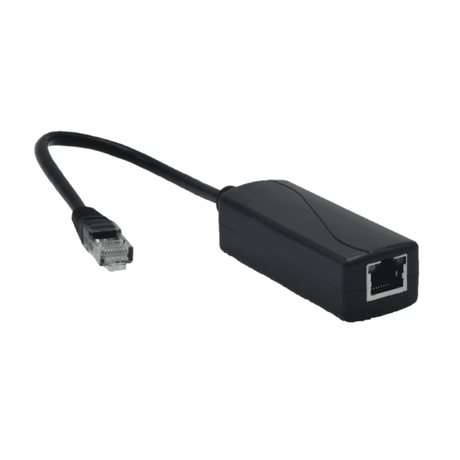

Some do: a device that takes 24V passive PoE needs a passive injector rather than an 802.3af/at one. The Ubiquiti POE-24-12W-G is made for Ubiquiti 24V PoE devices, and the Ruijie RP028-2400500 gives 24 V DC at 0.5 A for Reyee bridges such as the RG-EST310 V2. The AMG9CLE-1PO-1PA converts standard PoE to 24 V DC passive PoE.

Which injector do I need for a PTZ camera?

Use a high-power injector sized to the camera. The Verint PS60POE is a 60W injector recommended for outdoor PTZ cameras, the Dahua DH-TAM01GT01GT-75 supplies 75W for Hi-PoE speed domes, and the Veracity VOR-OS-90 supplies up to 90 W under 802.3bt for high-power CCTV and PTZ cameras.

How can I power a camera during installation without mains?

Use a battery-powered PoE injector. The Veracity POINTSOURCE Plus VAD-PSP supplies 802.3af/at PoE of up to 30 W from a removable 12 V sealed lead-acid battery module, with an uplink port for a laptop. The POINTSOURCE Wireless VAD-PSW adds a built-in wireless access point, so a phone or tablet can view live video for focusing.

Is there a PoE injector for a DIN rail or roadside cabinet?

Yes, industrial injectors such as the Hanwha Vision SNI-1PI are DIN rail mountable. The SNI-1PI is compact enough for camera poles and roadside cabinets, and the Comnet CN1IPSBT-DC is an environmentally hardened 802.3bt Type 4 injector that runs from 52 to 56 VDC. The AMG150-1GAT-P30 comes in a DIN rail or wall mount housing.
