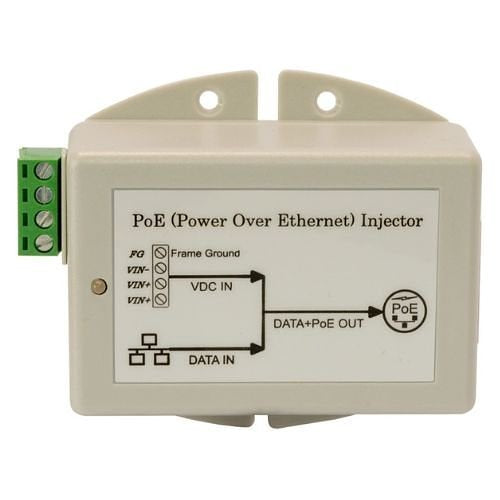

Comnet NWPM4848GE PoE injector, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Comnet NWPM4848GE is a PoE injector from the NWPM(XX)48GE range.
The Comnet NWPM(XX)48GE DC-to-DC Power over Ethernet (PoE/PoE+) midspan injection modules inject up to 56VDC at 0.625A to any network cable. These DC to DC injection modules are ideal for applications that require 802.3af and 802.3at Power over Ethernet from a 12, 24, or 48 VDC voltage source. Operating power and 10/100/1000T(X) Ethernet data are easily combined on one cable for solutions that require up to 56VDC to the Ethernet cable.
The Power Injector has two isolated inputs for connecting 2 power sources. Transmission distances of up to 100 meters are supported. The units have power outputs up to 35W on Ethernet pins 4,5(V+) and 7,8(V-).
These DC-to-DC midspan injectors provide line and powered device overvoltage and short circuit protection. Ideally suited for battery powered systems where AC power is not available. The NWP(XX)48GE is a true plug-and-play product requiring no user configuration or other setup.
Key features
- Easily combines operating power and 10/100/1000T(X) Ethernet data to one network cable
- Housed in a compact, rugged, light-weight package
- Internal/self-contained high-reliability power supply – a screw terminal block connects directly to the power source for permanent, reliable, and maintenance-free operation
- Environmentally hardened for deployment in difficult unconditioned out-of-plant and roadside installations
- Ease of installation and true plug-and-play operation; no user configuration or settings required
- Designed for surface, wall, or DIN rail mount installation
If you are matching this to an existing installation, work from the NWPM4848GE part number rather than the description.
Specifications
Environmental conditions
Interfaces/ports
Network & communication
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Comnet |
|---|---|
| Manufacturer Part Number | NWPM4848GE |
| Product Series | NWPM(XX)48GE |
| Product Type | PoE Injector |
Environmental conditions
| Operating Relative Humidity (H-H) | 5-90% |
|---|---|
| Operating Temperature (T-T) | -25-65°C |
| Storage Temperature (T-T) | -40-80°C |
Interfaces/ports
| Input Ports | 10/100/1000Base-T |
|---|---|
| Output Ports | PoE |
Network & communication
| Networking Standards | IEEE 802.3af, IEEE 802.3at |
|---|
Physical characteristics
| Colour | Silver |
|---|
Power description
| Input Voltage | 48V DC |
|---|---|
| Maximum Input Current | 0.62A |
| Maximum Output Current | 350.0mA |
| Maximum Output Power | 35.00W |
| Maximum Output Voltage | 48V |
| Power over Ethernet (PoE) | Yes |
Product information
| Mount Type | DIN Rail Mount, Wall Mount |
|---|---|
| Protection Type | Short Circuit Protection |
Miscellaneous
| Compatibility | IP CCTV Camera Security and Surveillance Systems Voice over IP (VoIP) Telephony Networks Wireless LAN Access Points IP Networks |
|---|
Attributes
| Compatibility | IP CCTV Camera; Security and Surveillance Systems; Voice over IP (VoIP) Telephony Networks; Wireless LAN Access Points; IP Networks |
|---|---|
| Input Voltage | 48V DC |
| Maximum Output Power | 35.00W |
| Package Contents | 1 x DIN Rail Adapter; 2 x Wall Mounting Bracket |
