Request to Exit Sensors

Request to exit sensors and buttons let people leave through a door that access control keeps locked: a press, a touch or a wave of the hand signals the door to release. The collection includes touch-free infrared exit buttons, push buttons, a wireless exit transmitter and T.REX request-to-exit detectors, from makers such as CDVI, Kantech, STP, Elmdene, Hikvision, RGL Electronics and Safety Technology International.

Choosing Request to Exit Sensors

A request to exit device is a button, sensor or detector that tells an access control system someone wants to leave, so the door releases; the Kantech T.REX-LT, for example, is a request-to-exit detector for access control applications. Choose between a touch-free sensor, a push button and a detector by how people should leave, then check wiring, power and mounting.

Touch-free exit buttons

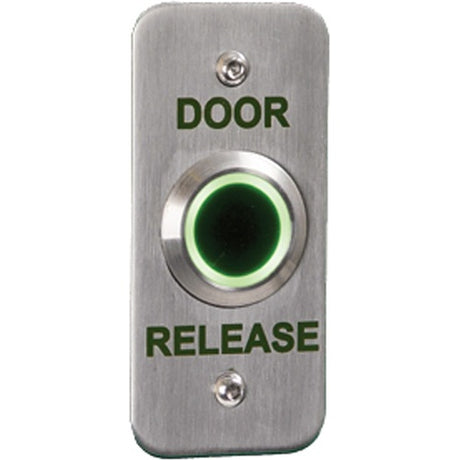

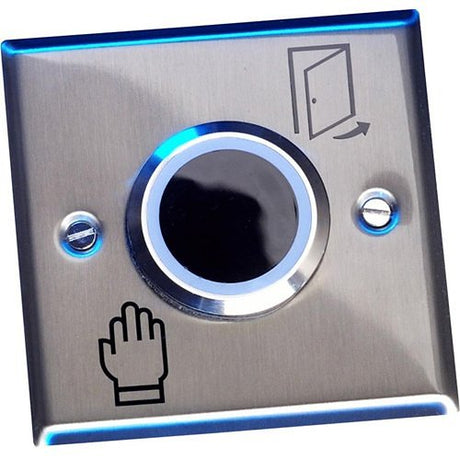

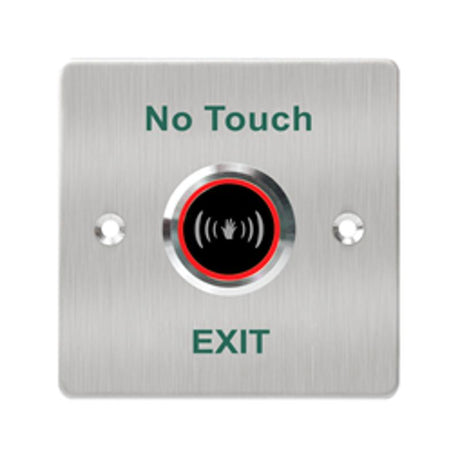

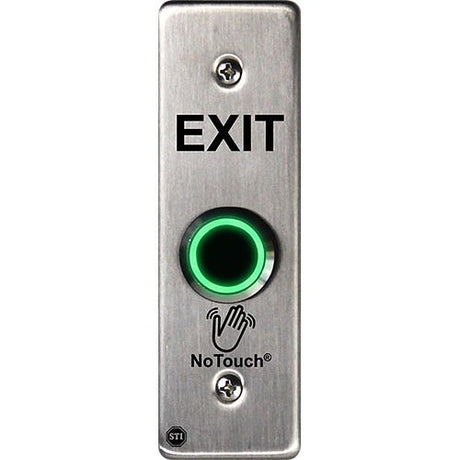

Infrared exit buttons release the door when a hand comes close. The Elmdene AMS-EBIR3-RG runs on 12-24V, has an adjustable range and latch time, and its red LED turns green when activated. The STP STP-NT-IP68-B has an adjustable proximity range of 3cm to 15cm, a time delay of 0-30 seconds and an IP68 rating, and the Safety Technology International NT-SS001-EN uses NoTouch technology, so a wave of the hand unlatches the door. The RGL Electronics K-EB/AP/TF-DR is a narrow touch-free door release button with a 38mm sensor and a built-in time delay, and the Hikvision DS-K7P03A suits narrow doorframes and runs on 12-24 VDC.

Push buttons and wireless exit

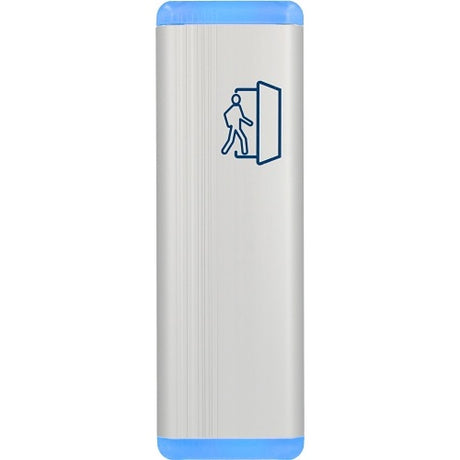

The CDVI PB2LED is a large 2-relay push button in aluminium with illuminated reminders, and the CDVI PBRF is a 433.92 MHz radio push button. The CDVI SENSRAD is a touch-sensitive wireless transmitter with a built-in battery: a touch on its face sends the radio signal, a beep confirms it, and its transmission range is 200-400m in open space.

Request-to-exit detectors

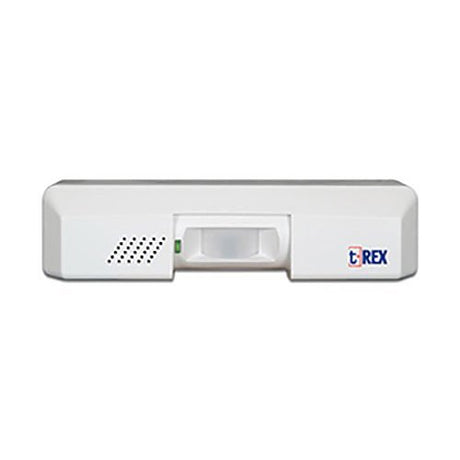

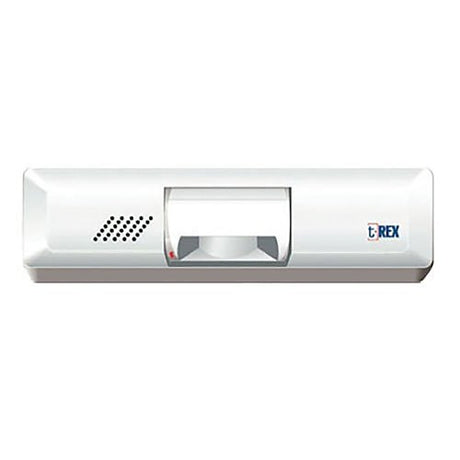

The Kantech T.REX-LT and T.REX-XL provide exit detection and door surveillance for access control applications. Their detection zone can be targeted horizontally and vertically, so it does not reach the floor along the doorjamb, where an object slid under the door could otherwise trigger it.

Devices at a glance

ModelMakerTypeKey detail
AMS-EBIR3-RGElmdeneContactless exit button12-24V, adjustable range
STP-NT-IP68-BSTPTouch-free exit deviceIP68, 3cm to 15cm range
DS-K7P03AHikvisionTouchless push button12-24 VDC, narrow doorframes
PB2LEDCDVIPush button2 relays, illuminated
SENSRADCDVIWireless exit transmitterBuilt-in battery
T.REX-LTKantechRequest-to-exit detectorTargeted detection zone

Related pages

See exit buttons and door release and access control systems.

Brands we stock in Request to Exit Sensors

3E Security, Abloy, CDVI, Dahua Technology, Elmdene, Hikvision, Hoyles, Kantech, RGL Electronics, Safety Technology International and STP.

Frequently asked questions

What is a request-to-exit button?

A request-to-exit button is a push or touch-free button on the secure side of a door that tells the access controller to release the lock so someone can leave. It is often fitted alongside an emergency door release, so people can still get out if the button or controller fails. Push buttons and touch-free sensors are common versions.

How does a request to exit motion sensor work?

A request to exit motion sensor watches the area in front of a secured door and signals the access control system when someone approaches to leave. The lock then releases without a button press. Its detection area can be aimed to avoid false releases. The range here includes request-to-exit detectors and touch-free exit buttons.
