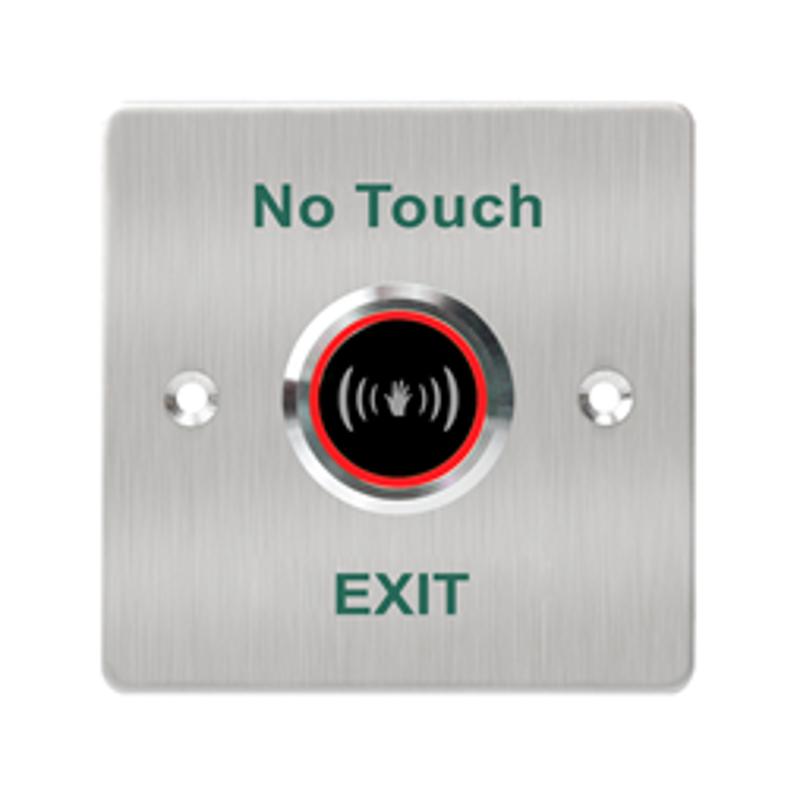

Hikvision DS-K7P03A Touchless Push Button, Stainless Steel Panel, 12-24 VDC
About this product
The Hikvision DS-K7P03A is a touchless push button for doors, suited to all kinds of narrow doorframes, with a stainless steel panel and an LED indicator. It gives a NO/NC/COM contact signal output, runs on 12-24 VDC, 1 A, and has already passed a 1 million times aging test.
Key features
- Touchless push button
- Stainless steel panel with LED indicator
- NO/NC/COM contact signal output
- 12-24 VDC, 1 A power supply
- Fits all kinds of narrow doorframes
- Already passed 1 million times aging test
- Compact 86 mm × 86 mm × 25 mm size
Frequently asked questions
What power does the DS-K7P03A need?
It runs on a 12-24 VDC, 1 A power supply.
What output does the button give?
It has a NO/NC/COM contact signal output.
Will it fit a narrow door frame?
Yes. Hikvision lists the door type as all kinds of narrow doorframes, and the button measures 86 mm × 86 mm × 25 mm.
What temperature and humidity can it work in?
It works at -20 °C to 50 °C (-4 °F to 122 °F) and 0 % to 95 % humidity (no condensing).
How durable is the button?
It has already passed a 1 million times aging test, and the panel is stainless steel.
Specifications
Specifications
| Brand | Hikvision |
|---|---|
| Model | DS-K7P03A |
| Manufacturer Part Number (MPN) | DS-K7P03A |
| Power Supply | 12-24 VDC, 1 A |
| Signal Output | NO/NC/COM contact |
| Indicator | LED Indicator |
| Material | Panel: stainless steel |
| Door Type | All kinds of narrow doorframes |
| Working Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Working Humidity | 0 % to 95 % (no condensing) |
| Dimensions | 86 mm × 86 mm × 25 mm (3.39" × 3.39" × 1.01") |
| Net weight | 0.108 kg (0.238 lb) |
| Rough weight | 0.14 kg (0.31 lb) |
| Aging Test | Already passed 1 million times aging test |
