Wired CCTV Cameras

Wired CCTV cameras here are IP network cameras that connect to a recorder or switch by an Ethernet cable, which also carries their power by PoE. The range covers Hikvision, HiLook, HDview and TP-Link VIGI bullet, dome, turret and PTZ cameras from 2MP to 12MP, with ColorVu full-colour and infrared night vision, plus fisheye, panoramic, covert pinhole and ANPR models and RekorHD four-camera kits.

Choosing Wired CCTV Cameras

Choose a wired camera by the view it has to cover, the detail you need at night, and how it will be powered and recorded.

Camera styles

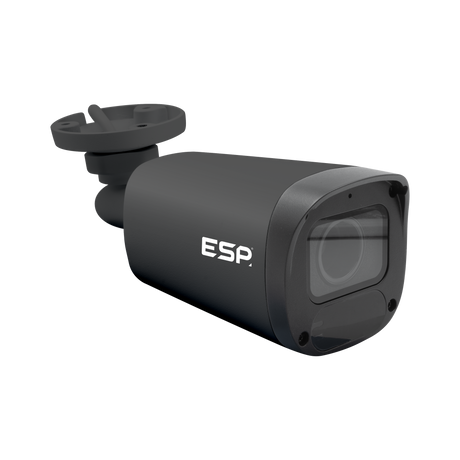

Bullet cameras point visibly along a boundary or driveway, and varifocal models such as the HDview H512VBG (2.8-12mm) let you set the field of view on site. Domes and turrets suit eaves and ceilings: the DS-2CD2183G2-IU is a 4K vandal dome rated IP67. PTZ cameras such as the DS-2DE5225W-AE (T5) pan, tilt and zoom 25× to follow activity across a site.

Night vision

Infrared cameras switch to black and white after dark, like the DS-2CD3T46G2-4ISY with 90 m of IR. ColorVu cameras such as the DS-2CD2347G3-LI2UY use an F1.0 lens and white light to keep colour at night, and Smart Hybrid Light models such as the DS-2CD2T87G3-LIY combine white light and IR with selectable modes, with white light reaching 60 m.

Power and recording

Every camera on this page lists PoE, so one cable from an NVR or PoE switch carries video and power. Some also take a 12V DC input, such as the DS-2CD2566G2-IS(4mm)(C), and larger PTZs such as the DS-2SE7C432MW-AEB(14F1)(P3) run on Hi-PoE or 24VAC. Record to a network video recorder, or to a microSD card on models such as the DS-2CD2E43G2-U.

TypeExampleResolution and lensKey feature
Varifocal bulletHDview H512VBG5MP, 2.8-12mmGrey housing
ColorVu bulletHikvision DS-2CD2T87G3-LIY8MP, 2.8 mmSmart Hybrid Light
Vandal domeHikvision DS-2CD2183G2-IU8MP 4K, 2.8mmAcuSense, IP67
TurretHiLook IPC-T289H-MU8MP, 2.8mmColorVu, IP67
PTZHikvision DS-2DE7A412MCG-EB4MP, 12× opticalColorVu Pro, Hi-PoE
FisheyeHikvision DS-2CD2955G0-ISU5MP, 1.05mm180° view

Brands we stock in Wired CCTV Cameras

ESP, Hikvision, HiLook and TP-Link.

Hikvision makes most of the cameras here, with HDview and RekorHD models from ESP.

Related categories

Record with network video recorders (NVRs), power cameras from PoE switches, compare styles in bullet cameras, dome cameras and turret cameras, or browse the wider CCTV cameras range and security and surveillance. See also Thermal Cameras and Hikvision - Indoor Cameras.

Frequently asked questions

How does a wired CCTV system work?

Wired cameras connect by network cable to a network video recorder (NVR) or PoE switch, which supplies their power, and the NVR records the video to a hard drive. Linking the NVR to your router lets you watch live or recorded footage on a monitor or phone app. Cameras can be added later if the recorder has spare channels. The range here includes IP cameras and PoE recorders.

Do wired CCTV cameras need a separate power supply?

No, wired IP cameras usually take power over the same network cable using PoE, supplied by an NVR with PoE ports or a PoE switch. Some cameras also accept a DC supply, and larger PTZ cameras may need Hi-PoE or a dedicated supply. Check the camera's power draw against the PoE budget. The range here includes PoE cameras and Hi-PoE PTZs.

What is a wired CCTV camera kit?

A wired CCTV camera kit is a matched set of IP cameras and a network video recorder, usually with a hard drive, cables and a power supply for the recorder. The cameras plug into PoE ports on the recorder, so set-up is simpler than buying parts separately. Kits suit homes and small businesses. The range here includes four-camera bullet and turret kits.

Why choose hard wired security cameras over wireless?

Hard wired security cameras give a steadier connection than Wi-Fi, with no batteries to charge and no interference from walls or neighbouring networks. One network cable carries power and video, and footage can record around the clock to an NVR. Wireless cameras are quicker to fit where running cable is hard. The range here includes wired cameras for continuous recording.

What is a PoE camera?

A PoE camera is an IP camera that receives power and sends video over one network cable, using Power over Ethernet. This removes the need for a mains socket at the camera position and keeps installation tidy. The power comes from a PoE switch or NVR, which needs enough power budget for the cameras connected. The range here includes PoE cameras with infrared or ColorVu night vision.
