Fike Sounders

Fike sounders give the audible warning in a fire alarm system, and some add a strobe for a visual one. This page covers TWINFLEX two-wire sounders such as the Hatari and Hipoint, Sita sounders with an inbuilt short circuit isolator, a Sita sounder/strobe for the loop, NS100 conventional sounders and NSF100 sounder strobes, and the TwinflexPro² 604-0008 eight-zone kit with seven Multipoint ASD detectors.

Choosing Fike Sounders

Match the sounder to the panel and wiring it will join, then choose the output and whether a strobe is needed.

TWINFLEX two-wire sounders

The Hatari 302-0002 is a white standalone sounder with a selectable output level, a limit of six per zone, a bayonet lock and an anti-tamper feature, and it is designed to comply with EN54 part 3. The Hipoint 302-0004 is a 2-wire zone-powered IP55 horn sounder for indoor and outdoor use, with 90dB output, three sound patterns and an end of line set by DIL switch. The Hipoint is supplied complete with back box and flush adaptor plate.

Sita sounders

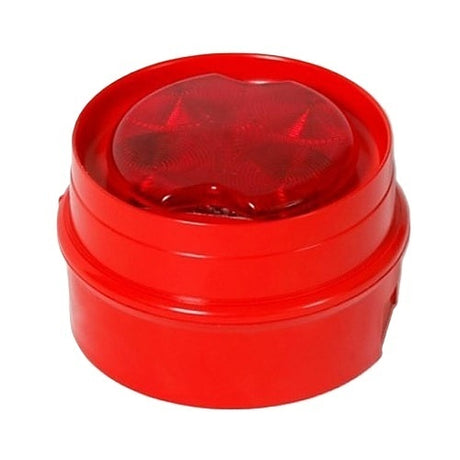

The Sita 323-0001 gives 87dB with seven sound patterns and suits indoor (IP21) and outdoor (IP55) use, while the 326-0001 low profile sounder and the 326-0003 give 88dB with three patterns; all three have an inbuilt short circuit isolator. The 326/0021-R sounder/strobe is an addressable unit that attaches to the loop, adds a red lens visual indicator and is only compatible with Sita 200+, Duonet and Quadnet control panels.

NS100 and NSF100 conventional range

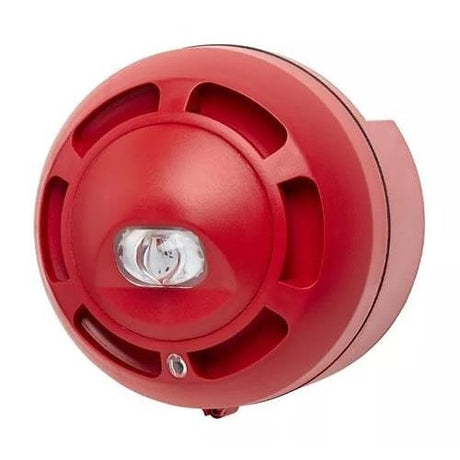

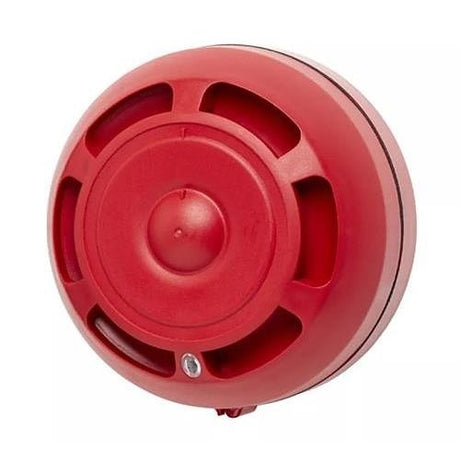

The NS100R-S and NS100R-D are EN54-approved conventional sounders with first fix installation, a 12 to 56Vdc operating voltage, 32 alarm tones and a two-stage alarm option; the NS100R-D adds an IP65 rated deep mounting base. The NSF100R-W-D and NSF100R-W-S combine a sounder with a visual alarm, a strobe or VAD, in one unit and are approved to EN54-3 and EN54-23.

Starter kit

The TwinflexPro² 604-0008 kit pairs an 8-zone two-wire control panel with seven Multipoint ASD detectors with integral sounder, two manual call points and a detector head removal tool.

ModelFamilySoundNotes
302-0002TWINFLEX HatariSelectable outputWhite, 6 per zone maximum
302-0004TWINFLEX Hipoint90dBIP55, back box supplied
323-0001Sita87dB7 sound patterns, isolator
326-0003Sita88dB3 sound patterns, isolator
326/0021-RSita sounder/strobe88dBAddressable, red lens
NS100R-DNS100 conventional32 alarm tonesIP65 deep base
NSF100R-W-SNSF100 sounder/VAD32 alarm tonesEN54-3 and EN54-23

Related categories

Pair sounders with Fike detectors and Fike control panels, browse Fike products or the wider fire and safety equipment range, or read our help and support article on smoke detectors.

Frequently asked questions

What is a Fike sounder?

A Fike sounder is a fire alarm sounder made by Fike Safety Technology that gives a loud warning tone when its fire alarm panel signals an alarm. Many offer several selectable tones and volume levels, and some combine the sounder with a detector or a strobe. The range here includes standalone sounders, a low profile sounder and a two-wire fire alarm kit.

What is a Fike sounder beacon?

A Fike sounder beacon is a fire alarm device that combines an audible sounder with a flashing visual warning in one unit. The light helps alert people with hearing loss or in noisy areas, and a visual alarm device, or VAD, should usually meet EN 54-23. The range here includes conventional, Twinflex and addressable sounder strobes.
