Emergency Downlights

Emergency downlights are compact LED fittings with their own battery that give light when the mains supply fails. This page holds Duceri models from ESP with lithium batteries: non-maintained recessed downlights and a surface model that can run maintained (always on), with self-test on some. Lens options include open and corridor lenses, and the D2411WH gives a 3 hour battery duration from a LiFePO4 battery.

Choosing Emergency Downlights

An emergency downlight is a downlight with its own battery that gives emergency lighting; the Duceri D2411WH, for example, is a recessed emergency downlight with a high power 5W LED and a 3 hour battery duration. Pick the operation mode first, then the lens, the mounting and whether the fitting should test itself.

Operation mode

The D2411WH, D2413WH and D6402WH run non-maintained. The D5403WH supports maintained or non-maintained operation, so it can also give light from the mains supply.

Lenses and light output

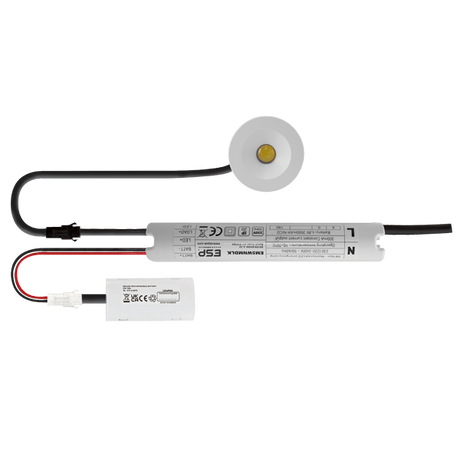

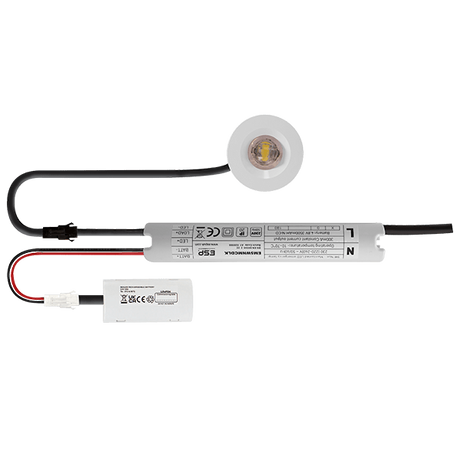

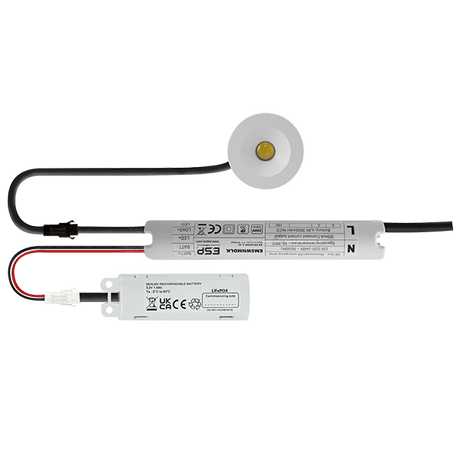

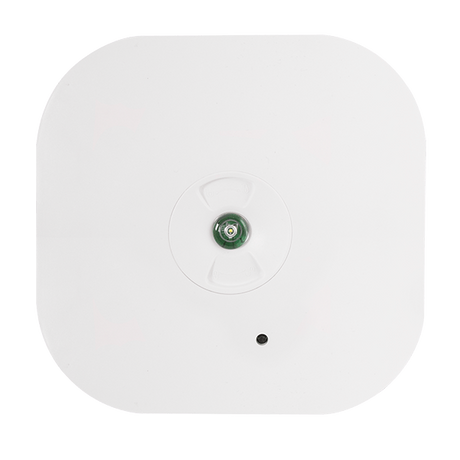

A corridor lens gives the D2411WH an emergency luminous flux of 214 lm, and the open lens on the D2413WH gives 263 lm. The D5403WH comes with an open and a corridor lens, rated 118 lm and 110 lm in emergency, while the D6402WH has an open lens rated 138 lm.

Self test, batteries and fixing

The D5403WH and D6402WH have a self test facility. The D2411WH and D2413WH use a 3.2V 6000mAh LiFePO4 battery, and the D5403WH and D6402WH a 3.2V 1500mAh LiFePO4 battery. The D2411WH and D2413WH need an emergency module cutout of Ø48 mm and the D6402WH one of Ø35 mm, while the D5403WH mounts on a ceiling or wall, and a flushing kit is an accessory for it. Models such as the D2413WH and D5403WH carry BS EN 60598-2-22.

Models at a glance

ModelMountingOperationLensEmergency output
D2411WHRecessedNon-maintainedCorridor214 lm
D2413WHRecessedNon-maintainedOpen263 lm
D5403WHCeiling or wallMaintained or non-maintainedOpen and corridor118 lm / 110 lm
D6402WHRecessedNon-maintainedOpen138 lm

Related pages

See emergency lighting, exit and fire escape signs and emergency lighting accessories.

Brands we stock in Emergency Downlights

ESP.

Frequently asked questions

Which is better, a recessed or a surface emergency downlight?

Choose a recessed emergency downlight where there is a ceiling void to fit it into, and a surface model where the ceiling is solid or the void is too shallow. Either type gives emergency light when the mains fails. Check the cutout size for a recessed model and the IP rating where moisture is present. The range here includes recessed models and a surface model.

What is an emergency downlight?

An emergency downlight is a ceiling downlight, usually with its own battery, that lights an escape route or open area when the mains supply fails. A non-maintained type lights up when the mains fails, while a maintained type also works as normal lighting. Look for the rated emergency duration, often 3 hours, and a self-test option. The range here includes recessed models and a surface model, some with self-test.
