Duceri D2411WH Emergency Downlight 5W LED IP20 Corridor Lens Lithium Battery Non-Maintained White Bezel
£
31
40
(Incl. VAT)
5 Years Warranty
Emergency Downlight 5W LED IP20 Corridor Lens Lithium Battery Non-Maintained White Bezel
About this product
About this product

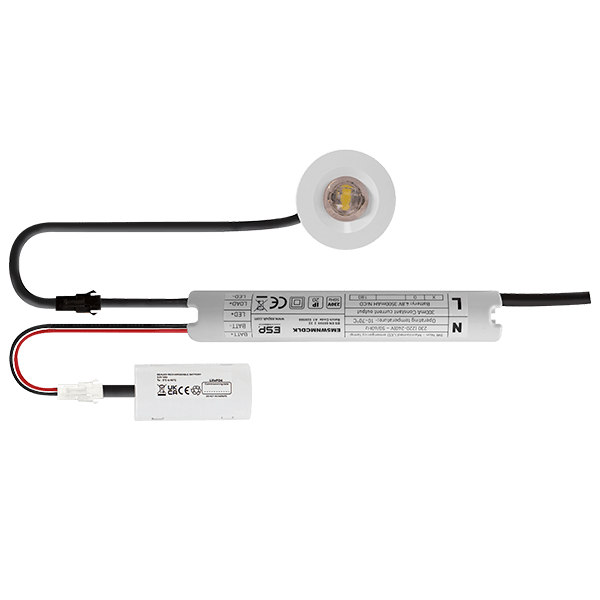

The Duceri D2411WH, from ESP's Emergency Lighting range, is a recessed emergency downlight with a high power 5W LED and a corridor lens, supplied with a white aluminium bezel. It runs non-maintained; its emergency luminous flux is 214 lm, and its battery duration is 3 hours.
Key features
- Corridor lens; emergency luminous flux 214 lm
- High power 5W LED, 5500 K; LED life 40000 hours
- Non-maintained operation
- 3.2V 6000mAh LiFePO4 battery, 3 hour battery duration; replacement battery D002E
- Supplied with a white aluminium bezel
- Recessed mounting; emergency module cutout Ø48 mm
- Green LED charging indicator; charge and discharge protection
- Certified to BS EN 60598-2-22
Frequently asked questions
What lens does the D2411WH have?
A corridor lens; its emergency luminous flux is 214 lm.
Is it maintained?
No. It runs non-maintained.
What is its battery duration?
3 hours, from a 3.2V 6000mAh LiFePO4 battery.
What size cutout does it need?
The emergency module cutout is Ø48 mm.
Which bezel is supplied?
A white aluminium bezel.
-
Download
- D2411WH Tech Sheet
£
31
40
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
Ø55 x 31
Colour Temperature (K)
5500
Emergency Module Dimensions (mm)
180 x Ø32
Emergency Luminous Flux (Lm)
214
Battery Dimensions (mm)
70 x Ø31
LED Lamp Type
High Power 5W LED
Emergency Module Cutout (mm)
Ø48
LED Life (Hours)
40000
Emergency Operation
Non-Maintained
Materials
Polycarbonate Lamp Head & Housing
Status Indication
Green LED
Mounting
Recessed
Replacement Battery
D002E
Weight (Kg)
0.25
Warranty (Years)
5
Battery Duration (Hours)
3
Supply Voltage (V AC)
220 - 240
Frequency (Hz)
50
Safety
Charge & Discharge Protection
Power Consumption (W)
4.3
Power Consumption (A)
0.036
Battery Specification
3.2V 6000mAh LiFePO4
Colour
White
RAL
RAL 9003
Ingress Protection
IP20
Standards
BS EN 60598-2-22
Features
Corridor lens, Supplied with white aluminium bezel
Dimensions
Dimensions (mm)
Ø55 x 31
Specifications
| Dimensions (mm) | Ø55 x 31 |
|---|---|
| Colour Temperature (K) | 5500 |
| Emergency Module Dimensions (mm) | 180 x Ø32 |
| Emergency Luminous Flux (Lm) | 214 |
| Battery Dimensions (mm) | 70 x Ø31 |
| LED Lamp Type | High Power 5W LED |
| Emergency Module Cutout (mm) | Ø48 |
| LED Life (Hours) | 40000 |
| Emergency Operation | Non-Maintained |
| Materials | Polycarbonate Lamp Head & Housing |
| Status Indication | Green LED |
| Mounting | Recessed |
| Replacement Battery | D002E |
| Weight (Kg) | 0.25 |
| Warranty (Years) | 5 |
| Battery Duration (Hours) | 3 |
| Supply Voltage (V AC) | 220 - 240 |
| Frequency (Hz) | 50 |
| Safety | Charge & Discharge Protection |
| Power Consumption (W) | 4.3 |
| Power Consumption (A) | 0.036 |
| Battery Specification | 3.2V 6000mAh LiFePO4 |
| Colour | White |
| RAL | RAL 9003 |
| Ingress Protection | IP20 |
| Standards | BS EN 60598-2-22 |
| Features | Corridor lens, Supplied with white aluminium bezel |
Dimensions
| Dimensions (mm) | Ø55 x 31 |
|---|
