Speaker Volume Controls
Speaker volume controls set the listening level of the speakers in a zone, and some also choose the audio source. Makers here include Clever Acoustics, Vanco, Bose Professional and Adastra, with 100V wall volume controls, automatic impedance matching controls, ControlCenter digital zone controllers and the AT6 rack-mount attenuator. Wall controllers for networked systems and amplifiers sit alongside them, such as the Axis 02741-001 zone controller with three preconfigured audio sources.
Adastra: 952.476UK, AT6 Rack-Mount 100V Attenuator with A/B Source Switch, 6 x 30W

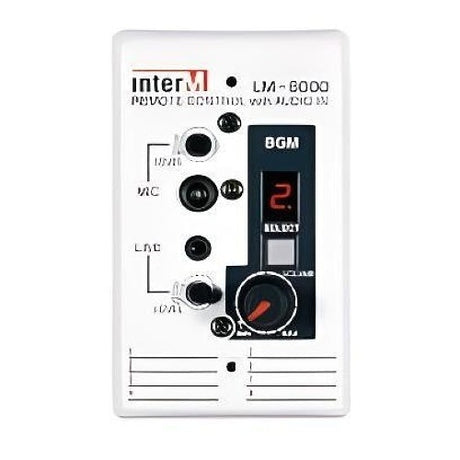

Flexible Zoning£ 111 69RRP: £121.84Fast delivery Tomorrow, 20 NovCIE Group LM8000 volume control
£ 18 95Dynacord F.01U.384.715 pro volume controller
£ 1,133 42
Choosing Speaker Volume Controls

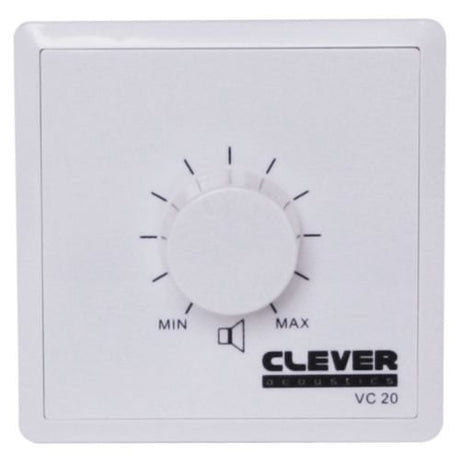

A speaker volume control is a control that sets the volume of the speakers in a zone; the Clever Acoustics CRVOL01, for example, is a 100V volume control with 10 step attenuation plus off. Match the control to the system type first, whether a 100V line, a single matched amplifier or a networked sound processor.
Wall attenuators

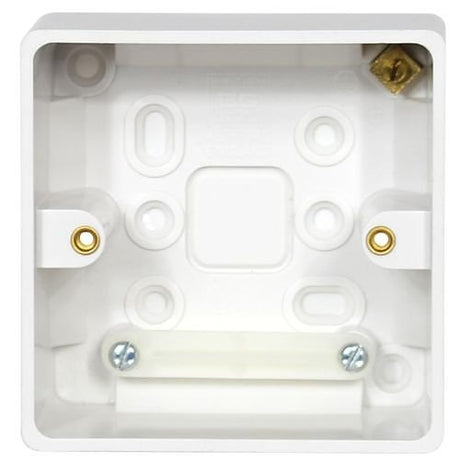

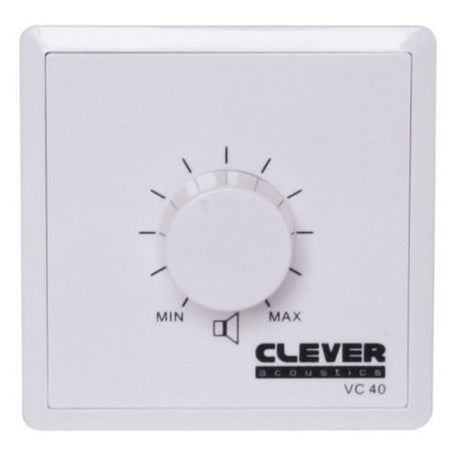

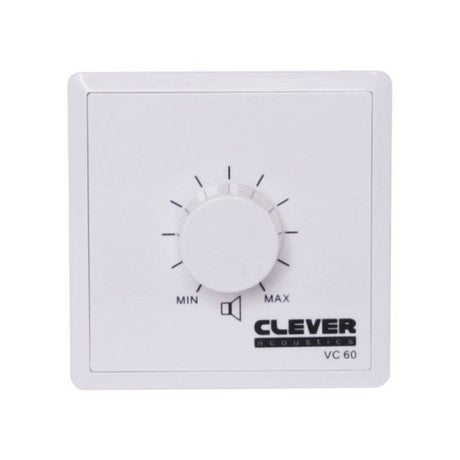

The CRVOL01, CRVOL02 and CRVOL03 give 11 volume positions, 10 plus off, for localised attenuation of 100V speakers or zones, and they need the CRVOL09 back box. Select the attenuator wattage at the maximum total tappings of the connected loudspeakers. The Penton VCT25/R is a 25w loudspeaker volume control for flush or surface mounting, and on the VCT80/R the restored paging level can be pre-set at full volume or reduced by -3dB or -6dB.
Matching volume controls

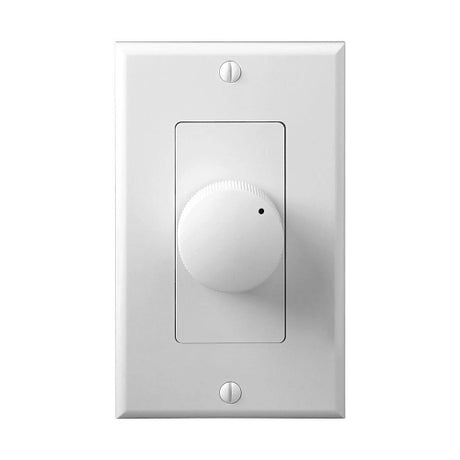

The Vanco VCRI, with a rotary knob, and VCSI, with a slider, are automatic impedance matching volume controls, so several controls and speaker pairs can run from one appropriately powered amplifier without impedance tables, jumpers or switch settings. The VCRV100 and VCSV100 are 70/100V volume controls for commercial sites with several audio zones, again with a rotary knob or a slider.
Zone and network controllers

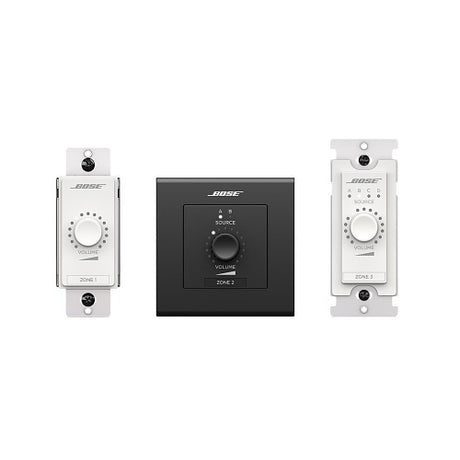

The Bose Professional 808461-2110 and 808461-2210 are PoE-powered ControlCenter digital zone controllers for volume and source selection on Bose CSP, ESP and EX sound processors. The Axis 02741-001 is a zone-specific network controller with volume, mute and three preconfigured audio sources, and the LEA Professional CS TOUCH-BLK is a touch wall controller for LEA amplifiers. The Adastra 952.476UK AT6 is a 1U rack-mount 100V attenuator with six output channels and an A/B source switch per channel.
Controls at a glance
| Model | Maker | Type |
|---|---|---|
| CRVOL01 | Clever Acoustics | 100V volume control, 10 steps plus off |
| VCRI | Vanco | Impedance matching volume control, rotary |
| VCSV100 | Vanco | 70/100V volume control, slider |
| 808461-2210 | Bose Professional | ControlCenter digital zone controller, PoE |
| 02741-001 | Axis Communications | Zone network controller |
| VCT80/R | Penton | Volume controller, pre-set restoration level |
| 952.476UK | Adastra | AT6 six-channel 100V rack attenuator |
Related pages
See 100V audio amplifiers, ceiling speakers and background wall speakers.
Brands we stock in Speaker Volume Controls
Axis Communications, Bose Professional, CIE Group, Clever Acoustics, Dynacord, LEA Professional, Penton and Vanco.
Frequently asked questions
What is an impedance-matching volume control?
An impedance-matching volume control adjusts the level of a pair of low-impedance speakers while keeping the load on the amplifier within a safe range. That lets several rooms share one amplifier. It typically suits home and small commercial systems that do not use a 100V line. The range here includes rotary and slider impedance-matching controls.
How does a speaker volume control work?
A passive speaker volume control sits in the cable run between the amplifier and the loudspeakers in one zone and reduces their level in steps. On 100V line systems it usually uses a tapped transformer, and on low-impedance speakers an impedance-matching circuit. A networked zone controller instead sends level changes to the amplifier or processor. The range here includes line attenuators, impedance-matching controls and networked zone controllers.
How do you install a volume control for speakers?
Fit the volume control in the cable run between the amplifier and the speakers it serves, usually in a wall back box near the room entrance. On a 100V line system, choose a control rated at or above the total wattage tapped on its speakers. Where the system also gives voice alarm messages, local volume controls should be overridden in an emergency so alarms play at full level.
