Nurse Call Systems

Nurse call systems let patients and residents call for staff help and show staff where the call was made. This page has call points, infrared ceiling receivers and pendants, bed and chair exit mats, overdoor lights, sounders, controllers and corridor displays from C-TEC, Intercall, Hoyles, Bell System and Scope. They include C-TEC 800 Series and Quantec Addressable Call System parts, and the Intercall L722 call point with 5 levels of call.

Choosing Nurse Call Systems

Start with the call system on site, then choose how calls are raised and how staff are alerted.

Call points and receivers

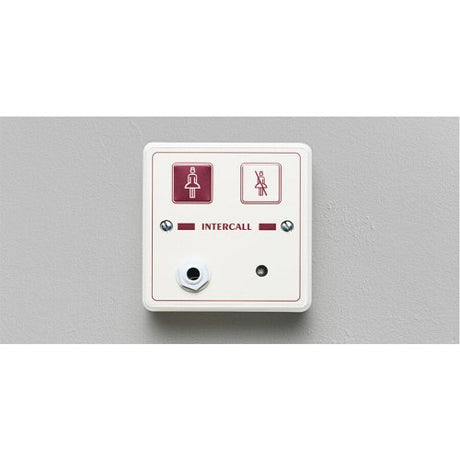

The Intercall L722 call point has a jack socket that accepts pear leads, pressure mats and portable radio triggers. The C-TEC QT302RXR master infrared ceiling receiver accepts infrared calls from Quantec staff attack transmitters and patient and staff pendants, and the QT302RXS slave adds coverage, with up to three per master. For car parks and loading bays, the C-TEC QT422RX radio receiver operates at 868.3 MHz with typical RF coverage of 60m.

Bed, chair and floor sensors

The C-TEC QT644 is a 90cm x 60cm floor pressure mat that triggers a Standard call on a Quantec or 800 Series system when foot pressure is detected. The C-TEC QT638 PIR movement sensor connects to the slave input on a QT602 or QT609 call point, for example to monitor a patient getting out of bed.

Dementia care

The C-TEC QT630 is an engineer-programmable dementia care master controller with the inputs, outputs and timers to connect devices such as PIRs, enuresis sensors, bed exit mats and door contacts. It can switch lights on and off when movement is detected, and comes with 10 pre-set monitoring configurations.

Lights, sounders and displays

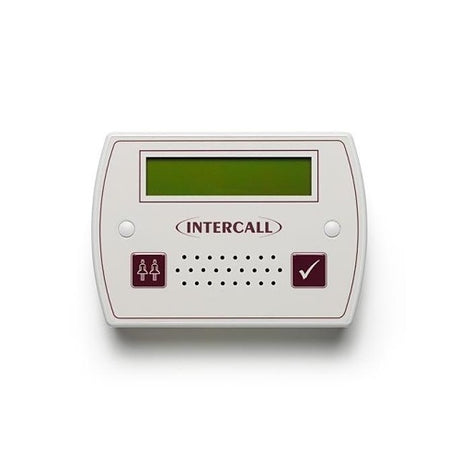

The Hoyles S1788PR overdoor light/sounder has four adjustable tones, up to 108 dB at 12V DC. The C-TEC NC944 is a four zone call controller with an onboard buzzer, MUTE and RESET buttons, and the NC910EF adds 10 zones to an NC910F or NC920F controller. The Intercall L628 LCD display has Day/Night tone settings and zoning.

ModelPartWhat it does
Intercall L722Non-audio call point5 levels of call
C-TEC QT302RXRMaster infrared ceiling receiverAccepts Quantec infrared calls
C-TEC QT633Bed exit matSenses the pressure change when a patient exits a bed
C-TEC NC806COverdoor lightConstant red for Standard calls, pulsing red for Emergency calls

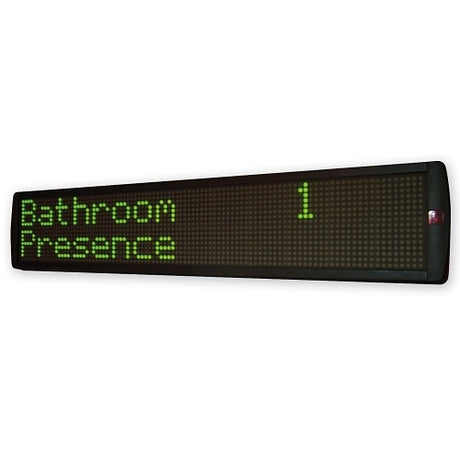

C-TEC QT608C/SSCorridor displayHighest priority calls shown first

Related categories

See disabled refuge and toilet alarms and emergency voice communication and refuge call systems. See also Hearing Loop Systems.

Brands we stock in Nurse Call Systems

Bell System, C-TEC, Hoyles, Intercall and Scope.

Frequently asked questions

How are nurse call systems used in care homes?

In care homes, a nurse call system lets residents ask for help from a bedside call point, ceiling pull or pendant, and shows staff which room needs attention. Homes often add pressure mats or movement sensors to alert staff when a resident gets out of bed or starts to wander. The range here includes call points, pendants, pressure mats and overdoor lights.

How do wireless nurse call systems work?

In a wireless nurse call system, a pendant or transmitter sends the call by infrared or radio signal to a nearby receiver, which passes it on to the call system. This removes the need for long trailing call leads at the bedside. When planning one, check the receiver coverage and whether the system tests its radio link. The range here includes infrared pendants, ceiling receivers and a radio receiver.

How is a nurse call system installed?

A nurse call system is typically installed by wiring call points, overdoor lights and sounders back to a controller or indicator panel, with a display for staff. Some systems run on standard alarm cable or CAT5, and wireless receivers can extend coverage. Follow the maker's instructions for zones and cabling, and test the call points after fitting. The range here includes controllers, call points and power supplies.

How does a nurse call system work?

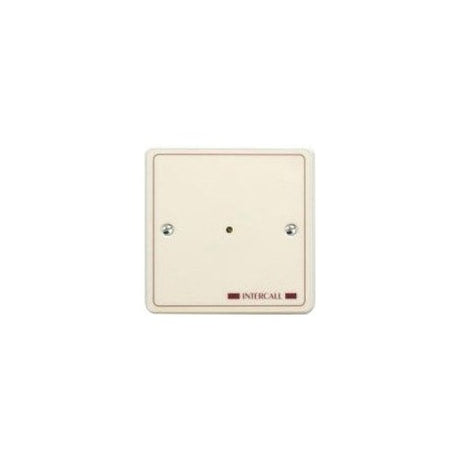

When a patient presses a call point or pendant, a controller lights the overdoor light outside the room and shows the location on a display. Calls can carry levels such as assistance or emergency, and staff cancel a call at the room with a reset point. The range here includes reset points, displays and remote sounders.
