Voice Alarm (EN 54-16) Systems
PAVA systems combine public address and voice alarm, so one system carries everyday paging announcements and emergency evacuation messages. Penton supplies IDA8 PAVA master controllers and slave units for EN 54-16 installations, wall paging consoles with an evacuation button, and speaker line supervision modules. A Bosch Plena message manager, a C-TEC fire telephone outstation and a Dynacord call station complete it.

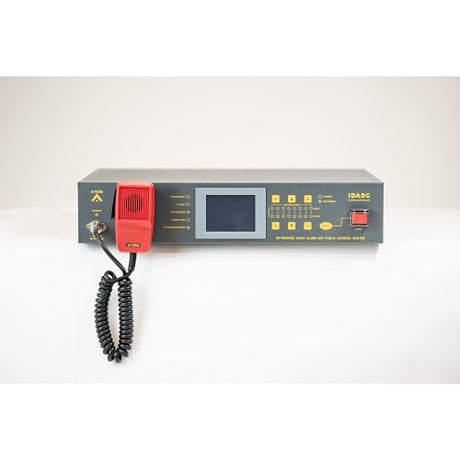

Penton IDA8C-C1-IO master controller
£ 5,992 03RRP: £7,190.44Penton DPM-T5F public address system, Grey
£ 1,997 56Penton IDA8SAB-C1 pava slave unit
£ 3,764 85RRP: £4,517.82Penton SONAES 12/150A battery charger
£ 2,537 14Penton IDA8C-C1-2I master controller
£ 6,101 57RRP: £7,321.88Penton CD-8DF public address system, Wall
£ 1,133 28Penton CD-16DF public address system, Wall
£ 1,613 41Dynacord F.01U.426.622 call station
£ 527 74Penton CD16-AS wall-mounted paging console
£ 1,976 93- £ 103 69
Penton CD-T5DF public address system, Wall
£ 2,650 65
Choosing Voice Alarm (EN 54-16) Systems
A PAVA system is a public address and voice alarm system that sends paging and emergency messages to zones of loudspeakers; the Penton IDA8C-C1-2I, for example, is a master controller for the IDA8 system, which meets the public address and voice alarm requirements of EN 54-16, ISO 7240-16 and BS 5839-8. Choose the controller and zone capacity first, then the paging consoles and line supervision.
Controllers and zones
The IDA8C-C1-2I and IDA8C-C1-IO are master controllers for IDA8, a third-generation modular system with IP and fibreoptic networking options. The IDA8SAB-C1 secondary unit adds 8 output zones and 2 backup amplifiers, with DSP, matrix control, a digital message player, hot-swappable amplifiers and loudspeaker line-impedance monitoring. The SONAES 12/150A is a battery charger with an integrated monitoring system.
Paging consoles and call stations

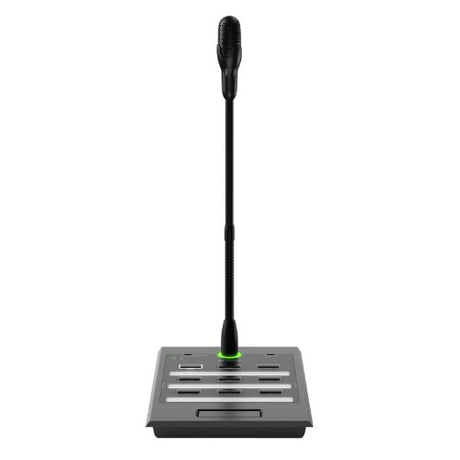

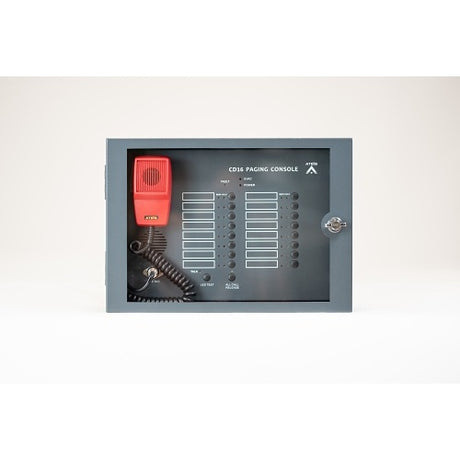

The CD16-AS is a remote paging console with Access Level 2 protection for IDA8 PAVA systems, with zone buttons, an All-Call option and a fireman's fist microphone in a lockable IP30 wall box. The CD-8DF and CD-16DF wall consoles have 8 or 16 keys and an evacuation button, the CD-T5DF adds an LCD touch screen, and the PSS-AS has a 5" TFT touch screen with 168 software keys across 14 pages. The Dynacord F.01U.426.622 is a V-Series call station with a gooseneck microphone and 9 programmable buttons.
Line supervision and messages

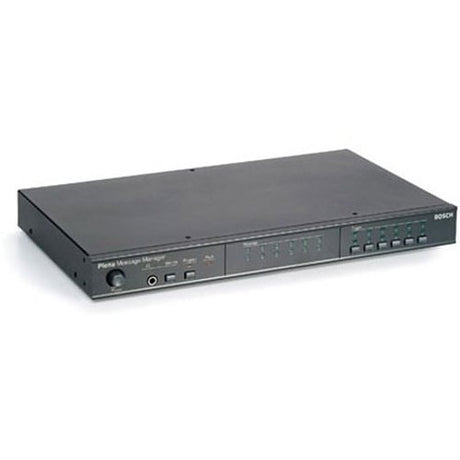

The VA-EOL end-of-line supervision board lets the system detect an open or short circuit on a speaker branch and indicate it within 90 seconds, and the VA-DLC-100 is a pack of 4 dummy load modules for speaker line surveillance by impedance measurement. The Bosch F.01U.505.599 Plena message manager is a stand-alone digital message player that downloads messages from a PC in WAV format.
Products at a glance
| Model | Maker | Role |
|---|---|---|
| IDA8C-C1-2I | Penton | IDA8 master controller |
| IDA8SAB-C1 | Penton | PAVA slave unit, 8 zones |
| CD16-AS | Penton | Wall paging console |
| PSS-AS | Penton | Touch screen paging console |
| VA-EOL | Penton | End-of-line supervision board |
| F.01U.505.599 | Bosch | Plena message manager |
| F.01U.426.622 | Dynacord | V-Series call station |
Related pages
See 100V audio amplifiers, PA speakers and emergency voice communication.
Brands we stock in Voice Alarm (EN 54-16) Systems
Frequently asked questions
How does a voice alarm differ from a fire alarm sounder?
A voice alarm gives spoken instructions through loudspeakers, usually after a short alert tone, while a standard fire alarm sounder gives a warning tone. Spoken messages can tell people which route to take or whether to stand by, which helps phased evacuation in large or public buildings. A voice alarm system usually also carries everyday public address announcements through the same speakers.
What is a PAVA system?
A PAVA system, short for public address and voice alarm, uses one set of loudspeakers for everyday announcements and for spoken evacuation messages in an emergency. Its control equipment should be approved to EN 54-16, and UK systems are usually designed to BS 5839-8. The range here includes PAVA controllers, paging consoles and speaker line monitoring modules.
