Penton Products

Plan a Penton system starting with the loudspeakers, then the amplifier and controller, and decide early whether it must work as a voice alarm.

Loudspeakers for indoor spaces

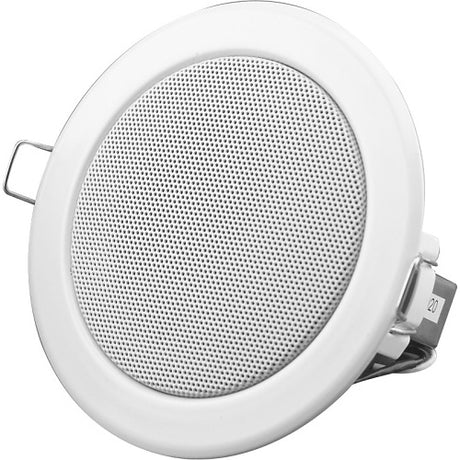

Ceiling speakers such as the RCS3/T have a twin cone driver for a wider frequency response, and the RCS8TCOAX pairs a 215mm bass/mid-range driver with a 25mm Mylar dome tweeter and a 20 watt/100 volt transformer. The APC4T/ENC is a wall-mountable plastic cabinet speaker rated 4W. For large open spaces, the GB20T/ENC spherical speaker covers 360 degrees horizontally, and column speakers such as the MCS40T/ENC give a controlled coverage pattern for places such as airports and churches.

Outdoor and harsh areas

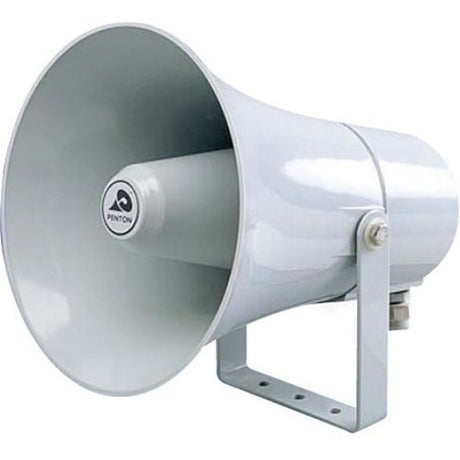

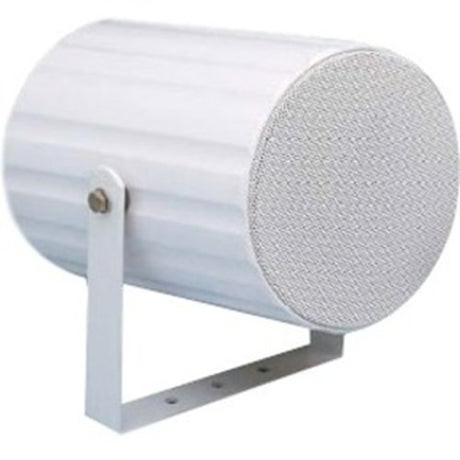

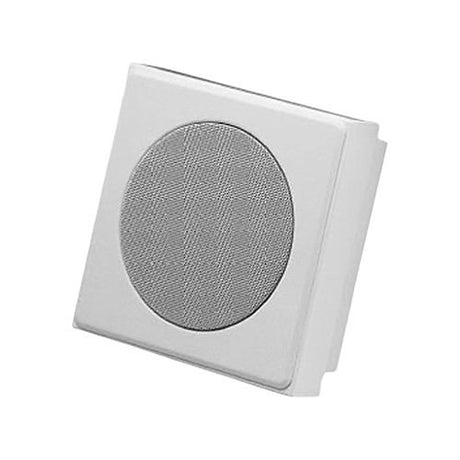

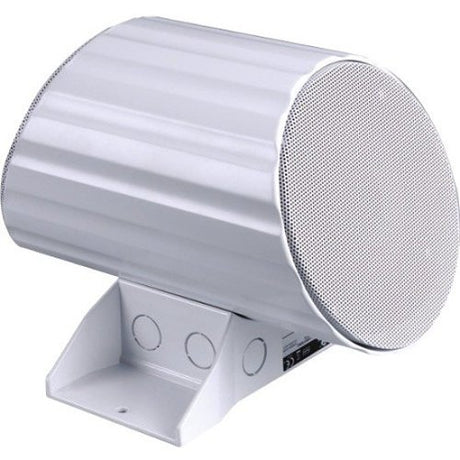

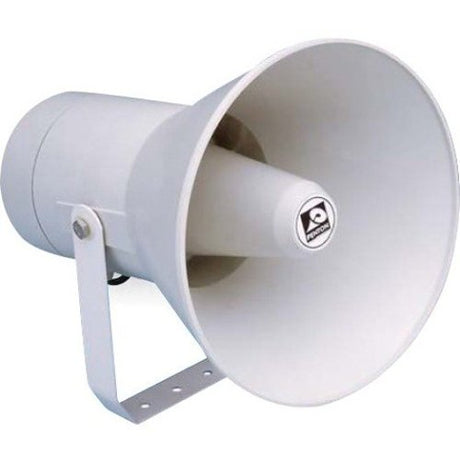

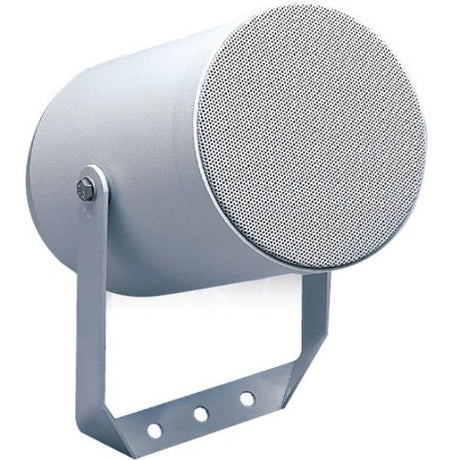

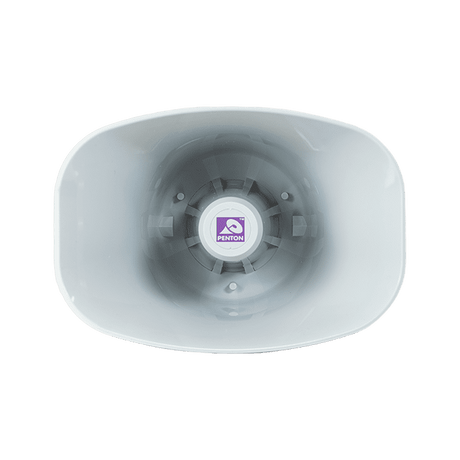

The MHS20T/ENC metal re-entrant horn is non-corrosive and resistant to salt laden air, with a lockable stainless steel bracket and loop in, loop out cabling, and the PH20A-24 horn has a built-in 20W amplifier, runs from 24Vdc and is rated IP66. Sound projectors include the CAD10/T, rated IP66, and the aluminium CELL10/T, rated IP55 with 100V tappings of 10/5/2.5/1.25W. The SENTRY6ST/ENC is a vandal proof metal cabinet loudspeaker rated IP52 for internal use.

Voice alarm

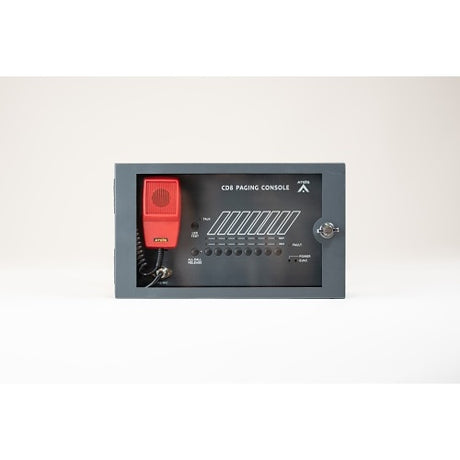

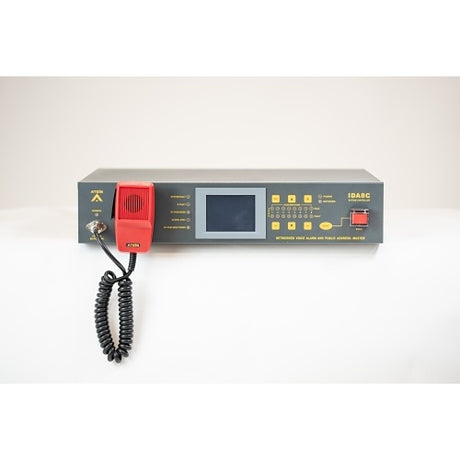

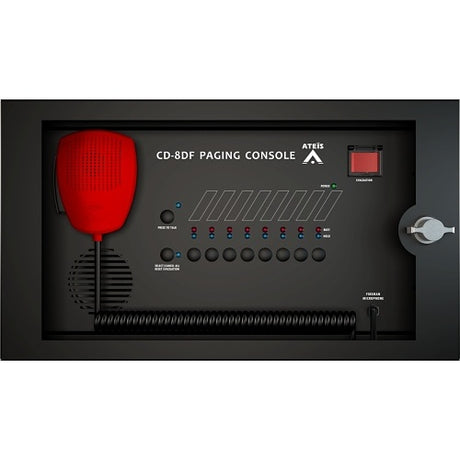

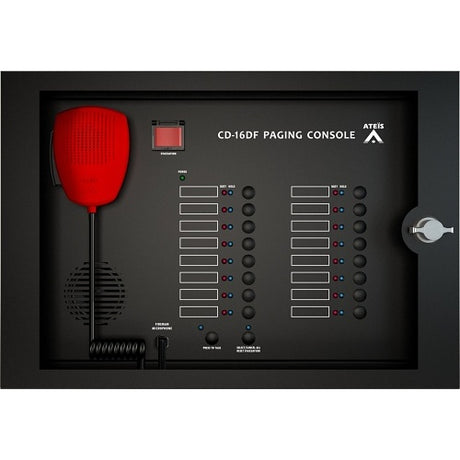

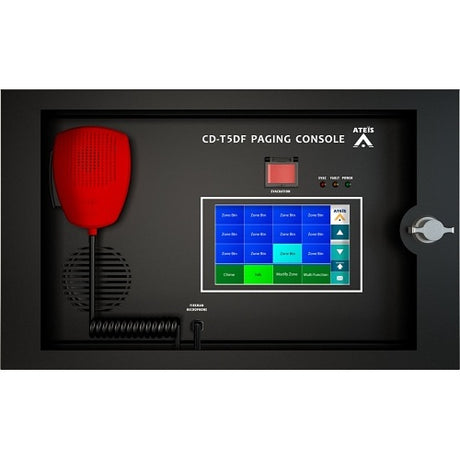

For voice alarm and evacuation, choose speakers certified to EN54-24, such as the APC4T/ENC, MCS80T/ENC and SENTRY6ST/ENC. The IDA8C-C1-2I master controller is EN54-16 certified, routes 48 audio channels and serves up to 256 zones on ATEIS Local-Net, and IDA8SAB-C1 units add 8 zones and 2 backup amplifiers. Paging consoles include the CD8-AS and the 16-zone CD16-AS.

Amplifiers and IP audio

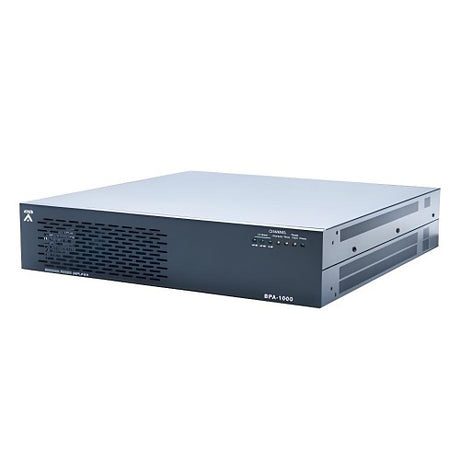

The BPA-1000 is a 2U 19" bridging amplifier for 100V, 50V or 8 Ohm lines, and the DPA4125 class-D amplifier draws 0.2W per channel in standby. The DPAFOUR125 gives 4 x 125W with a 24VDC battery back-up input. TERRACOM products carry audio over IP: the TERRA-AMP has two 15W outputs and runs on PoE, the IPBX-2C20 makes standard low impedance speakers IP addressable, and the TERRA-K is a gooseneck paging and intercom microphone.
