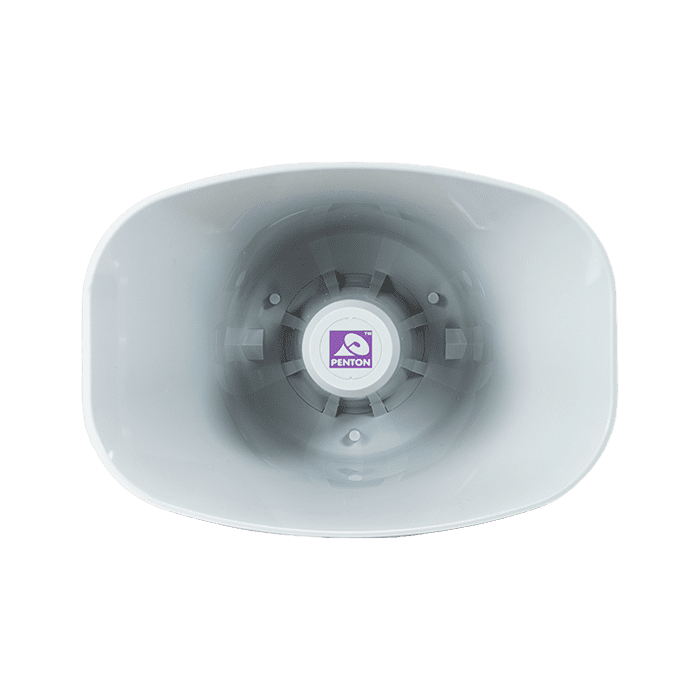

Penton APH30T/ENC EN54-24 Weatherproof Horn Loudspeaker, 30W, IP 66
About this product
The Penton APH30T/ENC is a 30W weatherproof horn loudspeaker in UL-94V0 plastic, EN54-24 certified for use with voice alarm and evacuation systems. It is used for speech and signal warnings on 100V line systems, with 30/15/7.5/3.75W tappings, and is IP 66 rated and suitable for external use.
Key features
- 30W rated power
- 100V line tappings: 30/15/7.5/3.75W
- 70.7V line tappings: 15/7.5/3.75/1.875 W
- 108dB SPL at 1m, 1W (average over 100-10kHz)
- EN54-24 certified for voice alarm and evacuation systems
- IP 66 rated and suitable for external use
- Dual gland entry for loop in/out wiring
- Supplied with a capacitor for DC line monitoring
Frequently asked questions
Is the Penton APH30T/ENC EN54-24 certified?
Yes. It is EN54-24 certified for use with voice alarm and evacuation systems (EN54-24:2008, Certificate No: 0359-CPD-0166 TYPE B).
Which line voltages and tappings does it support?
On a 100V line it taps at 30/15/7.5/3.75W, and on a 70.7V line at 15/7.5/3.75/1.875 W.
Can it be installed outdoors?
Yes. It is IP 66 rated, suitable for external use and made from UL-94V0 plastic with UV inhibitors.
How loud is it?
It produces 108dB at 1m with 1W (average over 100-10kHz) and 122 dB at 1m at full power.
Does it support line monitoring?
Yes. The APH30T/ENC is supplied with a capacitor for DC line monitoring.
How is it mounted?
It mounts with a stainless steel U bracket and hardware.
Specifications
Specifications
| Brand | Penton |
|---|---|
| Model | APH30T/ENC |
| Manufacturer Part Number (MPN) | APH30T/ENC |
| Rated power | 30W |
| Tappings 100V line | 30/15/7.5/3.75W |
| Tappings 70.7V line | 15/7.5/3.75/1.875 W |
| Transformer impedance (100V) | 330/660/1.32k/2.64k Ohms |
| Driver impedance | 8 Ohms |
| SPL 1m 1W | 108dB (Average over 100-10kHz) |
| SPL @ 4m, 1W (1/3 octave, 1KHz) | 82 dB |
| SPL @ 1m, full power (100Hz-10kHz) | 122 dB |
| SPL @ 4m, full power (1/3 octave, 1KHz) | 94 dB |
| Dispersion at 1k/2k Hz | 105/49° horizontal, 142/68° vertical |
| IP rating | IP 66 |
| Max/Min ambient temp | 70°/-25°C |
| Relative humidity | ≤95% |
| Dimensions (W x H x D) | 258x180x280 mm |
| Net weight | 2.0 kg |
| Material | Low smoke zero Halogen UL-94V0 Plastic with UV inhibitors |
| Mounting | Stainless Steel U bracket and hardware |
| Certification | EN54-24:2008, Certificate No: 0359-CPD-0166 TYPE B |
| Standards | BS5839 Part 8 Compliant |
| Line monitoring | Supplied with capacitor for DC line monitoring |
| Cable entry | Dual gland entry for loop in/out |
| RAL colour | RAL7035 - Light Grey |
| Colour | Light Grey |
