Call Point Covers & Detector Guards

Call point covers and detector guards protect fire and security devices from accidental or malicious operation, vandalism and damage. This page holds clear polycarbonate covers that fit over break glass call points and push buttons, some with a warning horn, steel wire cages for smoke detectors, PIRs and exit signs, and protective panel covers, mostly from Safety Technology International, with parts from Hochiki and Vimpex.

Choosing Call Point Covers & Detector Guards

Choose by the device that needs protecting, then by mounting, and decide whether a warning sounder is wanted.

Call point and break glass covers

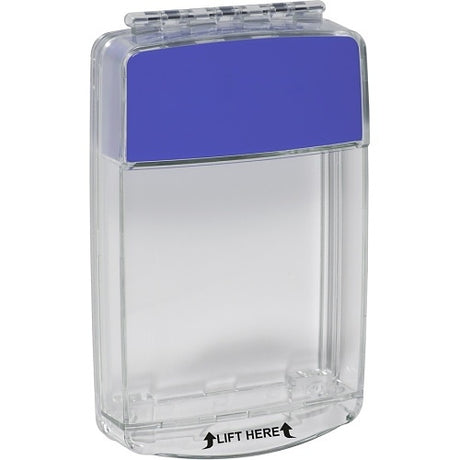

The STI-15010NB Euro Stopper is a clear, tamper proof, tough UV-stabilised polycarbonate cover and frame that retrofits over the break glass call point; its Glow Guide illuminates in the dark, making the call point easier to locate. The STI-6930 Call Point Stopper is a hinged polycarbonate cover with a spring loaded hinge that returns the cover to its original position once released. The Fike 25-0083-303 is a cover flap that fits directly on to a Twinflex call point to reduce the risk of accidental operation.

Warning sounders

When the cover of the STI-1155 is lifted, a self-contained 95/105 dB warning horn sounds and immediate attention is drawn to the area. The STI-1150 Stopper II is a flush mount polycarbonate cover with a 95 or 105 dB warning horn, designed for outdoor use.

Outdoor and wash down areas

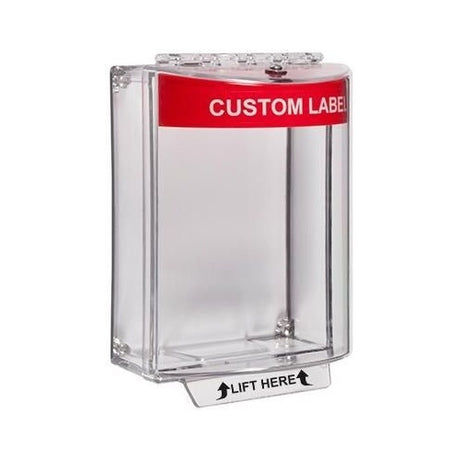

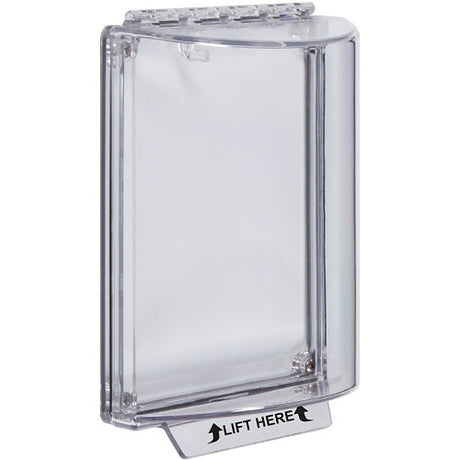

On the STI-13000NC Universal Stopper, mounting options 0 and 1 are designed to meet the requirements of IP54, options 6 and 7 IP56, and option 6 with the Sealed Mounting Plate provides IP66 protection. The STI-13120CR Enviro Stopper protects manual call points and switches against dust and water ingress in harsh environments such as wash down areas.

Detector, sounder and camera guards

The STI-8100 Polycarbonate Detector Stopper protects smoke detectors where abuse is severe, and the smoke detector's LED remains clearly visible. The STI-8200-SS is a heavy-duty 1.2mm stainless steel cover whose perforations give smoke access to the detector. Steel rod cages here include the STI-9620 for PIR units, the STI-9615 for beacons and sounders, the STI-9845 for the sensor units of beam type smoke detectors, and the STI-9626 for CCTV cameras and external lighting.

Control panels

The STI-7510D cover can protect fire and security control panels and has an exterior key lock. The Kentec K18002 Tamper Resistant Vision Window has a fully welded steel construction.

ModelProtectsDetail
STI-15010NBBreak glass call pointGlow Guide frame
STI-1155Manual pull station95/105 dB warning horn
STI-13000NCCall points, emergency buttonsIP54 to IP66 by mounting option
STI-8100Smoke detectorsPolycarbonate, LED visible
STI-9626CCTV cameras, external lightingCoated steel rod cage

Related categories

See the call points themselves in manual call points, more covers in call point and button covers, and parts in fire alarm accessories.

Brands we stock in Call Point Covers & Detector Guards

C-TEC, Comelit PAC, Cygnus, Eaton, Fike, Hochiki, Hoyles, Kentec Electronics, Kidde, Safety Technology International and Vimpex.

Frequently asked questions

What does the warning sounder on a break glass cover do?

It sounds a loud local horn when the cover is lifted, drawing attention to the call point and helping to prevent false alarms. On the STI-1155 Stopper II, a self-contained 95/105 dB warning horn sounds when the indoor/outdoor cover is lifted. Euro Stopper kits such as the STI-15C20ML retrofit over an existing device and come with or without a 96 dB integral sounder powered by a 3V lithium battery.

Can a Universal Stopper be used outdoors?

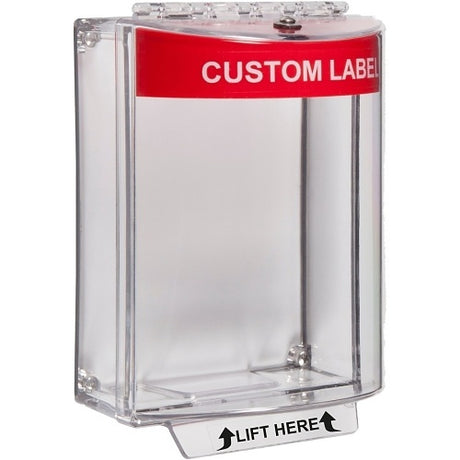

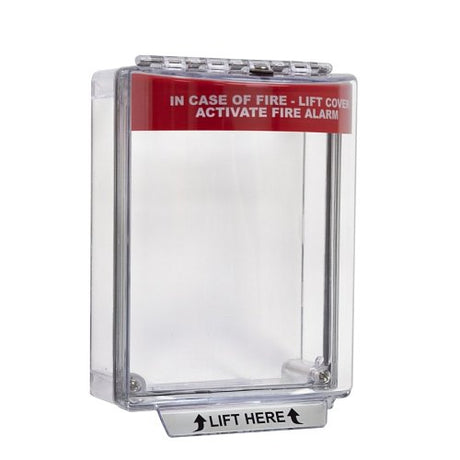

Yes, it is made as an indoor and outdoor cover, and its IP rating depends on the mounting option chosen. On Universal Stopper covers such as the STI-13110CR, mounting options 0 and 1 meet IP54, options 6 and 7 IP56, and option 6 with the Sealed Mounting Plate gives IP66. The STI-1150 Stopper II is designed for outdoor use, and the STI-13120CR Enviro Stopper suits wash down areas.

What does a PIR cage protect against?

It protects a PIR or motion detector from vandalism, misuse and accidental damage with a guard of heavy-duty coated steel. The STI 9619 and STI-9618 Damage Stopper cages are corner mounted and built from plastic coated, heavy duty galvanised steel rod. The STI-9620 is a cage for PIR units, 156 mm high, 102 mm wide and 57 mm deep.

What is an exit sign cage for?

It is a steel guard that helps protect an exit sign from vandalism and accidental damage. The STI-9743 is built from 9-gauge steel wire coated with white corrosion resistant polyester and is compatible with the ABOX 600 UM and S-LINE 600 UM exit signs. It measures 700 mm wide by 470 mm high, and mounting clamps and hardware are included.

How can a smoke detector be protected from vandalism?

With a cover or cage made for it. The STI-8130 surface mount cover protects smoke detectors within vulnerable establishments where severe vandalism is causing false fire alarms, and the detector's LED remains clearly visible. The STI-8230-SS stainless steel Detector Stopper uses a matrix of perforations that gives smoke access to the detector. The STI-9609 cage has a web-like octagon shape of heavy-duty coated steel wire that makes it extremely difficult to break.
