CCTV Memory Cards
A CCTV memory card records video locally in the camera: with the Axis 02365-001, an AXIS Surveillance Card 512 GB, an SD card supported Axis IP-camera makes a self-contained recording solution. Cards here include AXIS Surveillance Cards such as the Axis 01491-001 (128 GB), 02021-001 (256 GB) and 02366-001 (1 TB), and industrial SD cards from Western Digital for Bosch cameras, such as the Bosch F.01U.394.677.
Choosing CCTV Memory Cards
Choose a card by the camera it goes into, then by capacity and by how many cameras need one.
What edge storage does
On the Axis 01491-001, edge storage enables flexible storage solutions such as de-centralised video recording. In applications with bandwidth limitations, live video can be viewed in low resolution while high resolution video is recorded locally on the 01491-001. Combined with Axis Zipstream technology, the 01491-001 serves for primary storage or as redundancy for failover recording in case of lost connections.
AXIS Surveillance Cards
The Axis 01491-001 is an AXIS Surveillance Card 128 GB, the 02021-001 an AXIS Surveillance Card 256 GB, the 02365-001 a 512 GB surveillance microSDXC card and the 02366-001 a 1 TB microSDXC surveillance card. The 02365-001 and 02366-001 are optimised for surveillance cameras and health monitoring ready, with an SD card adapter included. The Axis 01678-001, 02365-021 and 02366-021 are packs of 10 cards, and with the 02366-021 even high-resolution video in up to 4K can be recorded locally.
Bosch industrial SD cards

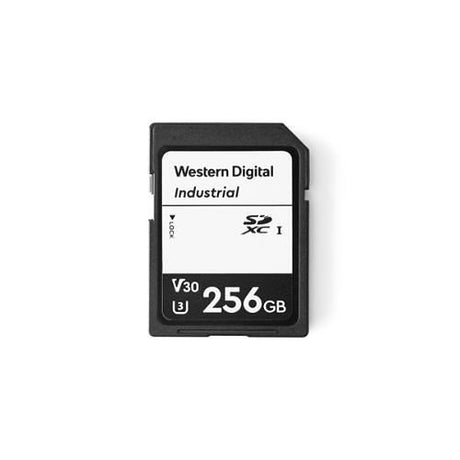

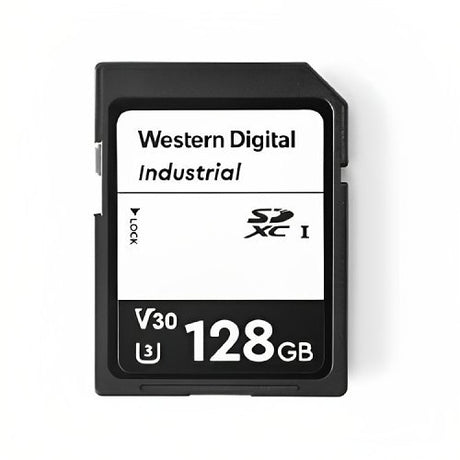

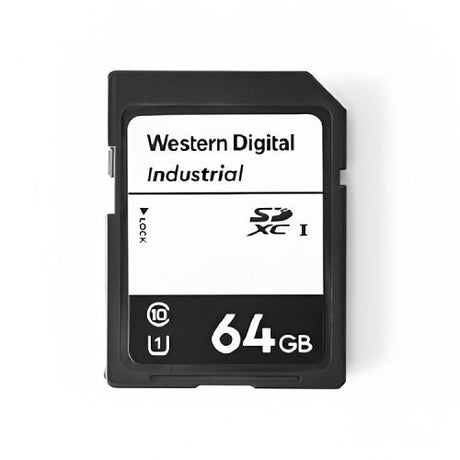

The Bosch F.01U.394.677, F.01U.394.678 and F.01U.394.679 are industrial SD cards from Western Digital with Health Status Monitoring for proactive maintenance, automatic read refresh to ensure data integrity and host lock to enable data privacy. The F.01U.394.677, F.01U.394.678 and F.01U.394.679 are approved for Bosch surveillance cameras. On the F.01U.394.677, pre-alarm recording in RAM reduces write cycles on the SD card.
| Model | Card | Detail |
|---|---|---|
| Axis 01491-001 | AXIS Surveillance Card 128 GB | Edge storage for video surveillance |
| Axis 01678-001 | AXIS Surveillance Card 128 GB | Pack of 10, SD card adapter included |
| Axis 02021-001 | AXIS Surveillance Card 256 GB | Edge storage for video surveillance |
| Axis 02365-001 | AXIS Surveillance Card 512 GB | Health monitoring ready |
| Axis 02366-001 | AXIS Surveillance Card 1 TB | SD card adapter included |
| Bosch F.01U.394.677 | Industrial SD card | Health Status Monitoring |
Related categories
See hard drives in CCTV hard drives, recorders in video recorders and storage, and cameras in security cameras. See also Video Surveillance Servers and Video Encoders & Decoders.
Brands we stock in CCTV Memory Cards
Frequently asked questions
How does a CCTV camera with a memory card work?
The camera records video straight to a memory card in its own slot, so it can keep footage without a separate recorder. This is often called edge storage. Some systems also use the card as a backup that keeps recording if the network link to the recorder drops, then fill the gap later. Check the card format and largest capacity the camera supports.
What memory card does a CCTV camera need?
A CCTV camera usually needs a high-endurance microSD or SD card made for constant recording, as ordinary cards can wear out sooner under nonstop writing. Look for a surveillance or industrial grade card, and check the card type and capacity the camera accepts. The range here includes Axis surveillance cards, Bosch industrial SD cards and a Kingston microSDXC card.
What size memory card do I need for CCTV?
Choose a card big enough to hold the number of days of footage you want to keep, because the camera usually overwrites the oldest recordings once the card is full. Resolution, frame rate, compression and recording on motion instead of continuously can change how much space a day of footage uses. Check the largest capacity the camera accepts before choosing. The range here includes surveillance cards in several capacities.
