Emergency Door Release
An emergency door release gives a manual override to a door secured by an electrical lock. This page holds green break glass and resettable call points in single, double and triple pole versions, IP67 weatherproof units for outdoor use, and spare glass elements, resettable elements and reset keys, from makers including STP, Knight Fire & Security, KAC by Honeywell and Safety Technology International.
- £ 1 01
CDVI Emergency Door Release, Resettable, Double Pole EM201
£ 13 52RRP: £16.22DU-GB/PTE Combined Green Press-to-Exit & Resettable Emergency Door Release, 12-24V

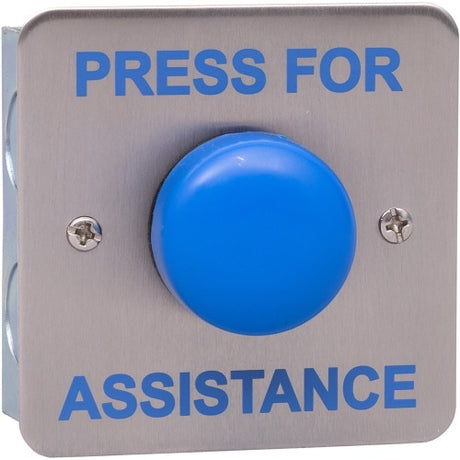

Robust Design£ 27 60RRP: £33.12Fast delivery Mon, 23 NovRGL Electronics EBB02/PFA plate, Blue
£ 22 01RRP: £26.41- £ 2,018 97
- £ 27 46
Choosing Emergency Door Release
Choose by how the unit resets, how many poles it switches, where it is fitted, and whether it needs a sounder or an exit button.
Break glass or resettable

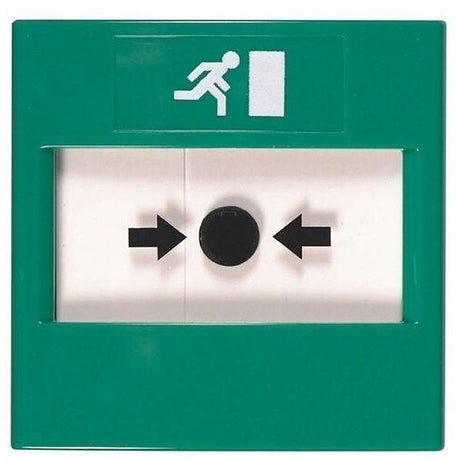

On the STP-KGG200SG the breakable glass element must be replaced after each activation. Several resettable units reset with a key instead: the STP-CP22 is easily resettable with the key supplied, the Hoyles MCP-GS-11 has a simple key to reset the operating element with no broken glass, and the Knight MX74SGS can be reset with the provided key, with no need to replace broken elements.
Single, double and triple pole
The STP-KGG1SG is a single pole unit with NO, NC and COM contacts, the STP-CP22 and STP-KGG200SG are double pole, and the STP-KGG300SG and STP-CP3 are triple pole. On the CDVI EM200, the double pole allows for the control of the lock and provides a signal for monitoring the unit, for example to activate a sounder or trigger an access control device.
Outdoor units

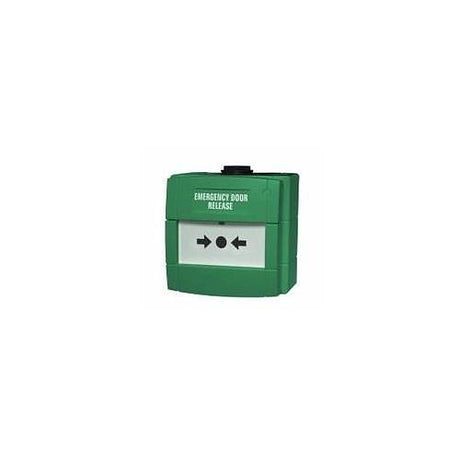

The STP WWG7-220G is a double pole weatherproof emergency door release rated IP67 that accepts breakable or resettable elements, and the STP WWG7-2001 is a single pole version with 20mm conduit connection points. The KAC W3A-G000SG-STCK-12 is sealed to IP67 for external use on access control systems, and the Knight MX87TWG is a triple pole call point for outdoor use with o-ring sealed cable entries.
Combined exit button and release
The CDVI DBB-22-04 combines a large green dome request-to-exit push button with a resettable double-pole emergency release in a UK double-gang back-box, and the CDVI DBB-22-02 pairs a stainless steel RTE with a double pole, resettable emergency switch.
| Model | Poles | Operation | Fitting |
|---|---|---|---|
| STP-KGG1SG | Single | Break glass unit | Surface or flush |
| STP-CP22 | Double | Resettable with key | Surface or flush |
| STP-KGG200SG | Double | Glass replaced after each activation | Surface |
| STP-KGG300SG-LSRC | Triple | Resettable, sounder and LEDs | Flush or surface |
| RGL WP-EDR-2 | Double | Key-resettable plate | Surface, IP67 |
| STP WWG7-220G | Double | Breakable or resettable element | IP67 |
Related categories
See exit buttons and door release, maglocks and manual call points. See also Door Loops & Cords.
Brands we stock in Emergency Door Release
3E Security, BPT, CDVI, CQR, Eaton, Honeywell Commercial Security, Honeywell Fire Systems, Hoyles, KAC by Honeywell, Knight Fire & Security, RGL Electronics, Safety Technology International and STP.
Frequently asked questions
What is an emergency door release key used for?

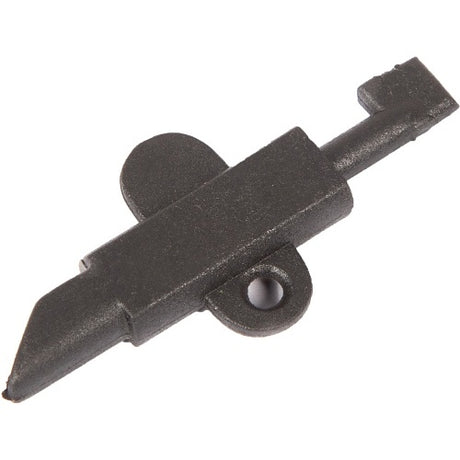

An emergency door release key resets a resettable unit after someone has pressed it, so the element returns to its normal position without fitting new glass. Some keys also let an installer test the unit without breaking anything. Keeping a spare key on site avoids delays if the original goes missing. The range here includes spare reset keys, glass elements and resettable elements.
How do you reset an emergency door release?
Insert the reset key supplied with the unit and turn it, which returns the resettable element to its normal position and lets the door lock engage again. A break glass type cannot be reset this way, so fit a replacement glass element instead. After resetting, check that the door locks correctly and that any sounder or indicator has cleared.
How do you install an emergency door release?
Mount the unit beside the door on the escape side, where people can see and reach it easily. Wire its contacts into the power supply of a fail-safe lock such as a maglock. Operating the unit breaks that circuit and releases the door. Use a weatherproof unit outdoors, and follow the maker's wiring instructions for the contacts.
Do emergency door releases set off alarms?
No, a green emergency door release is meant to unlock a door rather than raise the fire alarm, so it does not normally set off the building's alarm. Some units build in a local sounder to draw attention when used. A second set of contacts can also tell an alarm or access control panel that the release has been operated.
What is an emergency door release?
An emergency door release is a green call point fitted beside a door secured by an electric lock. Pressing it cuts power to the lock so people can get out in an emergency, even if the access control system fails. Units come as break glass or resettable types. The range here includes single, double and triple pole units and weatherproof versions.
