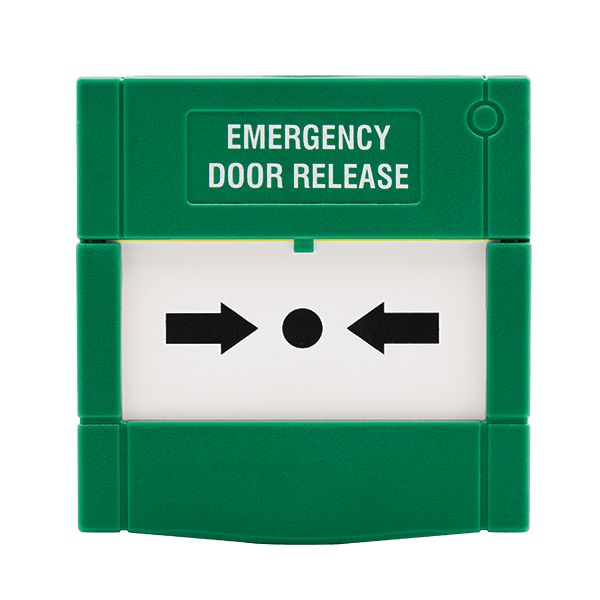

Aperta A1ECP Internal Green Call Point
£
12
70
(Incl. VAT)
2 Years Warranty
Internal Green Call Point
About this product
About this product
The Aperta A1ECP, from ESP's Access Control range, is an internal emergency call point in RAL 6016 green with a resettable frangible element and double pole double throw (DPDT) relays rated 3A at 125-250V AC. It mounts on the surface or flush, and a surface backbox is included.
Key features
- Green internal emergency call point, RAL 6016
- Resettable frangible element
- DPDT relays included; output relay rating 3A @125-250V AC
- Clear wording
- Fire resistant ABS, 87.5 x 87.5 x 32 mm, 0.17 kg
- Surface or flush mounting, surface backbox included
- Supplied with fixing screws, instructions and a reset key
Frequently asked questions
Is the A1ECP resettable?
Yes. It has a resettable frangible element, and a reset key is supplied.
What relays does the A1ECP have?
Double pole double throw (DPDT) relays, with an output relay rating of 3A @125-250V AC.
Can it be flush mounted?
Yes. It mounts on the surface or flush, and a surface backbox is included.
What colour is it?
Green, RAL 6016.
Are there spare keys and covers?
Yes. A1ECPKEY is a pack of 5 reset keys and A1ECPCVR a pack of 5 plastic covers.
-
Download
- A1ECP Tech Sheet
£
12
70
FAST delivery by Order within
Price
Technical Details
Specifications
Relay Voltage - Minimum (AC)
125
Colour
Green
Relay Voltage - Maximum (AC)
250
Relay Resistive Load Rating (A)
3
Materials
Fire Resistant ABS
Mounting
Surface or Flush (Surface Backbox Included)
Weight (Kg)
0.17
Warranty (Years)
2
Operating Temperature (°C)
-20 to +55
Relative Humidity Resistance (%)
0 to 95
Supplied
Surface Backbox, Fixing Screws, Instructions, Reset Key
Dimensions (mm)
87.5 x 87.5 x 32
RAL
RAL 6016
Relay/Contact Type
Double Pole Double Throw
Specifications
| Relay Voltage - Minimum (AC) | 125 |
|---|---|
| Colour | Green |
| Relay Voltage - Maximum (AC) | 250 |
| Relay Resistive Load Rating (A) | 3 |
| Materials | Fire Resistant ABS |
| Mounting | Surface or Flush (Surface Backbox Included) |
| Weight (Kg) | 0.17 |
| Warranty (Years) | 2 |
| Operating Temperature (°C) | -20 to +55 |
| Relative Humidity Resistance (%) | 0 to 95 |
| Supplied | Surface Backbox, Fixing Screws, Instructions, Reset Key |
| Dimensions (mm) | 87.5 x 87.5 x 32 |
| RAL | RAL 6016 |
| Relay/Contact Type | Double Pole Double Throw |
Internal Green Call Point features
Aperta A1ECP Internal Green Call Point
