Electric Strikes

An electric strike, or electric release, is fitted in the door frame in place of the normal strike so an access control or door entry system can release the door. The range covers ANSI, Euro and rim or surface mount releases, fail-safe and fail-secure models, monitored strikes and fire rated releases for fire doors. Brands include Adams Rite by ASSA ABLOY, STP, Abloy, Trimec and ASSA ABLOY.

Choosing Electric Strikes

Choose by how the strike behaves when power is lost, then by frame, monitoring and fire door needs.

Fail-safe or fail-secure

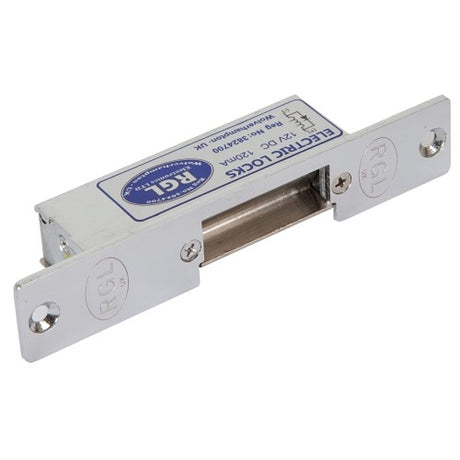

The RGL DS-002 is fail safe: power is applied to lock it. The ASSA ABLOY 50112020057 works the other way, opening when current is on and locking automatically when current is off. The ASSA ABLOY 50382005100 can be set either way, as fail locked or fail unlocked, and the STP STP-ER310L, STP-GK1800-2P and Trimec 112002-000 are also selectable in the field, while the CDVI GAEIR-24 is fail safe and the CDVI GAER24CC is fail secure.

Frames and doors

The Adams Rite 7101-340-628 has a radiused faceplate for the rounded nose of the inactive leaf of paired doors, and its compact mechanism fits an aluminium jamb section as shallow as 44.45mm. The Adams Rite 7108-315-628 suits aluminium, timber and steel doors where conformance to EN 1125 or EN 179 is required. The STP STP-ER310L is recommended for timber door frames and the STP STP-ER310S for metal door frames, and the CDVI SIR24 is a narrow strike suitable for UPVC doors and multipoint locking.

Monitoring

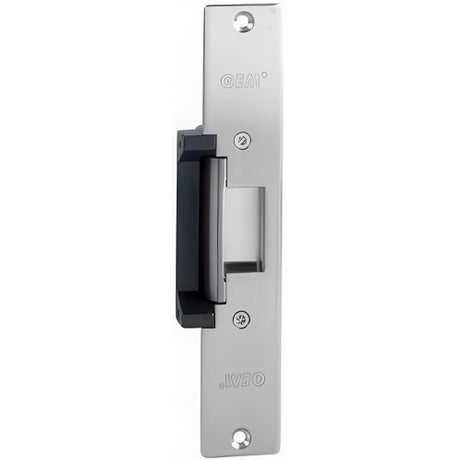

The STP STP-GK700 is dual monitored, with lock monitoring and door status monitoring contacts, and the Trimec 112100-000 is fully monitored with an integrated door position (reed) switch. The ASSA ABLOY 50382005100 has a microswitch that monitors latchbolt engagement, and the STP STP-ER310LM is a monitored 12Vdc ANSI style release with a long faceplate.

Fire doors and pre-load

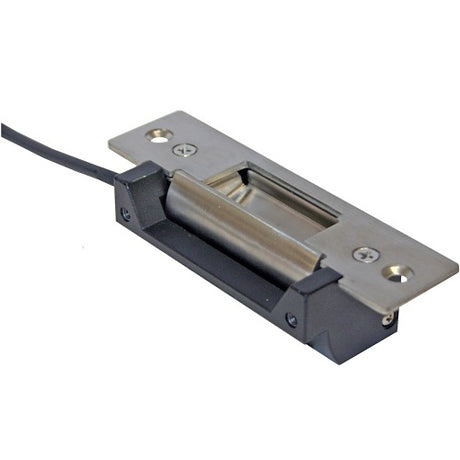

The Rutland RAL900 is fire rated for use on 30min timber doors to BS1634-1, and the STP STP-GK231M-L is a fail safe Euro release that reliably unlocks even while a side load is applied to the jaw, which makes it suitable for fire doors. The Trimec 119001-010 operates under up to 25kg of pre-load on the keeper, a condition caused by pulling on a door before it unlocks, by warped or drooping doors, or by seals on fire doors.

ModelFail modeKey feature
STP-ER310LField selectable12Vdc ANSI style, long faceplate

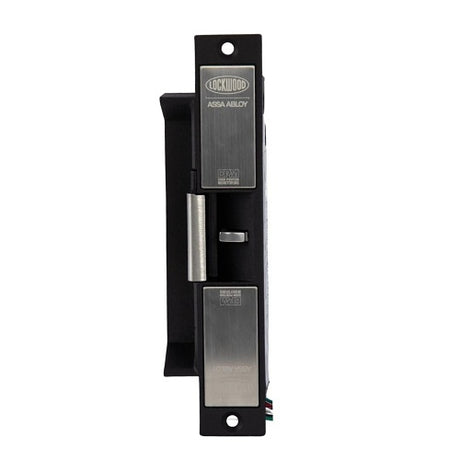

Trimec 112100-000Field selectableIntegrated door position (reed) switch, 10VDC to 30VDC
Rutland RAL900SelectableDual voltage 12/24VDC, fire rated for 30min timber doors
STP-GK231M-RFail safeOpens under side load, monitored

Related categories

See electric strike accessories, maglocks, access control power supplies and exit buttons and door release. See also Maglock Brackets & Accessories and Electric Deadbolts.

Brands we stock in Electric Strikes

Abloy, Acre, Adams Rite by ASSA ABLOY, Alpro, ASSA ABLOY, Bell System, Briton, CDVI, Codelocks, CQR, Fermax, RGL Electronics, Rutland, STP, TDSi, Trimec and Videx.

Frequently asked questions

What is an electric strike?

An electric strike is an electrically controlled keep that replaces the standard strike plate in a door frame, so an access system can release a latched door. It suits doors that already have a mortice or rim latch, because the lock stays in place and keys still work. Strikes often pair with keypads, card readers and door entry panels. The range here includes ANSI and Euro style strikes.

How do you install an electric strike?

Cut a pocket in the door frame to the maker's template, fit the strike in place of the old keep and line its jaw up with the latch. Run the cable through the frame to the controller and connect it. Test that the latch releases cleanly and that the door relocks when shut. Fire doors need a fire-rated strike fitted to the maker's instructions.

How does an electric strike work?

A solenoid inside the strike holds a hinged jaw shut against the door's latch. When the access system switches the power, applying it on a fail-secure strike or cutting it on a fail-safe one, the jaw can swing open and the latch slips past as the door is pushed. Once the door shuts, the latch springs back into the keep. Monitored versions can report whether the latch is engaged.

Does an electric strike need a power supply?

Yes, an electric strike needs a low-voltage supply, usually from the access controller, door entry system or a separate power supply unit. Many strikes typically run on 12V or 24V DC, and some can be switched between voltages on site. Check whether the strike needs AC or DC, and add battery backup where entry must keep working in a mains failure.
