DMX Controllers & Accessories

A DMX controller sends DMX512 signals down a chain of lighting fixtures, each set to its own channels, so one desk can control colour, intensity and movement across a whole rig. This range includes QTX controllers from a 24-channel mini desk to a 512-channel DMX/RDM controller, with DMX boosters to branch the line and dimmer and relay packs that let the desk control mains lighting.

Choosing DMX Controllers & Accessories

A DMX controller sends DMX signals that control stage lighting fixtures; the QTX 154.103UK, for example, divides its 192 channels between 12 fixtures. Size the controller to the rig, then add what the DMX line needs to reach the fixtures and switch non-DMX loads.

Controller size

The QTX 154.100UK is a 24 channel mini controller running on 12V DC, for a small event. The 154.093UK and 154.103UK are 192 channel controllers handling 12 fixtures, the 154.093UK with 16 faders and MIDI. The 154.105UK controls 512 channels with RDM and a USB backup, in a metal chassis.

To choose, total the channels your fixtures need in the modes they will run in, then leave a margin for more. The 154.110UK dimmer pack has a pulse feature that keeps lamp filaments warm, while a relay pack such as the 154.111UK switches power fully on and off, which QTX recommends for low-voltage LED effects that turn on and off randomly on a dimmer pack's pulse voltage. The 154.105UK handles 32 fixtures of up to 32 channels each, against 12 fixtures of up to 16 channels on the 154.093UK and 154.103UK.

Boosting and splitting the line

A DMX booster/distributor takes one input and feeds several outputs, so the signal can branch to separate runs. The QTX 154.101UK has 4 outputs and is opto isolated, and the 154.102UK has 8 outputs.

Switching and dimming mains loads

Dimmer and relay packs let a DMX desk control ordinary mains lighting. The 154.110UK is a 4 channel dimmer pack with a pulse feature, and the 154.111UK relay pack switches 8 IEC outputs, 2 per channel on its 4 channels. The 154.113UK relay pack switches 12 IEC outputs from a 30A input.

ModelTypeCapacity
QTX 154.100UKMini controller24 channels
QTX 154.093UKController, MIDI192 channels, 12 fixtures, 16 faders
QTX 154.105UKDMX/RDM controller512 channels
QTX 154.102UKBooster/distributor1 input, 8 outputs
QTX 154.113UKRelay pack12 IEC outputs

Brands we stock in DMX Controllers & Accessories

QTX.

QTX supplies the controllers, boosters and packs.

Related categories

For architectural and commercial lighting rather than stage, see LED strip lights and track lighting.

Frequently asked questions

What is a DMX controller used for?

A DMX controller sends DMX512 data to lighting fixtures, each addressed to its own channels, so one desk controls colour, brightness, strobe and movement across a rig. QTX controllers here run from a 24 channel mini desk for small events to a 512 channel DMX/RDM controller.

How many channels does my DMX controller need?

Add up the channels the fixtures use in the modes you will run them. A handful of simple fixtures fits the QTX 24 channel mini controller, 12 fixtures fit the 192 channel controllers, and larger rigs suit the QTX 154.105UK with 512 channels.

What does a DMX booster do?

A DMX booster/distributor takes one DMX input and sends it to several outputs, so the line can branch to different parts of a stage or venue. The QTX 154.101UK has 4 outputs and is opto isolated, and the 154.102UK has 1 input and 8 outputs.

Can I control non-DMX lights from a DMX desk?

Yes, through a dimmer or relay pack. The QTX 154.110UK 4 channel dimmer pack dims mains lighting from DMX, and the QTX relay packs switch loads on or off through IEC outputs, 8 on the 154.111UK (2 per channel) and 12 on the 154.113UK with its 30A input.

What is RDM in a DMX controller?

RDM, remote device management, lets a controller talk back to compatible fixtures over the DMX line, for example to set their addresses remotely. The QTX 154.105UK is a 512 channel DMX/RDM controller with a metal chassis and USB backup, running on 12Vdc.

Is there a DMX controller with MIDI?

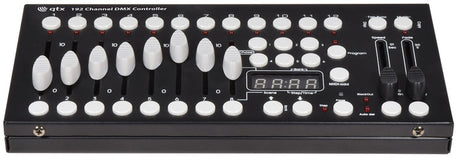

Yes. The QTX 154.093UK is a 192 channel DMX controller for 12 fixtures with 16 faders and is MIDI compatible, so scenes and chases can be triggered from a MIDI device. The 154.103UK is a portable, lightweight 192 channel version for 12 fixtures.

What is a DMX relay pack?

A DMX relay pack switches mains loads on and off from DMX channels, for fixtures or effects that are switched rather than dimmed. The QTX 154.111UK has 4 DMX channels, each with 2 IEC power outputs, and can be wall mounted, and the 154.113UK has 12 IEC outputs from a 30A input.

Which of these DMX units run on 12V DC and which on 230V?

The QTX 154.100UK mini controller runs on 12V DC and the 154.105UK DMX/RDM controller on 12Vdc, while the 154.101UK and 154.102UK boosters and the 154.110UK dimmer pack are 230V units. The 154.113UK relay pack switches its 12 IEC outputs from a 30A input, so check the supply circuit before wiring it in.
