Flame Detectors
Flame detectors sense the ultraviolet or infrared radiation that flames emit, so they can raise a fire alarm on an open flame. This page has UV, single IR, dual IR, triple IR (IR3) and UV-IR flame detectors from makers including Apollo Fire, Fike, Hochiki and Kidde, plus a Takex flame sensor designed to hook into an existing intruder or CCTV system.
Siemens Flame Detector, Three Infrared Sensors, ASAtechnology, IP67 FDF241-9
£ 1,183 38RRP: £1,420.06Hochiki Marine Approved Flame Detector, Conventional, Single IR, 25 m DRD-EM
£ 433 73RRP: £520.48Apollo Conventional Intrinsically Safe IR3 Flame Detector, ATEX 55000-063APO
£ 2,244 76RRP: £2,693.71Apollo Conventional IR2 Flame Detector, Selectable Outputs, IP65 55000-060APO
£ 1,745 38RRP: £2,094.46Apollo Marine Intelligent UV/IR2 Flame Detector, Base Mounted 55000-028MAR
£ 1,255 01RRP: £1,506.01Apollo Intelligent UV/IR Flame Detector, Base Mounted, XP95 and Discovery 55000-023APO
£ 997 84RRP: £1,197.41Apollo Intelligent Flameproof Exd IR3 Flame Detector, ATEX, IP66 55000-021APO
£ 2,901 16RRP: £3,481.39Hochiki Intrinsically Safe IR3 Flame Detector, ATEX Zones 0, 1 and 2 IFD-E(IS)
£ 3,301 07RRP: £3,961.28Apollo Conventional UV/IR2 Flame Detector, Class 1, IP65 55000-064APO
£ 2,164 09RRP: £2,596.91Apollo Intelligent UV Flame Detector, Base Mounted, XP95 and Discovery 55000-022APO
£ 831 53RRP: £997.84Notifier FSL100-UV flame detector, Red

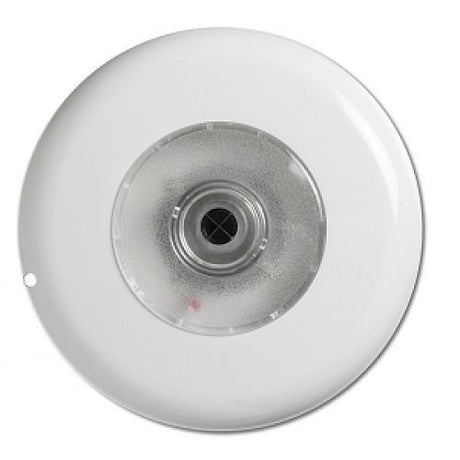

£ 2,294 58FireClass 516.600.006 flame detector

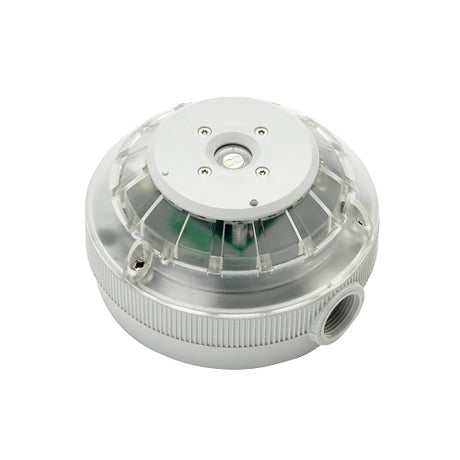

£ 322 46Kidde BG-21 ir conventional detector, Grey
£ 1,017 32Hochiki IFD-E detector alloy housing, Red
£ 3,015 63Takex FS1000E flame sensor, White
£ 117 44Fike FIK-UV-IR-AS11 flame detector
£ 3,533 26Hochiki DRD-E flame detector, White
£ 368 93- £ 6,051 01
Choosing Flame Detectors
Choose by the radiation the detector senses, infra-red, ultraviolet or the two together, then by where it will be mounted and what it connects to.
IR flame detectors
The Hochiki DRD-E fits any of the CDX range of mounting bases, has twin LEDs for 360 degree viewing and is approved by LPCB and VdS, with Class 1 performance as defined in BS EN54-10:2002. The Kidde BG-21 has an IP66 housing and low current consumption. The Apollo Fire 55000-295APO is an XP95 Exd flame detector (IR2) and is flameproof.
Triple IR flame detectors
The Apollo Fire 55000-024APO is designed to protect indoor areas, even in dirty or smoky conditions where open flaming fires may be expected, and is a compact flame detector which fits into Discovery or XP95 bases. The Fike FIK-IR3-AS11 uses triple IR (IR3) technology and logs alarms, faults and other relevant events to non-volatile memory.
UV and UV-IR flame detectors
The Apollo Fire 55000-027MAR is a base mounted UV flame detector that responds to flames up to 25m away. The Fike FIK-UV-IR-AS11 UV-IR flame detector has a window heater to avoid condensation and icing, and a tilt mounting bracket that can be connected either above or below the detector.
Light industrial and security system models
The Notifier FSL100-UV is part of the FSL100 range of light industrial/commercial flame detectors. On the Takex FS1000E flame sensor, easy separation of the sensor unit from the base simplifies installation and maintenance, and when a battery power source is used a low battery condition is annunciated by an internal buzzer and external LED.
| Model | Sensing | Detail |
|---|---|---|
| Hochiki DRD-E | Single IR | Fits CDX mounting bases |
| Kidde BG-21 | Dual IR | IP66 housing |
| Apollo Fire 55000-295APO | IR2 | Flameproof |
| Apollo Fire 55000-024APO | Three IR sensors | Fits Discovery or XP95 bases |
| Fike FIK-IR3-AS11 | Triple IR (IR3) | Window heater |
| Apollo Fire 55000-027MAR | Single UV sensor | Base mounted |
| Fike FIK-UV-IR-AS11 | UV-IR | Window heater |
Related categories
See smoke and heat detectors in fire detectors, mounting bases in fire detector bases, and the wider fire alarm systems range. See also Beam Smoke Detectors.
Brands we stock in Flame Detectors
Apollo Fire, Fike, FireClass, Hochiki, Kidde, Notifier and Takex.
Frequently asked questions
What is flame monitoring?
Flame monitoring is the continuous watching of an area or process for the radiation that flames give off, so a fire, or a burner flame going out, is spotted quickly. In fire safety, flame detectors watch spaces such as fuel stores, process plant and large open areas and signal the fire alarm system. The range here includes UV, IR and combined UV/IR detectors.
What is a flame detector?
A flame detector is a fire detector that responds to the ultraviolet or infrared radiation a flame gives off, rather than to smoke or heat. It suits fires that burn cleanly with little smoke, such as alcohol, gas or hydrogen fires, and needs a clear line of sight to the risk. For fire alarm systems, look for performance classed under EN 54-10.
What sensors do flame detectors use?
Flame detectors use ultraviolet sensors, infrared sensors or a combination of the two. UV sensors respond very quickly but smoke and oil films can weaken them, while multi-wavelength IR sensors compare several infrared bands to reject sunlight and hot objects. UV/IR detectors typically need the two signals together before alarming. The range here includes UV, single IR, dual IR, triple IR and UV/IR detectors.
How does a flame detector work?
A flame detector watches its field of view for the ultraviolet or infrared energy a flame emits, and many also look for the flicker typical of burning fuel. When the signal persists, it sends an alarm to the fire panel or switches a relay. Built-in self-tests on some models check the optics and window for dirt. The range here includes detectors with event logging.
