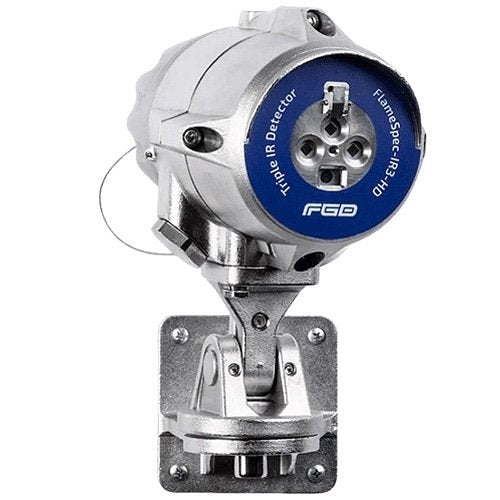

Fike FIK-IR3-AS11 ir flame detector, Stainless Steel

Free Delivery
£ 4,465 47
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Fike FIK-IR3-AS11 is an ir flame detector.

The IR3 flame detector offers ultra-fast response, high performance and reliable detection of all types of hydrocarbon fires (visible and non-visible). The detector addresses slow-growing fires as well as rapid fire outbreaks using improved triple IR (IR3) technology. It operates in all weather and light conditions with the highest immunity to false alarms.

Additionally, the integral event recording, combined with the proven superior capabilities of Triple IR (IR3) flame detection, provides a very powerful safety tool to protect your personnel, plant and process.

Key features

  • High immunity to false alarm
  • Extreme sensitivity – up to 260'(80m) for a 1 ft2 (0.1m2 ) n-heptane pan fire
  • Ultra-fast detection mode – detection within 40 milliseconds for fireballs or explosions
  • 1.3 seconds detection time – for 1 ft2 (0.1m2 ) n-heptane pan fire at up to 50 ft. (15m) distance
  • Data/Event logger – alarms, faults and other relevant events are logged to non-volatile memory
  • Built-in-Test (BIT) – Automatic and manual self-test of window cleanliness and the overall operation of the detector
  • Window heater to avoid condensation and icing
  • Tilt mounting bracket can be connected either above or below the detector
£ 4,465 47
Google Top Quality Store · Rated Exceptional
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£4,465.47 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Fike
Manufacturer Part Number
FIK-IR3-AS11
Product Type
Flame Detector
General information
Application/Usage
Fire Alarm
Technical information
Wireless Technology
Infrared
Physical characteristics
Depth
89.90mm
Height
140.00mm
Material
Stainless Steel
Weight
2.99kg
Width
89.90mm
Power description
Input Voltage
18-32V DC
Miscellaneous
Package Contents
IR3 Flame Detector Weather Shield Adapters for Connecting Different Mounts
Attributes
Input Voltage
18-32V DC
Package Contents
IR3 Flame Detector Weather Shield Adapters for Connecting Different Mounts
Weight
2.99kg

Specifications

Brand Name Fike
Manufacturer Part Number FIK-IR3-AS11
Product Type Flame Detector

General information

Application/Usage Fire Alarm

Technical information

Wireless Technology Infrared

Physical characteristics

Depth 89.90mm
Height 140.00mm
Material Stainless Steel
Weight 2.99kg
Width 89.90mm

Power description

Input Voltage 18-32V DC

Miscellaneous

Package Contents IR3 Flame Detector Weather Shield Adapters for Connecting Different Mounts

Attributes

Input Voltage 18-32V DC
Package Contents IR3 Flame Detector Weather Shield Adapters for Connecting Different Mounts
Weight 2.99kg

Fike FIK-IR3-AS11 ir flame detector

Fike FIK-IR3-AS11 ir flame detector, Stainless Steel

Who this is for

For the installer — this is the ir flame detector supplied under Fike part number FIK-IR3-AS11. Specify it by that part number.

In plain English: this is an ir flame detector made by Fike. The part number FIK-IR3-AS11 is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this ir flame detector is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods.

We do not quote a warranty term for this part.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact ir flame detector I have been quoted? Check the manufacturer part number FIK-IR3-AS11 against your quote. That code is the only reliable identity for this item.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Fike FIK-IR3-AS11 ir flame detector
Fike

Fike FIK-IR3-AS11 ir flame detector, Stainless Steel

£4,465.47

Please note: this is a non-returnable item (excluding faulty goods)

Fike FIK-IR3-AS11 is an ir flame detector.

The IR3 flame detector offers ultra-fast response, high performance and reliable detection of all types of hydrocarbon fires (visible and non-visible). The detector addresses slow-growing fires as well as rapid fire outbreaks using improved triple IR (IR3) technology. It operates in all weather and light conditions with the highest immunity to false alarms.

Additionally, the integral event recording, combined with the proven superior capabilities of Triple IR (IR3) flame detection, provides a very powerful safety tool to protect your personnel, plant and process.

Key features
