CCTV Installation & Accessories

Plan the fixing, then the cable joint and power, then the screen and extras.

Brackets and mounts

Brackets come as wall, pole, corner and pendant types. The Hikvision DS-1275ZJ-S-SUS is a stainless steel pole mount for round poles of 67-127 mm with a 10 kg maximum load, the DS-1276ZJ-SUS-Black corner bracket works with a wall mount, and the DS-1471ZJ-155 is an aluminium pendant for dome cameras with a cable gland for through-wiring.

Junction boxes and deep bases

A junction box or deep base hides the cable joint. The Hikvision DS-1280ZJ-S has side and bottom cable outlets with a waterproof cover and gland nut for outdoor use, and the HDview DBW3 deep base has two 25mm cable entries for HDview IP and Rekor IP dome and turret cameras.

Poles and columns

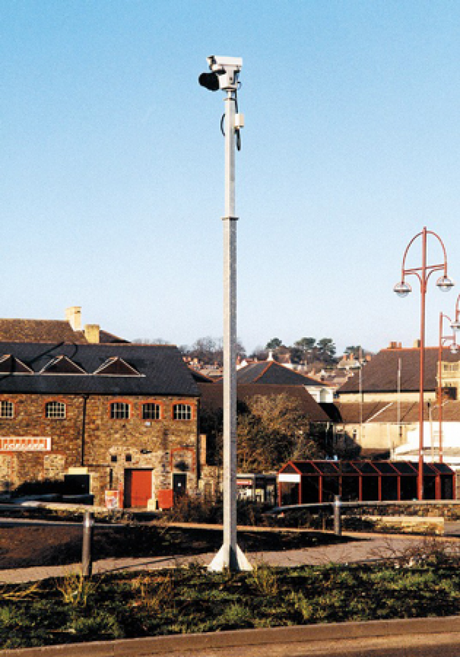

A pole or column lifts a camera where no wall is in place. The Altron ACP4/150 is a 6.0m hot-dip galvanised wall-mount pole with a 150mm stand-off, and the Altron ACC4PM is a 9m tilt-down column with demountable winches so the camera can be serviced from the ground.

Power and cabling

The Haydon HAY-PSU12V5ABBL is a 13.8V boxed supply of up to 5A with battery charging, sized for 7Ah or 17Ah batteries, and the ESP CPS9-CL is a 12Vdc 9x1 Amp boxed CCTV supply. RG59 shotgun cable such as the SFX/59+2C-0.5-PVC-WHT-100 runs video and two power cores together, and the Haydon HAY-HDPVB02 balun sends HD video and power over network cable.

Screens, light and weather

The Hikvision DS-D5043U3-1V0S is a 43-inch 4K monitor; the ESP TMPROSHD test monitor helps set up cameras during installation. The GJD Clarius Plus IS-8 infrared illuminator reaches up to 132m, and the Hikvision DS-1250ZJ rain shade diverts rain from a dome camera.

Hikvision supplies the most products on this page.

Related categories

Match hardware to the camera in camera mounts and brackets and CCTV junction boxes, and cabling in BNC connectors and CCTV cable. Power is in CCTV power supplies and screens in CCTV monitors. For the cameras themselves see CCTV cameras.
