Introduction to the FS-12D1000-A and its key features

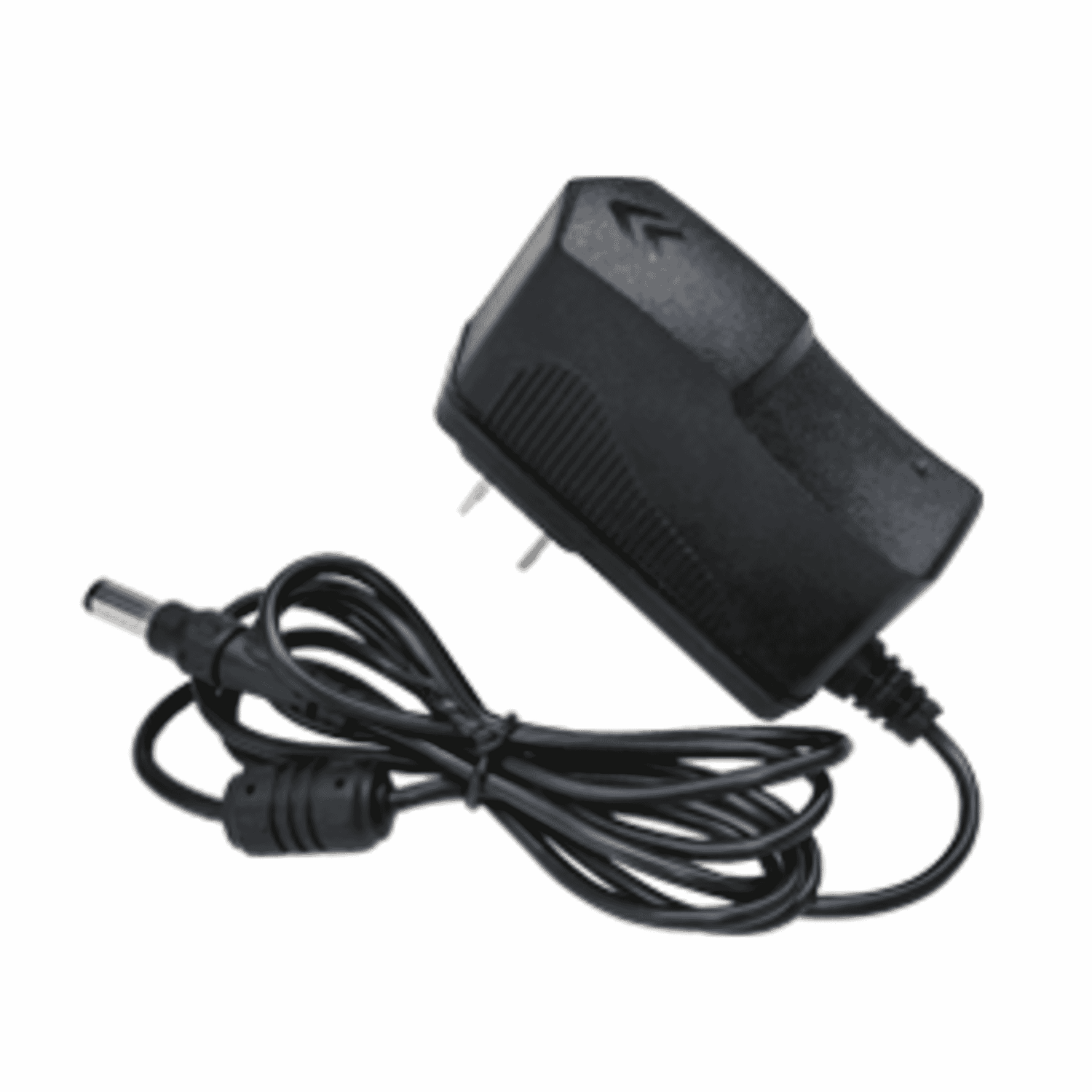

FS-12D1000-A — 12V DC, 1A plug-top adapteris a compact, wall-mounted power supply designed to provide a simple 12 V DC feed for low-power electronics. With a standard 2.1 mm barrel plug and centre-positive polarity, this adapter is tailored for single-device installations such as CCTV cameras, small routers, baluns and other devices that require up to 1 A (12 W) of power.
Detailed description of specifications and benefits
The FS-12D1000-A's core specifications are straightforward and focus on delivering a stable 12 V DC output with a maximum current of 1 A (12 W). Key technical points include:
- Output:12 V DC, 1 A (12 W) — suitable for many low-power devices commonly found in home and small commercial installations.
- Connector & polarity:Standard 2.1 mm barrel plug, centre positive — this is one of the most common DC barrel formats, making the unit compatible with a wide range of equipment.
- Form factor:Plug-top / wall adapter — the integrated mains plug makes it easy to connect to a wall outlet without an external power brick or separate cable.
- Input range:Wide-range mains input commonly documented for this product family (approximately 96–264 V AC). Always confirm the exact input rating on the product label or manufacturer spec sheet prior to use.
Benefits of these specifications include:
- Simplicity and convenience:The plug-top form means no bulky power supply to stash, and it can be swapped quickly in the field when replacing lost or damaged adapters.
- Compatibility:The 2.1 mm barrel and centre-positive polarity match many CCTV cameras, PoE baluns, small routers and other devices, reducing the need to hunt down specialized adapters.
- Compact footprint:Wall-mounted design is unobtrusive and easy to install in home or commercial environments.
Important caveats:Some product listings do not consistently document protections such as over-voltage (OVP), over-current (OCP) or short-circuit protection (SCP), nor do they always include clear certification markings. If you require CE/UKCA, EN/UL approvals or specific efficiency-level claims for customer-facing use, obtain the official Folksafe spec sheet or a product-label photo to confirm. Additionally, packaging contents and cable length can vary between resellers—check the manufacturer documentation before purchase.
Use cases and scenarios where the FS-12D1000-A excels
The FS-12D1000-A is designed for straightforward, single-device power applications. Typical use cases include:
- CCTV cameras:Many analog and some compact IP cameras require 12 V DC at currents under 1 A. This adapter provides an easy replacement power source for lost or failing adapter units.
- Baluns and low-power video equipment:Devices that transmit video signals over coax or twisted pair and draw modest current are ideal candidates.
- Small networking gear:Mini routers, switches or access points with low current draw and a 2.1 mm centre-positive input can be powered by this adapter for temporary or permanent installations.
- DIY electronics and hobby projects:Makers building small projects that need a stable 12 V supply will appreciate the convenience of a plug-top unit that removes the need for a bench power supply.
- On-site maintenance and emergency replacements:Electricians and security installers often keep low-cost wall adapters like this on hand as quick replacements during service calls.
Where the FS-12D1000-A particularly excels is in convenience and cost-effectiveness for low-power, single-device deployments. It is not intended for high-current devices or situations where a multiplicity of outputs, advanced protections or guaranteed efficiency certifications are required.
Comparisons with similar products in the market
In the crowded market of 12 V plug-top adapters, the FS-12D1000-A competes on price and simplicity. Here are a few comparison points to consider when choosing between this and other options:
- Generic 12 V 1 A adapters:Many manufacturers produce indistinguishable 12 V 1 A wall adapters. However, generic models vary greatly in documented protections and certifications—buyers should compare product labels or spec sheets.
- Higher-spec adapters (with certified protections):Some alternatives explicitly list OVP/OCP/SCP and include CE/UKCA/UL marks and efficiency level ratings (e.g., Level V). These units are better for installations where regulatory compliance or confirmed safety protections are mandatory, but they typically cost more.
- Multi-output or higher-current adapters:If you need to power multiple devices or devices drawing more than 1 A, a single higher-current adapter or a multi-output supply is a better choice. The FS-12D1000-A is strictly for low-power, single-device use.
- Powered USB alternatives:For devices that accept 5 V USB power (or USB-to-DC step-up solutions), USB power supplies are an alternative. For true 12 V devices with 2.1 mm barrel inputs, the FS-12D1000-A remains the direct, compatible option.
In short, the FS-12D1000-A is competitive where low cost and straightforward compatibility matter. If you need documented certifications, confirmed protection features or higher performance, evaluate higher-tier suppliers and request spec sheets or label photos.
Conclusion: why the FS-12D1000-A is a solid choice
The FS-12D1000-A 12 V 1 A plug-top power supply is a practical, low-cost solution for powering single, low-power devices that use a 2.1 mm centre-positive barrel connector. Its strengths are simplicity, compact form factor and affordability—making it ideal for CCTV cameras, baluns, small routers and DIY electronics projects. While documentation on protections and certifications can be inconsistent across reseller listings, the product serves well as a replacement or spare when confirmed compliance is not a strict requirement.
To summarise: choose the FS-12D1000-A if you want an economical, straightforward 12 V DC adapter for single-device use. If you need guaranteed safety certifications, efficiency ratings or explicit protection features for regulated installations, obtain the official spec sheet or consider a higher-tier certified alternative. Always isolate mains supply before installation and follow local wiring regulations when replacing or installing power supplies.
