Door Alarms

A door alarm sounds when a protected door is opened or left open too long. This page has Hoyles DorWatcher door held open alarms, Hoyles Exitguard fire exit door alarms such as the battery powered EX104GT and 12VDC EX105G, Exitguard units built for Grade 2 intruder alarm systems, Floor to Store kits for doors staff pass through, and Safety Technology International Exit Stopper alarms for fire and emergency doors.

Choosing Door Alarms

Door alarms sound a warning when a door is opened or is held open too long, including Hoyles fire exit and door-held-open alarms and STI multifunction door alarms.

Door held open alarms

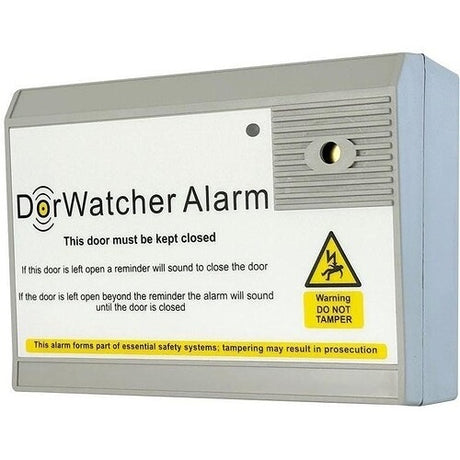

The DW304, DW305 and DW306 sound when a door stays open longer than an adjustable delay, set between 30 seconds and 7 minutes. The DW304 and DW306 are typically used on kitchen doors in student accommodation, to stop smoke from cooking drifting into corridors and causing fire alarm activations, and reset as soon as the door is closed.

Exitguard fire exit door alarms

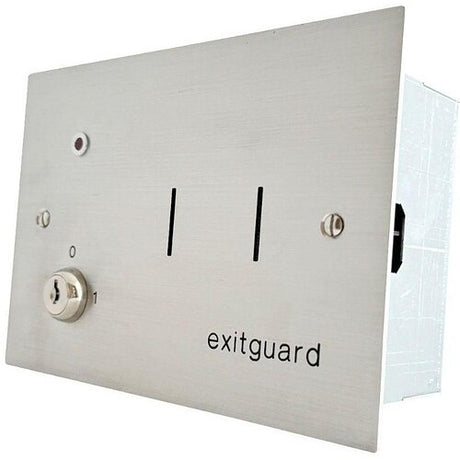

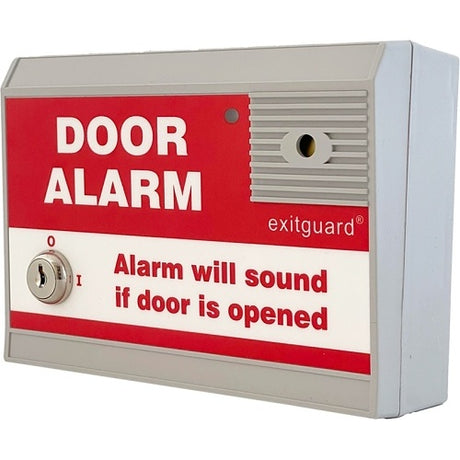

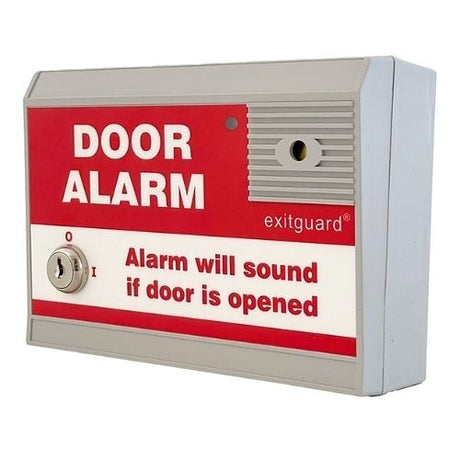

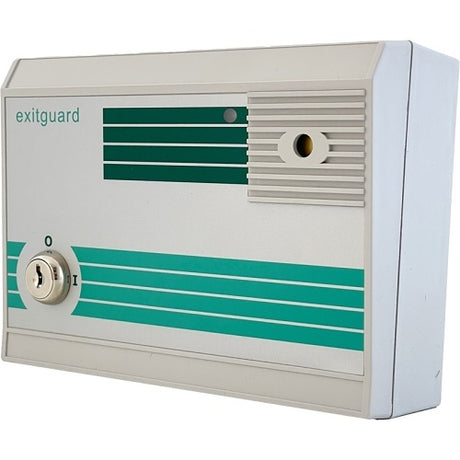

The EX104GT is battery powered with a battery fault monitor. The EX105G and EX105R are 12VDC powered, cannot be powered by batteries and have an alarm output relay for connection to remote systems. The EX106G and EX106R are mains powered with six AA batteries supplied for mains failure, and their integral power supply provides up to 200mA at 12Vdc for ancillary equipment. The EX105SF is a flush mount stainless steel version, and the EX105GKM adds a key position monitor switch output.

Alarms for intruder systems

The EX125i and EX125IS-HX are designed for Grade 2 intruder alarm systems, with a 108dB piezo sounder at 1m, keyswitch control with random key numbers and a supervised loop for on/off monitoring. The EX125IS-HX also suits harsh environments where physical damage may occur.

Kits and Exit Stopper alarms

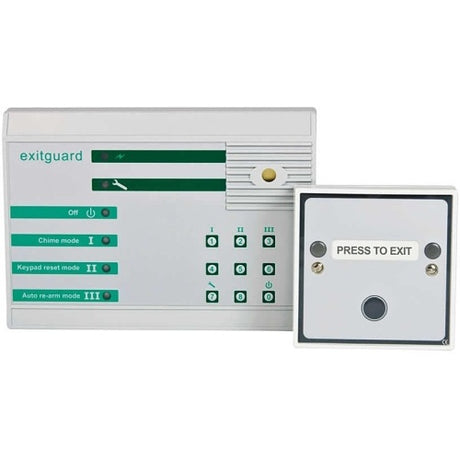

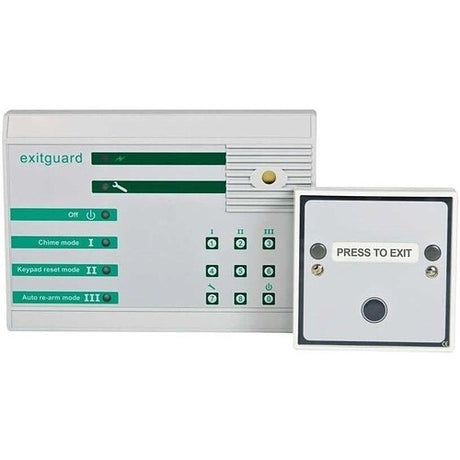

Floor to Store kits such as the EXF2S-DK and EXF2S-BK alarm a door that staff pass through frequently, with six selectable alarm tones and an alarm strobe. The STI-6400 Exit Stopper flashes while it sounds a 95/105 dB alarm, the STI-6402 is the double door version, and the STI-6400WIR adds wireless monitoring and a 12/24V DC connection. The STI-6400-RK kit is for remote installation.

ModelUseSounderFeature
DW304Door held open105dBAdjustable delay
EX104GTFire door, battery105 dBKeyswitch control
EX105GFire exit, 12VDC105dbAlarm output relay
EX106RFire exit, mains105 dBSix AA batteries supplied
EX125iGrade 2 intruder systems108 dB at 1mSupervised loop
EXF2S-DKPass through kit108db4 digit passcode
STI-6400Exit Stopper95/105 dBKey operated override

Related categories

Contacts for doors are in door contacts, and exit buttons in exit buttons and door release. See also door security, burglar and intruder alarms and fire and safety equipment.

Brands we stock in Door Alarms

Hoyles and Safety Technology International.

Frequently asked questions

What is an alarmed door?

An alarmed door is a door fitted with an alarm that sounds when it is opened, often a fire exit kept for emergencies. The alarm deters misuse and warns staff, while the door still opens normally for escape. A sign on the door usually warns that it is alarmed, and a key can silence the alarm for authorised use. The range here includes fire exit door alarms with key control.

What is a door alarm?

A door alarm is a device that sounds a warning when a door is opened, or when it is left open for too long. Standalone units guard fire exits or stop kitchen doors being propped open, while others connect to an intruder alarm panel. Look for a keyswitch or passcode if staff need to pass through. The range here includes fire exit, door-held-open and intruder-linked alarms.
