Panic Bars
Panic bars and push pads are exit hardware that releases an escape door when a bar or pad is pushed. This page covers a push-bar panic bolt, push-pad and rim panic latches, a mortice exit device for aluminium doors, a microswitch push bar for releasing magnetic locks, and a lock package with an outside handle, from Abloy, Briton, CDVI, Adams Rite by ASSA ABLOY and dormakaba.
CDVI DWSP-43 spring return PCB
£ 645 83
Abloy PACKAGE 1P-65MM lock package
£ 1,159 12
£ 369 14
Choosing Panic Bars
Start with the door, then check how the device locks and how it is released.
Panic latches and exit devices

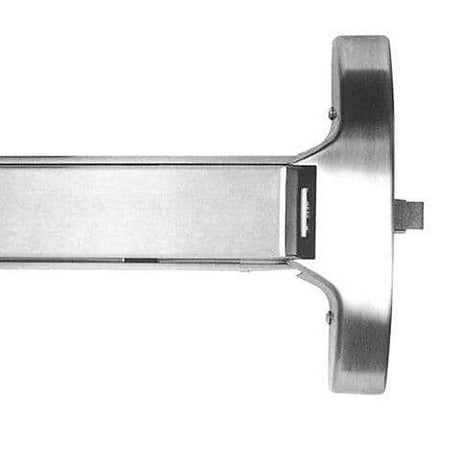

The dormakaba 97CFL463630MLR is a 9700 Series rim panic latch fitted completely to the face of the door: the 19mm dead-locking latchbolt engages a keeper, normally surface applied to the frame. The Adams Rite by ASSA ABLOY 940-00-3-7U3-628 is a 940 Series mortice exit device, a life safety device designed to fit into commercial aluminium door applications. The Briton 1438E/R/SE is an emergency push-pad panic latch designed to satisfy emergency exit applications. The Abloy PBE011-EL560 is a single-point mortice panic bar that includes an outside handle.
Door width and cutting to size
The 97CFL463630MLR is made to suit doors 610 to 915mm wide. On the Adams Rite 940 Series of the 940-00-3-7U3-628, the touch bar comes in 5 standard sizes, 600mm, 750mm, 900mm, 1050mm and 1200mm, and all can be cut down on site. The CDVI MSPB is 860mm wide and can be cut down to a minimum of 680mm for fixing to narrower doors.
Dogging, handing and latch retraction
On the Adams Rite 940 Series of the 940-00-3-7U3-628, touch bars can be dogged by allen key to allow passage mode at peak usage, then released to ensure entry by key only. The 97CFL463630MLR has hex key dogging as standard, with motorised latch retraction and a 463 keep. The Briton 1438E/R/SE is site reversible for left or right hand.
Abloy lock package
The Abloy PACKAGE 1P-65MM is a lock package that includes the EL560 solenoid lockcase, the CY326 single euro cylinder, the EA280 concealed door loop and the PBE011-EL560 panic bar with 1/2 handle set, with the DC240 door closer as an option.
| Model | Type | Door fit |
|---|---|---|
| dormakaba 97CFL463630MLR | Rim panic latch | Doors 610 to 915mm wide |
| Adams Rite by ASSA ABLOY 940-00-3-7U3-628 | Mortice exit device | Commercial aluminium doors |
| Briton 1438E/R/SE | Push-pad panic latch | Left or right hand |
| Abloy PBE011-EL560 | Single-point mortice panic bar | For the EL560 |
| CDVI MSPB | Microswitch push bar | 860mm wide, cuts down to 680mm |
Related categories
See magnetic locks in maglocks, closers in door closers, break glass units in emergency door release, and the wider door security range.
Brands we stock in Panic Bars
Abloy, Adams Rite by ASSA ABLOY, Briton, CDVI and dormakaba.
Frequently asked questions
Which push bars and pads suit emergency exit doors?

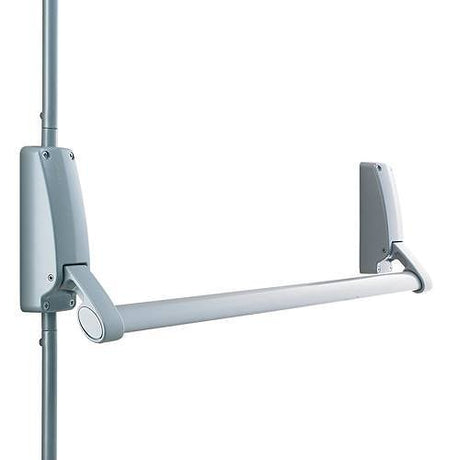

Choose a device designed for emergency exit applications, such as a push-pad panic latch, a push-bar panic bolt or a microswitch push bar. The Briton 1438E/R/SE is an emergency push-pad panic latch tested in excess of 200,000 cycles, and the Briton 376.SE panic bolt suits fire and smoke doors 665mm to 1300mm wide. The CDVI MSPB is a microswitch push bar for emergency exit doors that can be cut down to 680mm.
How does a microswitch push bar release a magnetic lock?
Pressing the bar switches the lock off. On the CDVI MSPB, pressing on the bar activates a microswitch, which in turn deactivates the locking device, and the MSPB is for releasing magnetic locks. The MSPB is designed to be mounted to a door leaf, with a simple surface mount and a double pole switch with COM/NC/NO contacts.
Can a panic latch or exit device be cut down for a narrower door?
Yes, panic latches and exit devices are often made to be cut on site to suit the door width. The dormakaba 97CFL463630MLR is a 9700 Series size CC device that fits a 915mm wide door and can be cut on site to suit a door 610mm wide. The Adams Rite 940-00-3-7U3-628 touch bar is supplied in 5 lengths that can be cut to size on site.
Can a panic bar be opened from the outside?
Yes, when it is paired with an outside access device, such as an outside handle or a key-operated cylinder. The Abloy PBE011-EL560 is a panic bar with an outside handle for the EL560 lockcase. The Abloy PACKAGE 1P-65MM adds the EL560 solenoid lockcase and a CY326 single euro cylinder, giving key override at all times from outside.
What is a rim panic latch?
It is a panic latch fitted completely to the face of the door, with a latchbolt that engages a keeper on the frame. The dormakaba 97CFL463630MLR is a 9700 Series rim panic latch with a 19mm dead-locking latchbolt, a keeper normally surface applied to the frame and motorised latch retraction. Its finish is satin stainless steel.
