Audio & Visual

Audio and visual equipment makes sound, carries it and puts pictures on a screen, for shops, offices, schools, venues, live events and homes. This collection gathers the whole AV range in one place: background music and PA speakers, amplifiers including 100V models, mixers, wired and wireless microphones, HDMI, audio and speaker leads with their connectors, projector screens and interactive displays, TV aerials, and the racks, cases and stands that hold the kit.

Choosing Audio & Visual

Start from the job, such as background music, a live PA, a presentation or a TV feed.

Background music and public address

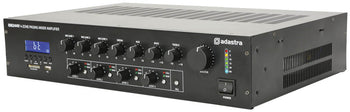

Installed background music and paging systems often use 100V line speakers fitted with a transformer and selectable volume tappings. The Adastra 952.281UK KV-T ceiling speaker has 3 tappings, and the 953.015UK UX series mixer-amplifier is a 240W 100V unit with Bluetooth, DAB+/FM and a USB player in a half-width 1U case. Where a speaker must be fire rated, the 952.205UK fire dome ceiling speaker is certified to EN 54-24.

Live sound and performers

Active PA cabinets such as the Citronic CASA 178.112UK carry their own class D amplifier, DSP with 5 profiles and a Bluetooth and USB/SD player. Passive cabinets such as the CASA 178.113UK are driven by a separate power amplifier. The Monolith mk3 171.237UK pairs an active subwoofer with a pole-mounted column. For vocals, the TU4 171.043UK runs 4 handheld UHF transmitters from one receiver, and the NU-X B-7 Pro 171.827UK sends a wireless in-ear monitor mix over up to 50m.

Leads, connectors and adaptors

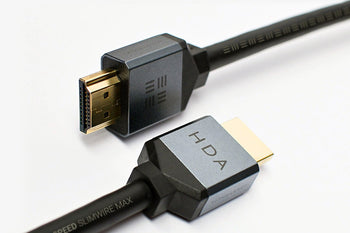

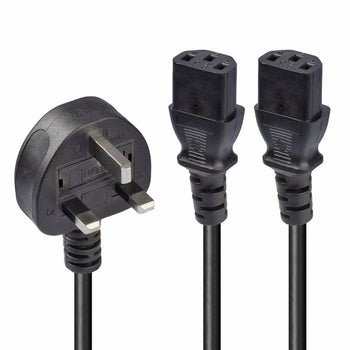

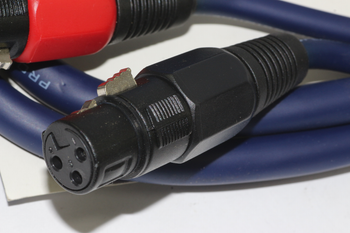

Leads and connectors make up a large part of the range, including HDMI, audio, guitar and mains leads. For speaker lines, connectors such as the Neutrik 763.481UK Speakon take a twist lock and are rated up to 37A rms.

Screens, displays and TV

Projector screens include electric and manual pull-down models. Interactive flat panels such as the Hikvision DS-D5C86RB/B combine an 86" 4K touch screen with Android 14, a camera and microphones for conferencing. TV parts include indoor and outdoor aerials and distribution amplifiers such as the Mercury 130.031UK, a 4-way unit with a 5G/4G filter.

Most of the range comes from Adastra, AV:Link, Citronic and QTX.

JobWhat to look atExample
Background music100V ceiling speaker and mixer-amplifierAdastra 952.281UK, 953.015UK
Fire-rated speakerEN 54-24 ceiling speakerAdastra 952.205UK
Live PAActive PA cabinetCitronic 178.112UK
Compact band PASubwoofer and column setCitronic 171.237UK
Wireless vocalsUHF system with 4 handheldsCitronic 171.043UK
In-ear monitoringWireless IEM systemNU-X 171.827UK
Presentations86" interactive flat panelHikvision DS-D5C86RB/B
TV in several rooms4-way distribution amplifierMercury 130.031UK

Related categories

Go to speakers, PA speakers and systems, amplifiers and mixers or microphones, find adaptors in AV adapters, fit out a rack in AV install and accessories, or read our Help & Support guides.

Brands we stock in Audio & Visual

Adastra, AV:Link, B-Tech, Chord, Citronic, Folk Safe, Haydon, Hikvision, Maxhub, Mercury, Neutrik, NU-X and QTX.

Frequently asked questions

What is a 100V line speaker system?

It is an installed PA system in which the speakers carry 100V transformers with volume tappings, so one amplifier can feed many speakers on the same line. The Adastra KV-T ceiling speakers have 3 tappings, and the 952.205UK has four, from 0.75W to 6W. A 100V mixer-amplifier such as the 953.015UK drives the line and adds sources such as Bluetooth and DAB+.

Should I choose an active or a passive PA speaker?

Choose active for a quick setup and passive when you already have, or want, a separate amplifier. The Citronic CASA 178.112UK is active, with a class D amplifier, DSP and a Bluetooth player built in. The CASA 178.113UK is passive, with a 35mm pole-mount socket, and can be driven by a power amplifier such as the Citronic 172.103UK, a 1U unit rated 2 x 150W RMS.

How many wireless microphones can one receiver run?

A quad receiver such as the Citronic TU4 171.043UK runs 4 handheld transmitters from one unit. It has four individually programmable UHF channels, a 7-band EQ per channel, individual XLR outputs or a mixed jack output, and licence-free operation at 863-865MHz in the UK and EU. The 171.044UK version uses 4 bodypacks with neckband and lavalier microphones.

Which speakers here are certified to EN 54-24?

Adastra makes the EN 54-24 speakers in this range. The 952.205UK is a 100V fire dome ceiling speaker with fire-resistant cable rated to 95°C. The 952.244UK F40V is an IP66 outdoor column speaker with a 95°C thermal fuse, and the 952.246UK and 952.247UK are weatherproof IP66 fire rated horn speakers at 15W and 30W.

What does an interactive flat panel do?

It is a large touch screen with its own computer, used for teaching, meetings and training. The Hikvision DS-D5C86RB/B is an 86" 4K panel with up to 50 touch points, Android 14, an integrated camera and an 8-array microphone. The DS-D5ABKY2-B trolley carries an 86-inch panel up to 135 kg, and the DS-D5SC3B-W dongle mirrors a laptop screen to the panel wirelessly.

How do I share one TV aerial between several rooms?

Use a splitter or a distribution amplifier between the aerial and the TV points. A passive splitter such as the Mercury 122.075UK divides one coaxial feed into 4. The Mercury 130.031UK is a 4-way distribution amplifier with 8dB gain, DC pass and a built-in 5G/4G filter that avoids interference from mobile signals, and the 130.033UK is an 8-way version.
