Battery Chargers

The chargers on this page are specialist units matched to particular equipment rather than household AA and AAA chargers: Opus Technologies charging stations for AuraSTRX receivers and IR-202R devices, Hikvision dock stations that charge body cameras and upload their footage, the Hikvision DS-MH1491 dome battery charger, C-TEC chargers for Quantec QT412 transmitters, the Mercury 690.004UK for 2V, 6V or 12V lead acid batteries, an Eaton UPS supercharger, a Scope pager charger and a Veracity PoE battery charger.

Choosing Battery Chargers

Match the charger to the device or battery it was designed for, then choose how many units it has to charge at once.

Receivers, transmitters and pagers

Opus Technologies charging stations hold AuraSTRX receivers in sets from the 2-slot AURA-CH2 to the 20-slot AURA-CH20, which is built into a flight case. The IR-5CH02 charges up to five IR-202R devices and mounts in a rack. For Quantec QT412 transmitters, C-TEC makes the plugtop QT424/1 and the ten-way QT424/10, with a typical full charge taking 14 hours, and the Scope EPOCSCHGUK charges Epoc pagers.

Body cameras

Hikvision dock stations such as the 8-port DS-MDS001/2T/8(B)(MCW409) charge body cameras while uploading their footage over a dual network interface, then clear the camera storage. ANR (Automatic Network Replenishment) helps prevent data loss.

Lead acid, UPS and PoE

The Mercury 690.004UK charges 2V, 6V or 12V lead acid batteries at 600mA, selected by a slide switch, with over current and reverse polarity protection and crocodile clips on a 1.8m lead. The Eaton SC240RT is a 240V DC supercharger for Eaton 9PX and 9SX 8kVA and 11kVA UPS systems. The Veracity VAD-CHGR is a spare charger for the VAD-PS PointSource battery PoE injector.

ChargerCodeChargesCapacity or rating
Smart charging stationOpus AURA-CH10AuraSTRX receivers10 slots, rack or desk mount
Charging dockOpus D-CH06AuraSTRX devices6 slots, LED status lights
Ten-way chargerC-TEC QT424/10Quantec QT412 transmitters10 ways, 14 hour charge
Dock stationHikvision DS-MDS001/2T/8(B)(MCW406)Body cameras10 ports, data upload
Lead acid chargerMercury 690.004UK2V, 6V or 12V batteries600mA
UPS superchargerEaton SC240RT9PX and 9SX UPS240V DC, 3U rack or tower

Brands we stock in Battery Chargers

C-TEC, Eaton, Hikvision, Mercury, Opus Technologies, Scope and Veracity.

Opus Technologies chargers serve its AuraSTRX receivers and IR-202R devices, and the Hikvision units are body camera dock stations and the DS-MH1491 dome battery charger.

Related categories

Find the cells and packs these chargers serve in batteries and battery packs and battery packs and modules. For household AA and AAA cells, see alkaline and rechargeable batteries, and our Help & Support guides cover charging batteries.

Frequently asked questions

Is there a charger for AA and AAA rechargeable batteries here?

No, the chargers on this page are for specific equipment rather than household AA and AAA cells. They charge devices such as AuraSTRX receivers, Quantec QT412 transmitters, Hikvision body cameras and Epoc pagers, and the Mercury 690.004UK charges lead acid batteries. For household cells, see the alkaline and rechargeable batteries range.

How do I charge a 6V or 12V lead acid battery?

Use a charger set to the battery voltage, such as the Mercury 690.004UK. Select 2V, 6V or 12V with its slide switch and connect the crocodile clips on the 1.8m fly lead; it charges at 600mA with over current and reverse polarity protection, and LEDs show charging and wrong polarity. The 690.004UK is designed for lead acid batteries, not lithium or NiMH cells.

Which Opus charging station should I choose for AuraSTRX receivers?

Choose by how many receivers you issue at once. The AURA-CH2 is a dual slot charger, the AURA-CH5 docks 5 receivers with auto-cutoff protection, the D-CH06 takes 6 with LED status lights, the AURA-CH10 charges 10 and mounts in a rack or on a desk, and the AURA-CH20 has 20 slots in a portable flight case.

What does a Hikvision body camera dock station do?

It charges body cameras and uploads their footage at the same time. The DS-MDS001/2T/8(B) dock stations have 8, 9 or 10 ports depending on the model and a dual network interface, and they clear camera storage after upload, with ANR to help prevent data loss. They can also play back video, audio and images and keep logs.

How long does a Quantec QT412 transmitter take to charge?

A full charge typically takes 14 hours on the C-TEC QT424 chargers. The QT424/1 is a single-way plugtop charger for a standard 13A socket, and the QT424/10 charges up to ten transmitters at once from an IEC lead, wall or desk mounted. Transmitters can stay on the QT424/10 after charging, as it is designed to prevent overcharging.

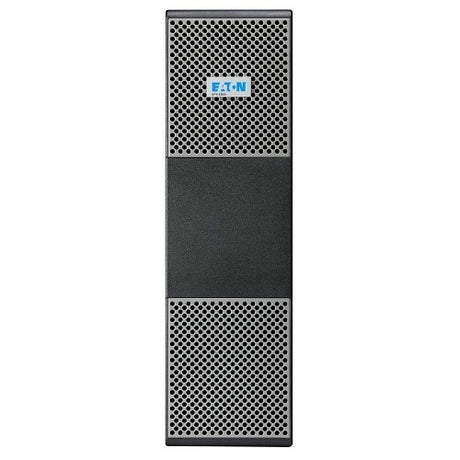

What is the Eaton SC240RT for?

It is a 240V DC supercharger for Eaton 9PX and 9SX UPS systems of 8kVA and 11kVA, built in a 3U case for rack or tower installation. Eaton lists it for high-demand power environments. Check the UPS model and kVA rating against these before fitting it, as it is not a general-purpose battery charger.

What does the Veracity VAD-CHGR charge?

It is a spare charger for the Veracity VAD-PS PointSource battery PoE injector, a portable PoE battery pack with a removable, rechargeable battery module. Installers use the pack to power IP cameras during site installation and site surveys, so a spare charger keeps a second battery ready. It works with a variety of wall outlet adapters.

Can several Scope pager chargers be joined together?

Yes. The Scope EPOCSCHGUK charger is made for the Epoc pager range, and several can be interlocked to create a pager rack, so a team of pagers charges side by side in one place. Scope also lists an EPOCSNSUK nightstand, which needs the EPOCBMPG pager and EPOCSVIB to go with it.

Can a device be left on the charger?

Several of these chargers are designed for it. The C-TEC QT424/10 prevents overcharging, so transmitters stay ready when left connected, the Opus AURA-CH10 has overcharge protection and the AURA-CH5 has auto-cutoff protection. Check the listing for your model before leaving devices docked overnight.
