Choose by the cable already in place and the distance to the camera, then by how the far end is powered.

Over network cable: OUTREACH and LONGSPAN

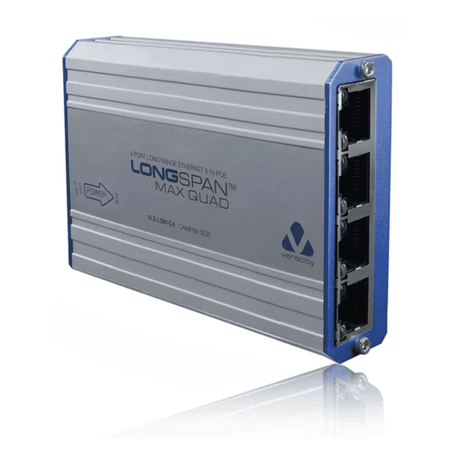

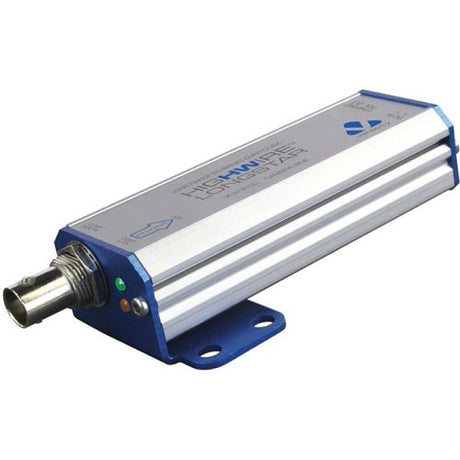

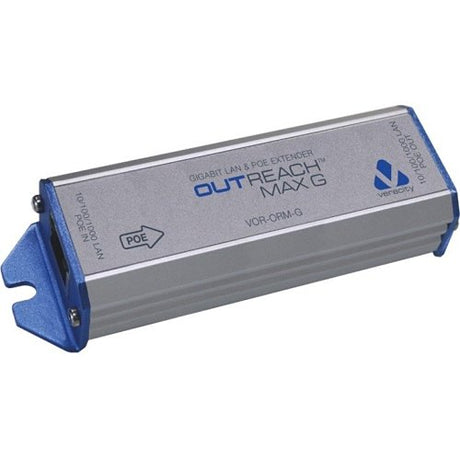

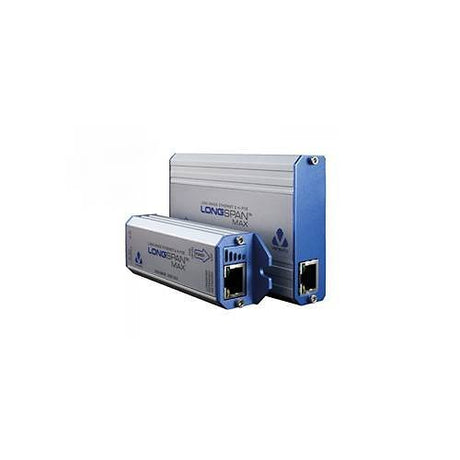

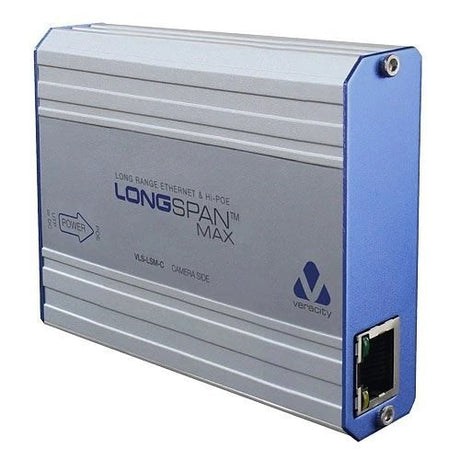

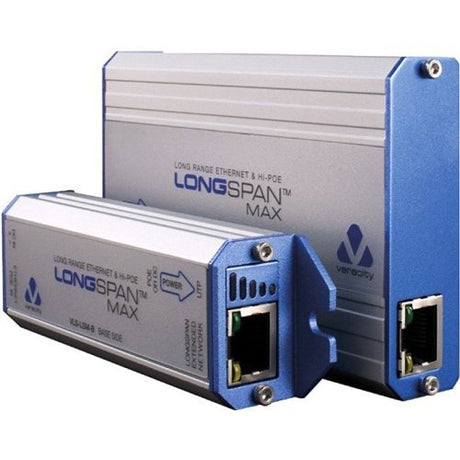

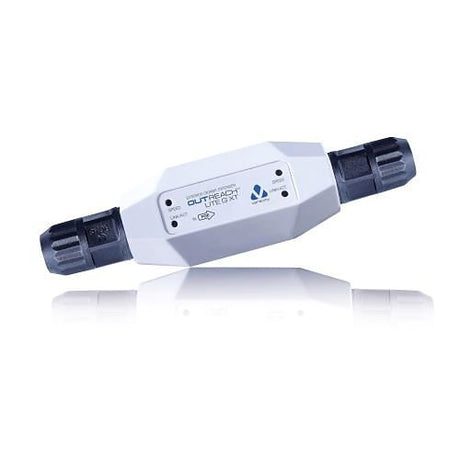

OUTREACH units sit in line on the cable run. The VOR-ORL extends a 100Base-TX segment by 100 m per unit and is powered by PoE but does not forward it, while the VOR-ORM doubles each 100 metre segment and passes PoE to the far device. LONGSPAN works in pairs, with a base such as the VLS-1P-B at the network end. The camera-side VLS-1P-C carries 100Base-TX over Cat6 for up to about 820 m.

Over existing coax: HIGHWIRE

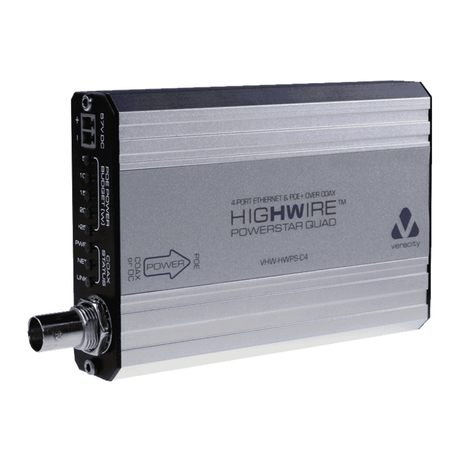

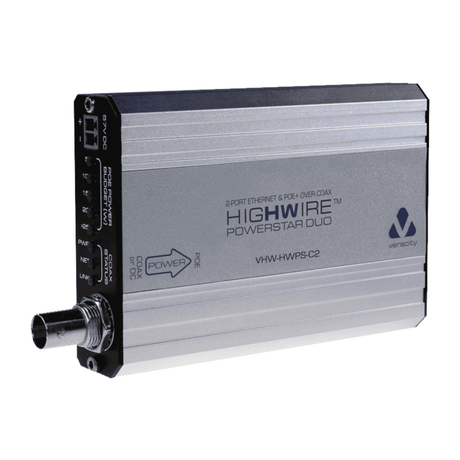

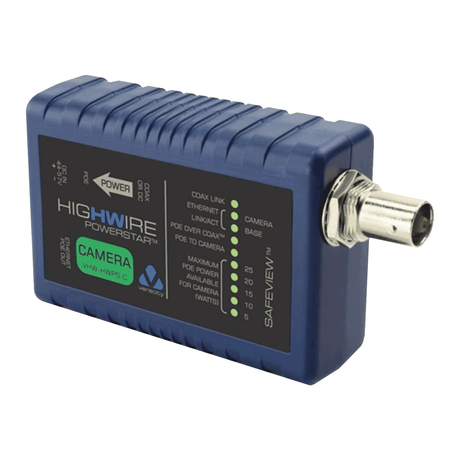

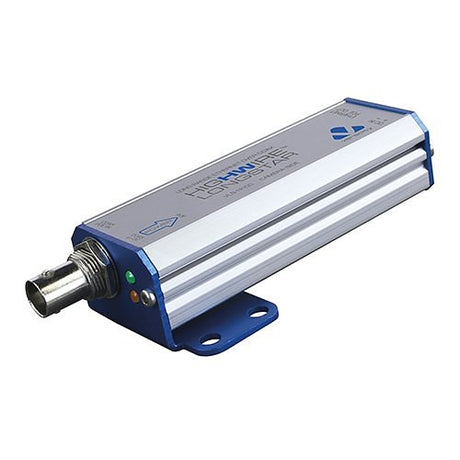

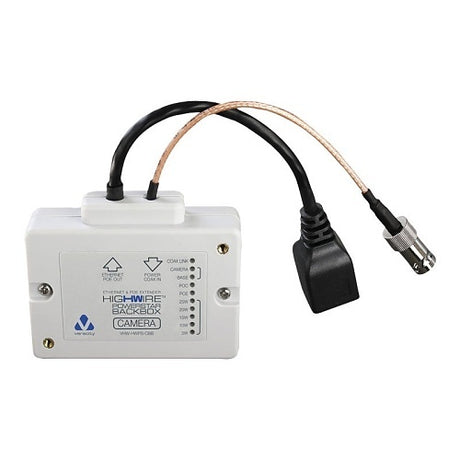

The VHW-HW re-uses existing 75Ω coax for a full duplex 100Base-TX link, used in pairs, for up to about 300 m on RG59 or 500 m on RG11. HIGHWIRE Powerstar camera units such as the VHW-HWPS-C also carry PoE/PoE+ over the coax from a Powerstar base, and the VHW-HWPS-C4 adds a 4-port PoE switch at the camera end.

Switches and injectors

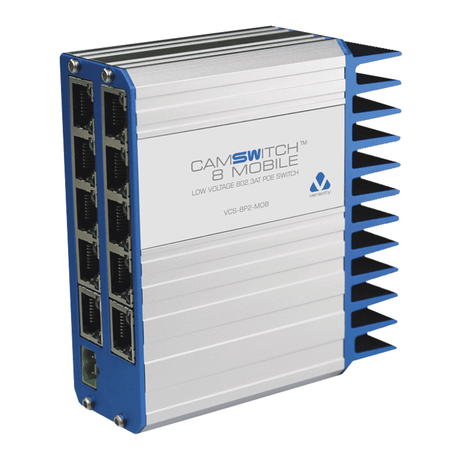

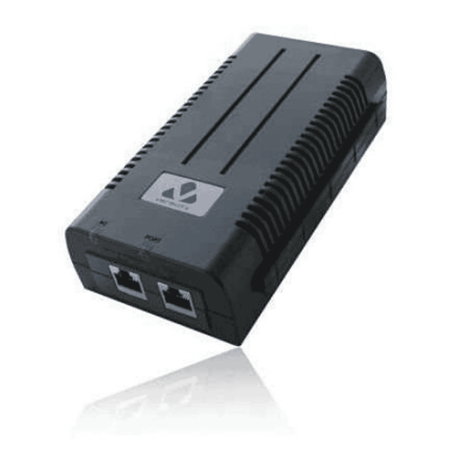

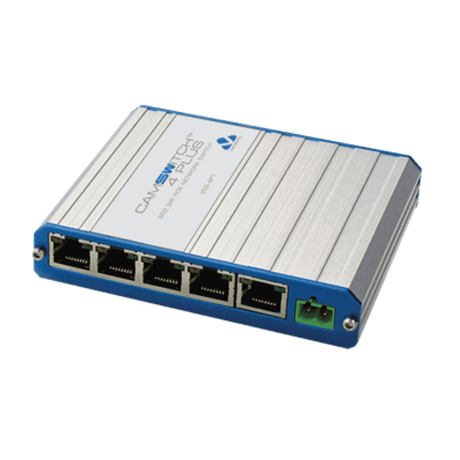

The CAMSWITCH 4 Plus VCS-4P1 has four PoE+ outputs and can be powered by PoE or a 44-57 V DC supply, and the VCS-8P2-MOB runs from 8.5-40 V DC for vehicle and remote sites. The OUTSOURCE 90 VOR-OS-90 injects up to 90 W of 802.3bt PoE for one high-power device.

Tools, time and display

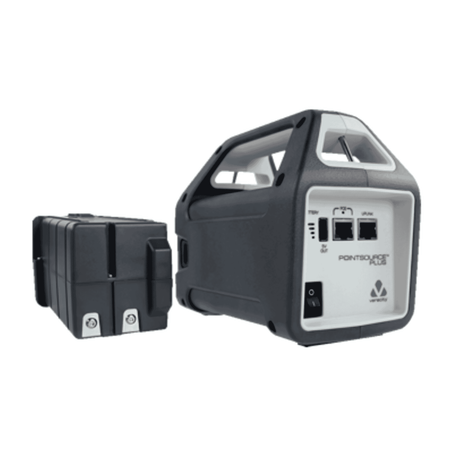

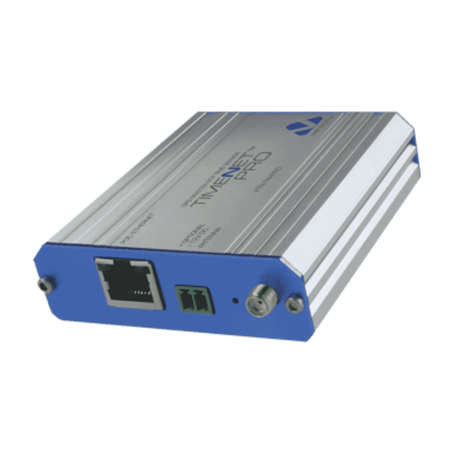

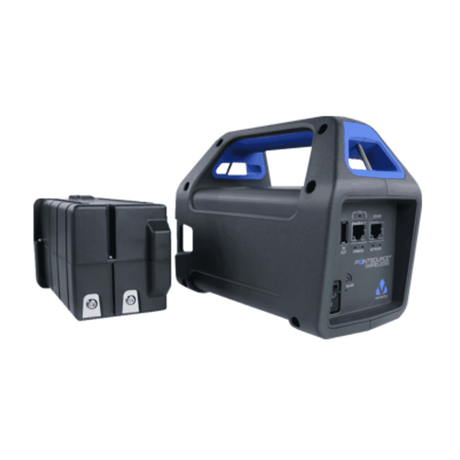

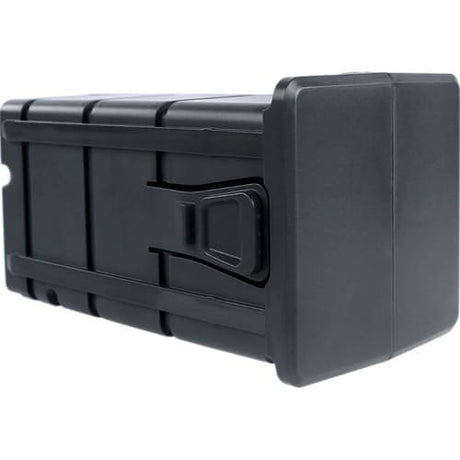

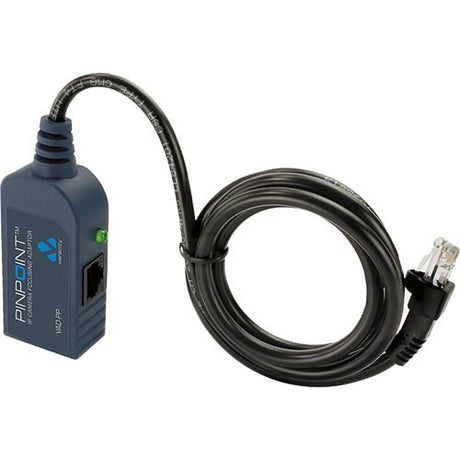

The VAD-PP Pinpoint adaptor lets a laptop view and configure a PoE camera without taking it off the network, and the VAD-PSP POINTSOURCE Plus powers a camera from a removable 12 V, 3.4 Ah battery for site surveys and demonstrations. The TIMENET Pro VTN-TN-PRO provides GPS-referenced time to IP cameras, NVRs and access control systems.
