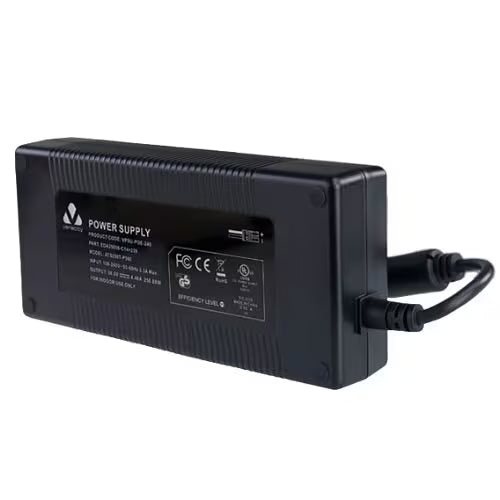

Veracity VPSU-POE-240 PoE Power Supply, 240W, 4.48A Output
About this product
The Veracity VPSU-POE-240 is a 240W PoE power supply designed to power Veracity's HIGHWIRE, LONGSPAN and CAMSWITCH IP transmission products, which in turn deliver PoE to IP cameras and other PoE devices. It has a 4.48A output with short-circuit, overload and overvoltage protection and auto-reset on all fault conditions.
Key features
- 240W output for high power PoE applications
- Maximum output current 4.48A with overcurrent protection and auto-reset
- Wide voltage range input: 100-240V AC, 50/60Hz
- Short-circuit, overload and overvoltage protection with auto-reset
- Compact fanless design
- Efficiency >88%
- Operating temperature 0 °C to +70 °C
- Output via a 1.2 metre flying lead with a two-pin 3.81mm Phoenix connector
Frequently asked questions
What does the Veracity VPSU-POE-240 power?
It is designed to power Veracity's HIGHWIRE, LONGSPAN and CAMSWITCH IP transmission products, which in turn deliver PoE to IP cameras and other PoE devices.
What output current does the VPSU-POE-240 give?
Maximum output current is 4.48A, with overcurrent protection and auto-reset.
What mains input does it take?
Input voltage is 100-240V AC, 50/60Hz through a C14 input connector, with a maximum input current of 3.3A.
How does it connect to the powered equipment?
Through a 1.2 metre flying lead with a two-pin 3.81mm Phoenix connector.
Does the VPSU-POE-240 have a cooling fan?
No. It has a compact fanless design.
Specifications
Specifications
| Brand | Veracity |
|---|---|
| Model | VPSU-POE-240 |
| Manufacturer Part Number (MPN) | VPSU-POE-240 |
| Output power | 240W |
| Maximum output current | 4.48A with overcurrent protection and auto-reset |
| Output protection | Short circuit protection with auto-reset once short removed |
| Input voltage | 100-240V AC, 50/60Hz |
| Maximum input current | 3.3A |
| Input protection | Fused |
| Efficiency | >88% |
| Noise & ripple | <1% peak to peak |
| Input connector | C14 input connector |
| Output cable | Flying lead, 1.2 metre, with two-pin 3.81mm Phoenix connector |
| Case dimensions | L 204mm x W 94mm x H 43.5mm |
| Weight | 1020g |
| Operating temperature | 0ºC to +70ºC |
| Storage temperature | -20ºC to +80ºC |
| Operating humidity | 20% to 80% relative humidity, non-condensing |
| Storage humidity | 10% to 90% relative humidity, non-condensing |
| Safety & compliance | CE, FCC, UL, EN60950 |
| MTBF | 300,000 hrs |
| Environment | Indoor |
