Video Surveillance Servers
Video surveillance servers run the software that records and manages a CCTV system, and the Dahua IVSS7108 combines video management with video storage in one device. This page has Axis recording servers with AXIS Camera Station licences, Milestone Husky servers pre-loaded with XProtect VMS, Hikvision HikCentral VMS servers, Comelit management, transfer and storage servers, and the Dahua DHI-DSS7016DR-S2, which supports up to 2000 network cameras.

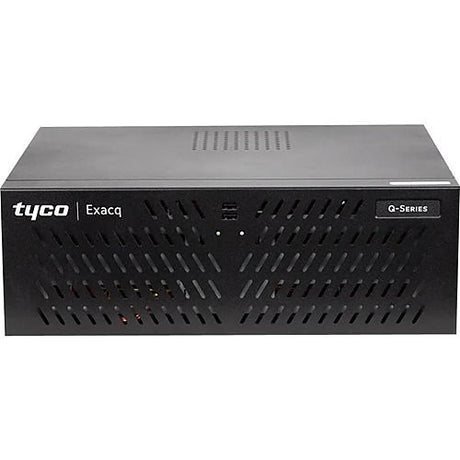

Exacq IP04-12T-Q IP server, 12TB
£ 2,635 17OpenEye OE-MTX00P-L micro server

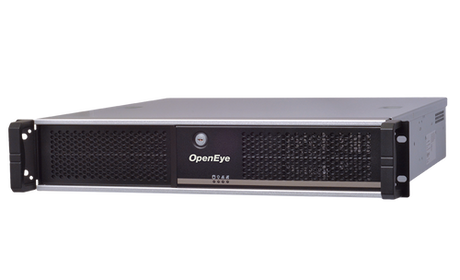

£ 3,637 54OpenEye OE-MMX36R-L compact rackmount server
£ 10,092 77OpenEye OE-MKX84R-L enterprise rackmount server

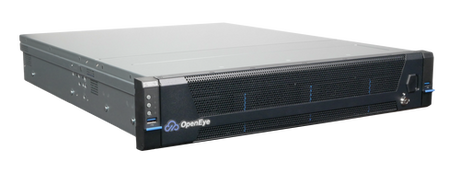

£ 18,022 52OpenEye OE-MKX80 enterprise server
£ 15,365 20OpenEye OE-MKX64-L network video server
£ 13,206 60OpenEye OE-MKX60R-L enterprise rackmount server
£ 15,087 40OpenEye OE-MKX48 enterprise server
£ 11,965 70OpenEye OE-MHX256-L enterprise rackmount server
£ 36,359 14OpenEye OE-MKX128-L enterprise rackmount server
£ 20,005 72OpenEye OE-MHX192R enterprise server
£ 34,059 37OpenEye OE-MHX192 cloud-managed server

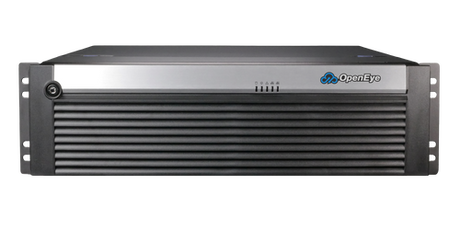

£ 30,017 76OpenEye OE-MHX128 mh-series cloud-managed server

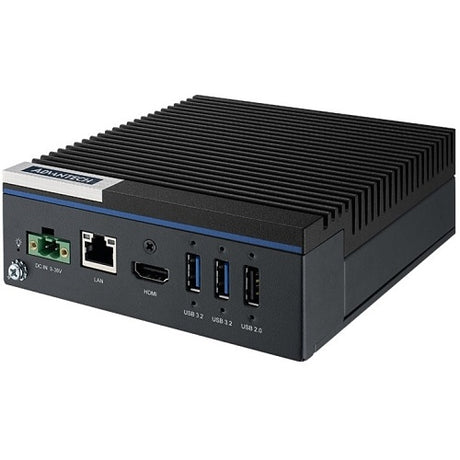

£ 23,218 64Magosys Systems MSA1588A edge ai appliance
£ 4,215 04
Choosing Video Surveillance Servers
Choose a server by the software it runs, the number of channels it has to handle and how its storage is protected.
Software and licences
Milestone Husky servers such as the 350R and 700R come pre-loaded with Milestone XProtect VMS and can be used with all XProtect VMS variants; the VMS licences are purchased separately. The Axis 03428-003 tower recording server has 16 AXIS Camera Station Pro licences and 10 AXIS Audio Manager Pro licences, and the Axis 02542-001 rack recording server includes 96 AXIS Camera Station licences. The Hikvision HikCentral-P-VER/HW1D/64 combines hardware and software with no activation required, and the Comelit SRV-DSK300B has Comelit CCTV Manager software pre-installed.
Channels and capacity

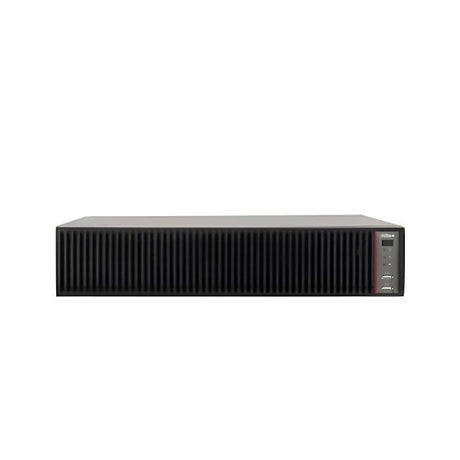

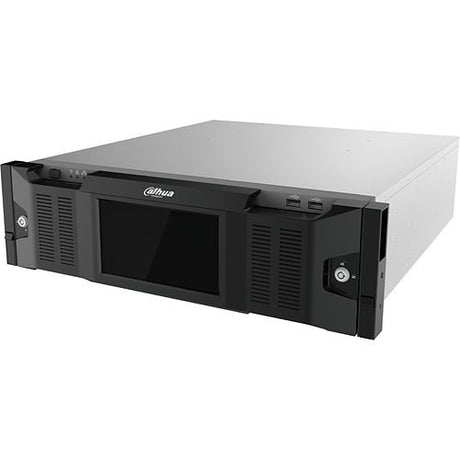

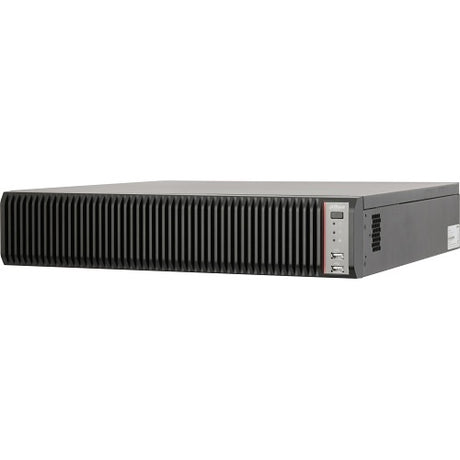

The Axis 03428-003 scales to 32 channels and a recording bitrate of 256 Mbit/s, and the Axis 02542-001 can be expanded to a recording bitrate of 1.5 Gbit/s, approximately 150 channels. The Dahua IVSS7108 has 128-channel IP video access and the Dahua DHI-DSS7016D-S2 supports up to 1,000 cameras. The Comelit SRV-VMS500B manages up to 1024 channels on the device and 10000 channels via additional transfer servers.
Storage and resilience
For archive storage, the Comelit SRV-STG016A houses 16 HDDs and the SRV-STG024A houses 24 HDDs, with RAID 0, 1, 5 and 6 and two built-in redundant power supplies. The Axis 02542-001 offers RAID levels 0/1/5/6/10, and the Milestone 700R has full hardware redundancy with dual OS drives, power supplies and RAID. The Axis 02543-001 uses a Trusted Platform Module that is FIPS 140-2 level 2, so recorded video is stored encrypted on the hard drive.
| Model | Type | Software or licences | Capacity |
|---|---|---|---|
| Axis 03428-003 | Tower recording server | 16 AXIS Camera Station Pro licences | 32 channels, 8 TB included |
| Axis 02542-001 | Rack recording server | 96 AXIS Camera Station licences | Approximately 150 channels |
| Axis 03334-001 | AI-optimised rack server | 28 AXIS Camera Station Pro licences | 12 TB storage |
| Milestone 350R | Husky server | Milestone XProtect VMS pre-loaded | – |
| Hikvision HikCentral-P-VER/HW1D/64 | Rackmount VMS server | HikCentral, no activation | 64 channels |
| Comelit SRV-STG016A | Archive storage server | – | 16 HDDs, RAID 0, 1, 5, 6 |
Related categories
Recorders are in network video recorders, software in CCTV licences and VMS software and rack housings in server racks and cabinets.
Brands we stock in Video Surveillance Servers
AMG Systems, Axis Communications, Bosch, BriefCam, Comelit PAC, Dahua Technology, Exacq, Hanwha Vision, Hikvision, Honeywell Commercial Security, Magosys Systems, Milestone Systems and OpenEye.
Frequently asked questions
What is a video surveillance server?
A video surveillance server is a computer built to run video management software, record camera streams and serve live and recorded video to operators. Unlike a fixed-channel NVR, it can usually scale to larger camera counts, more storage and video analytics. Check which VMS it runs and which licences come with it before choosing. The range here includes rack, tower and cloud-managed servers.
