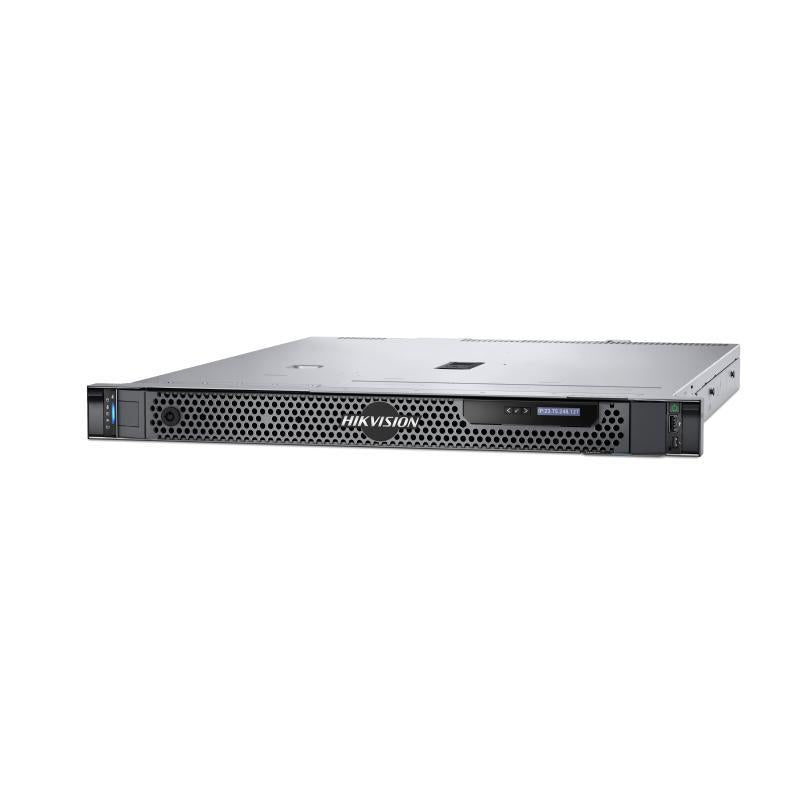

Hikvision HikCentral-P-VER/HW2D/64(E2434)(O-STD) Rackmount VMS Server, 64ch by Default, 1U
Free Delivery
Save £1,768.79
About this product
The Hikvision HikCentral-P-VER/HW2D/64(E2434)(O-STD) is a 1U rackmount VMS server that combines HikCentral hardware and software: it manages 64ch of video by default, which can be expanded into 3000ch. It comes with the WinSvr2022 multilingual version pre-installed and needs no additional activation, so it is ready to use right out of the box.
Key features
- Video management: 64ch by default, can be expanded into 3000ch (including ANPR cameras and cameras with face capture function)
- No additional activation required; ready to use right out of the box
- WinSvr2022 multilingual version pre-installed
- E-2434 CPU (3.4 GHz-5.0 GHz, 12 MB Cache, 4 Cores, 8 Threads)
- 16GB ×1 DDR5 memory, 4 x DDR5 DIMM slots supporting UDIMM 4x32 GB MAX
- 2× 2TB 7.2K SATA hot-plug HDD in RAID_1, with 4 x 3.5-inch SAS/SATA (HDD/SSD) slots
- Remote management by iDrac9 Enterprise
- 1U rack form factor with 2 x LAN 10/100/1000 Ethernet ports
Frequently asked questions
How many cameras can the HikCentral-P-VER/HW2D/64(E2434) manage?
Video management is 64ch by default and can be expanded into 3000ch, including ANPR cameras and cameras with face capture function.
Does it need activating before use?
No. No additional activation is required, and it is ready to use right out of the box with the WinSvr2022 multilingual version pre-installed.
What storage is fitted?
2× 2TB 7.2K SATA hot-plug HDD in RAID_1. The server has 4 x 3.5-inch SAS/SATA (HDD/SSD) slots, and empty slots do not include hard drive bays by default.
Are access controls and indoor stations included?
Not as standard. Access controls can be expanded into 1024 (including doors and outdoor station) and indoor stations into 5000.
How is the server managed remotely?
Through iDrac9 Enterprise, with support for OpenManage Enterprise and plugins (PowerManager, SupportAssist and Update Manager).
What power supply does it use?
A 600 W, 50/60 Hz, 100-240 VAC (auto adjustment), 7.1-3.6 A power supply.
Technical Details
Specifications
Brand
Hikvision
Model
HikCentral-P-VER/HW2D/64(E2434)(O-STD)
Manufacturer Part Number (MPN)
HikCentral-P-VER/HW2D/64(E2434)(O-STD)
Video Management
64ch by default, can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)
Access Controls
Not included; can be expanded into 1024 (Including Doors and Outdoor Station)
Indoor Station
Not included; can be expanded into 5000
ANPR Cameras
Not included; can be expanded into 1024ch
Lanes Of Entrance & Exit
Not included, can be expanded into 40
Cameras With Face Capture Function
Not included; can be expanded into 3000ch
Alarm Panel
Not included; can be expanded into 1024
Smart Walls
Not included; can be expanded into Smart Walls: 32; Decoding devices: 32
Attendance
Not included, can be expanded by extra license
CPU
E-2434 (3.4 GHz-5.0 GHz, 12 MB Cache, 4 Cores, 8 Threads)
Memory
16GB ×1 (Slots: 4 x DDR5 DIMM slots, supports UDIMM 4x32 GB MAX)
Hard Disks
2× 2TB 7.2K SATA Hot-plug HDD (RAID_1)
Drive slots
4 x 3.5-inch SAS/SATA (HDD/SSD) slots (Empty slots do not include hard drive bays by default)
Storage Controller
S160 with OS software Raid (support RAID 0/1)
Supported Operating Systems
WinSvr2022 multilingual version pre-installed
PCIe Slots
Up to 2 PCIe Gen4 slots on the Gen4 Riser: Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile; Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile
Remote Manage
iDrac9 Enterprise
OpenManage Software
Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)
Security
Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)
USB 3.0
0 (Front) + 1 (Rear)
USB 2.0
1 (Front) + 1 (Rear)
Ethernet Port
2 x LAN 10/100/1000
VGA
1
IDRAC Direct (Micro-AB USB) Port
1
IDRAC Ethernet Port
1
Manager Port
1
Net Weight
13.23 kg (29.17 lb)
Dimension (W × H × D)
42.8 mm × 482.00 mm × 598.9 mm
Operating Temperature
10 °C to 35 °C (50 °F to 95 °F)
Storage Temperature
-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity
8% to 80% (no condensation)
Power Supply
600 W, 50/60 Hz, 100-240 VAC (Auto adjustment), 7.1-3.6 A
Form Factor
1U Rack
Specifications
| Brand | Hikvision |
|---|---|
| Model | HikCentral-P-VER/HW2D/64(E2434)(O-STD) |
| Manufacturer Part Number (MPN) | HikCentral-P-VER/HW2D/64(E2434)(O-STD) |
| Video Management | 64ch by default, can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function) |
| Access Controls | Not included; can be expanded into 1024 (Including Doors and Outdoor Station) |
| Indoor Station | Not included; can be expanded into 5000 |
| ANPR Cameras | Not included; can be expanded into 1024ch |
| Lanes Of Entrance & Exit | Not included, can be expanded into 40 |
| Cameras With Face Capture Function | Not included; can be expanded into 3000ch |
| Alarm Panel | Not included; can be expanded into 1024 |
| Smart Walls | Not included; can be expanded into Smart Walls: 32; Decoding devices: 32 |
| Attendance | Not included, can be expanded by extra license |
| CPU | E-2434 (3.4 GHz-5.0 GHz, 12 MB Cache, 4 Cores, 8 Threads) |
| Memory | 16GB ×1 (Slots: 4 x DDR5 DIMM slots, supports UDIMM 4x32 GB MAX) |
| Hard Disks | 2× 2TB 7.2K SATA Hot-plug HDD (RAID_1) |
| Drive slots | 4 x 3.5-inch SAS/SATA (HDD/SSD) slots (Empty slots do not include hard drive bays by default) |
| Storage Controller | S160 with OS software Raid (support RAID 0/1) |
| Supported Operating Systems | WinSvr2022 multilingual version pre-installed |
| PCIe Slots | Up to 2 PCIe Gen4 slots on the Gen4 Riser: Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile; Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile |
| Remote Manage | iDrac9 Enterprise |
| OpenManage Software | Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager) |
| Security | Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter) |
| USB 3.0 | 0 (Front) + 1 (Rear) |
| USB 2.0 | 1 (Front) + 1 (Rear) |
| Ethernet Port | 2 x LAN 10/100/1000 |
| VGA | 1 |
| IDRAC Direct (Micro-AB USB) Port | 1 |
| IDRAC Ethernet Port | 1 |
| Manager Port | 1 |
| Net Weight | 13.23 kg (29.17 lb) |
| Dimension (W × H × D) | 42.8 mm × 482.00 mm × 598.9 mm |
| Operating Temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Storage Temperature | -40 °C to 65 °C (-40 °F to 149 °F) |
| Operating Humidity | 8% to 80% (no condensation) |
| Power Supply | 600 W, 50/60 Hz, 100-240 VAC (Auto adjustment), 7.1-3.6 A |
| Form Factor | 1U Rack |
