Pendant Caps & Mounts

Pendant caps and mounts hang a dome or fixed camera from a ceiling, bracket or pipe, using a threaded pendant kit or a cap adapter made for the camera model. This page holds indoor and outdoor pendant kits, hanging mounts and caps, interface plates and stainless steel kits for marine sites, from makers including Axis Communications, Hanwha Vision, Bosch, OpenEye and Verint.

Choosing Pendant Caps & Mounts

Start with the camera the part has to carry, then choose indoor or outdoor use and the thread.

Axis pendant kits

The Axis 01159-001 and 01185-001 indoor pendant kits enable the use of Axis mounting products featuring a 1.5" NPS thread. The 01513-001 is an indoor/outdoor pendant kit that allows AXIS P3717-PLE and P3719-PLE cameras to be mounted on poles, parapets and outer corners. The 03232-001 and 03233-001 are mounting adapters for the AXIS P3747-PLVE and P3748-PLVE, compatible with 1.5-inch NPS thread, and the 03233-001 adds a weathershield for outdoor use.

Marine-grade stainless steel

The Axis 02988-001 and 02989-001 are marine grade stainless steel pendant kits, corrosion resistant to seawater and chemicals and compatible with the AXIS P3268-SLVE, AXIS Q3538-SLVE and AXIS TQ3003-SE Wall Mount; the 02989-001 provides additional weather protection. The Axis 03214-001 (TQ3105-SE) is made of marine-grade, electropolished SUS 316L stainless steel for indoor and outdoor use.

Bosch pendant interface plates

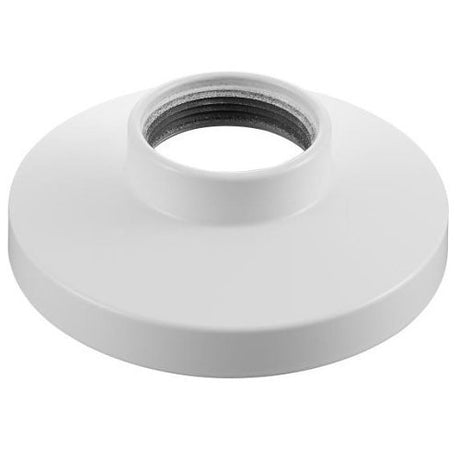

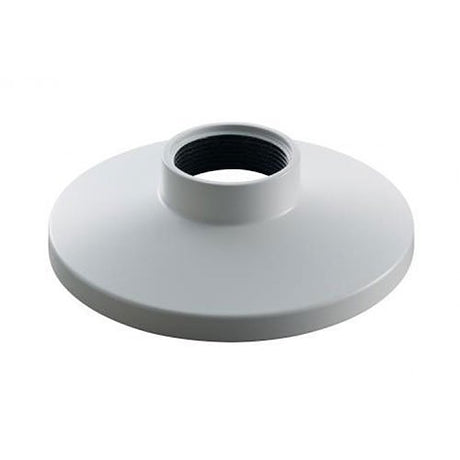

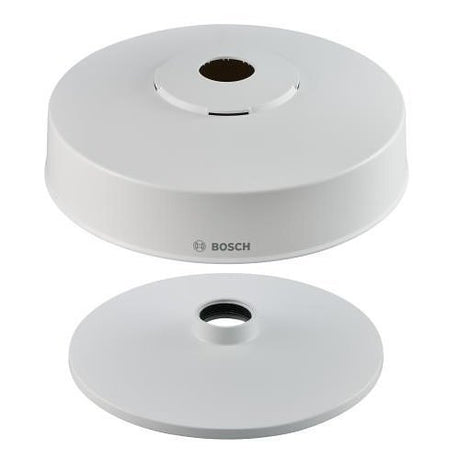

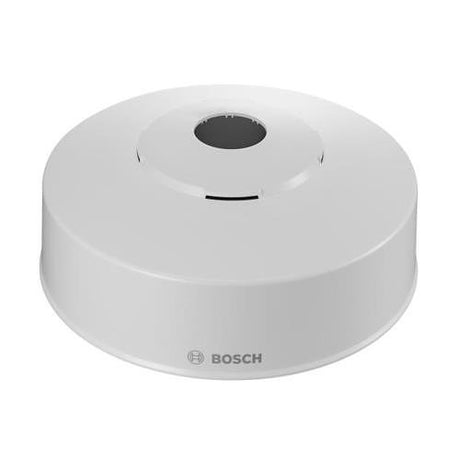

The Bosch F.01U.391.132, F.01U.394.000 and F.01U.389.607 are camera-specific pendant interface plates for Bosch's universal accessories, with a modular design and a weather resistant finish. The F.01U.324.951 is the pendant interface plate for the outdoor FLEXIDOME IP 4/5000i, with a vandal resistant design, and the F.01U.329.708 is for the indoor FLEXIDOME IP 4/5000i. The F.01U.391.133 is a Bosch pendant cap.

Hanwha Vision hanging mounts and cap adapters

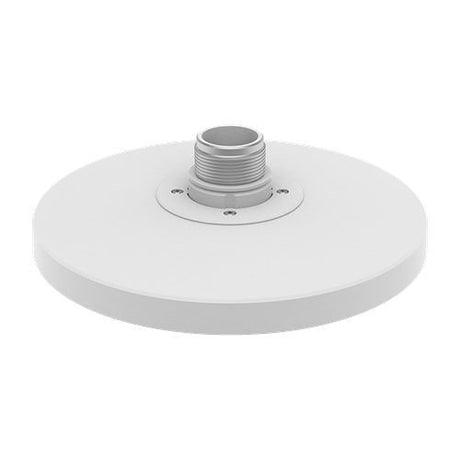

The Hanwha Vision SBP-315HMW is an aluminium cap adapter for the PNM-9084RQZ and PNM-9085RQZ, and the SBP250HMW hanging cap is for the PNM-9084QZ, PNM-9084QZ1, PNM-C16083RVQ and PNM-C32083RVQ, with a PF 1 1/2" male thread and a TR20 mounting screw. The SBP-300HMW7 is an aluminium hanging mount measuring Ø120.0 x 51.5mm with a PF 1 1/2" mount screw size, and the SBP-180HMW1 has an aluminium core, a white plastic cap and a TR20 mount screw.

ModelTypeUseThread or fit
Axis 01159-001Indoor pendant kitIndoorAxis mounts with a 1.5" NPS thread

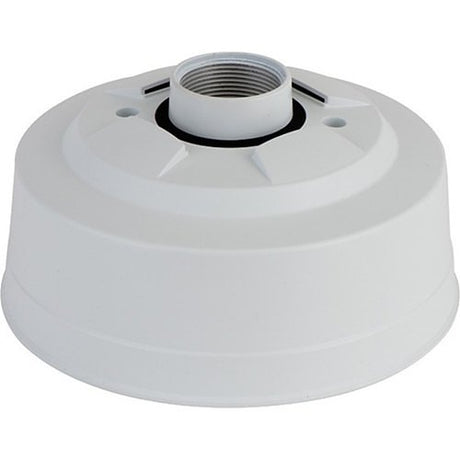

Axis 5505-091Outdoor pendant kitOutdoor-ready1.5" NPS threaded brackets
Axis 02988-001Stainless steel pendant kitSeawater and chemical resistantAXIS TQ3003-SE Wall Mount
Bosch F.01U.324.951Pendant interface plateOutdoor, vandal resistantOutdoor FLEXIDOME IP 4/5000i
Hanwha SBP250HMWHanging capIndoor and outdoorPF 1 1/2" male, TR20 screw

Related categories

See also camera mounting brackets, camera housing and mount accessories and CCTV poles and columns.

Brands we stock in Pendant Caps & Mounts

Aritech, Axis Communications, Bosch, Dahua Technology, Hanwha Vision, OpenEye and Verint.

Frequently asked questions

How does a ceiling pendant mount fit a camera?

It hangs the camera below the ceiling on a pendant kit made for that camera series. The Axis 02107-001 is an indoor and outdoor pendant kit for mounting AXIS Q38 Series cameras in a ceiling application, and the 02108-001 is an indoor pendant kit for P38 and Q38 Series cameras. The camera and wall mount are not included with either kit.

Which cameras fit a hanging mount?

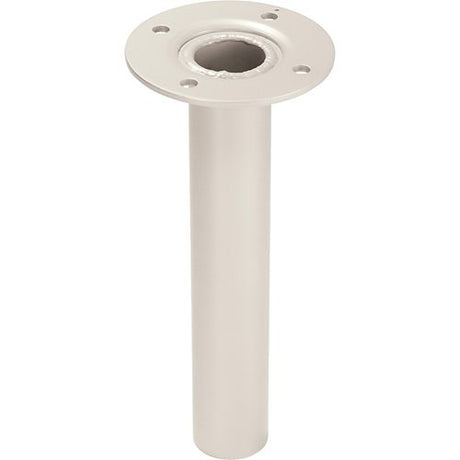

Check that the mount suits your camera model, because a hanging mount is made for named cameras and brackets. The Hanwha Vision SBP-122HM can be used with cameras including the QNV-7010R, QND-7080R and SND-6011R, and with SBP-300CM, 300LM and 300WM brackets. The SBP-300HM7 suits cameras including the QND-6010R and SND-L6013R.

Which pendant kits fit a 1.5-inch NPS thread?

Pendant kits made for 1.5-inch NPS threaded mounts and brackets fit it, and some also take a smaller pipe with a nut for the pipe thread. The Axis 01159-001 and 01185-001 indoor pendant kits enable Axis mounting products with a 1.5" NPS thread and can also take 3/4" pipes with a pipe-thread nut, and the 5505-091 mounts the camera on 1.5" NPS threaded brackets. The Hanwha Vision SBP250HMW uses a PF 1 1/2" male thread instead.

Why choose a stainless steel pendant mount?

Choose one for marine or chemical environments, because marine-grade stainless steel resists corrosion from seawater and chemicals. The Axis 03214-001 pendant mount is made of marine-grade, electropolished SUS 316L stainless steel and resists marine environments and most chemicals. The Axis 02988-001 and 02989-001 are marine grade stainless steel pendant kits, and the 02989-001 adds weather protection.

Can a pendant mount be used outdoors?

Yes, where the kit is made for it. The Axis 5505-091 is an outdoor-ready pendant kit with a black inside coating for reduced reflections, the 02548-001 and 02855-001 are outdoor-ready with improved weather protection for selected AXIS M32 and P32 cameras, and the 03233-001 has a weathershield for outdoor use. The Axis 01159-001, 01185-001 and 02108-001 are indoor pendant kits.
