IR Illuminators

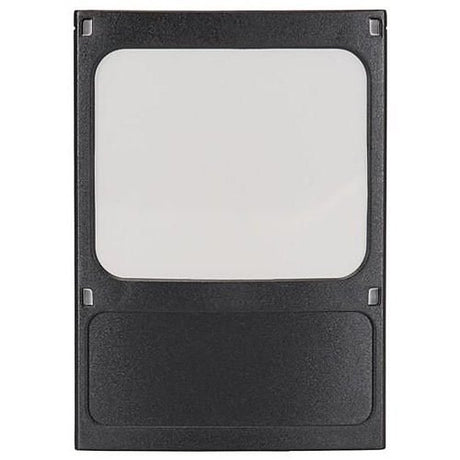

An IR illuminator lights a scene with infrared LEDs so a CCTV camera can capture images at night. Makers here include Raytec, GJD, Axis Communications, Hanwha Vision and Bosch, with covert 940 nm and semi-covert 850 nm illuminators, PoE and network models, hybrid infrared and white-light units, camera-mounted IR kits, and the lens inserts, diverging lenses and brackets that change the beam or the mounting.

Choosing IR Illuminators

Choose an illuminator by its wavelength, by how far the light has to reach, and by how it will be powered and switched.

Wavelength

The Raytec VAR2-I8-1-C comes in semi-covert 850 nm or covert 940 nm versions, and the GJD IL-9 and IM-9 offer 850 nm or 940 nm wavelengths. The Axis 02771-001 kit uses covert 940 nm LEDs, while the Axis 03004-001 kit uses 850 nm LEDs and is optimised for licence plate capture. The GJD IX-9 is a 940 nm unit.

Illumination distance

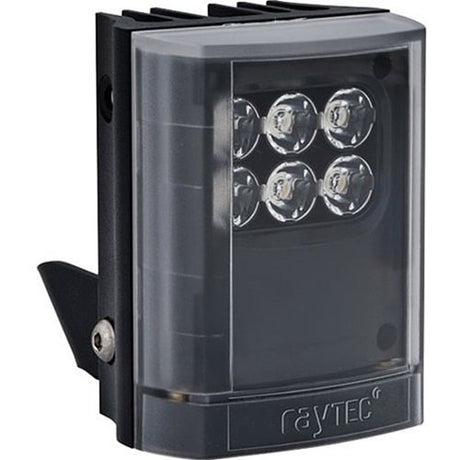

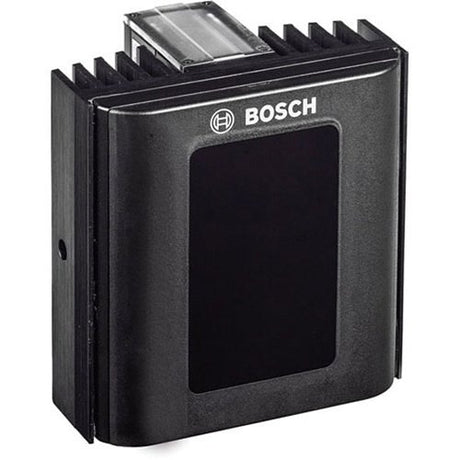

The Raytec VAR2-I2-1 reaches up to 78m and the VAR2-I8-1-C up to 350m. In the GJD range, the IS-9 reaches up to 132m and the IX-9 up to 262m. The Bosch F.01U.319.313 is built for short-range surveillance, the F.01U.319.316 for medium range and the F.01U.319.319 for extra long range.

Power and switching

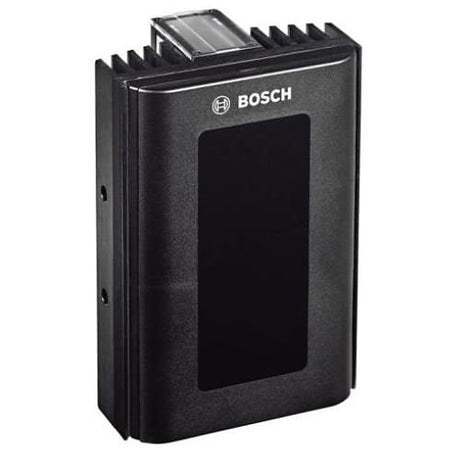

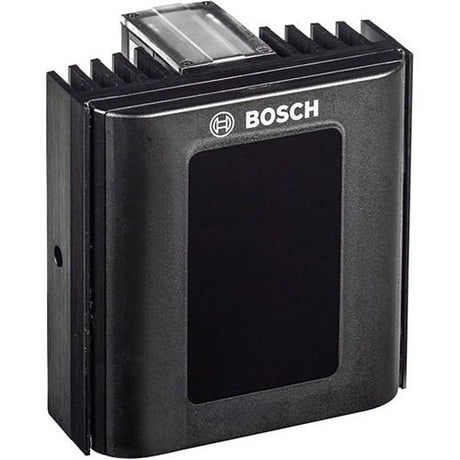

The Bosch F.01U.319.317 can be powered from any 12 to 32 VDC or 24 VAC supply and has an integrated adjustable photocell, while the Bosch F.01U.319.321 runs from PoE+. The GJD IM-9-IP gives dedicated lighting for IP cameras via PoE+, with a secure web browser interface and direct integration with VMS systems. The GJD IL-9 has a built-in photocell for IR on and off, and the Hikvision DS-TL2002CI has built-in automatic light control that switches it on at low illumination, from a 200-240VAC supply.

Hybrid models

Hybrid models such as the Raytec VAR2-HY8-1-C and the GJD HM-9CW-IP combine infrared and white light in one unit. The VAR2-HY8-1-C reaches up to 290m in infrared and 144m in white light, and switches from infrared to white light on demand for external devices or alarm inputs. The HM-9CW-IP reaches up to 101m in infrared and 68m in white light and can give event triggered lighting to illuminate and deter intruders.

ModelTypeLightRange
Raytec VAR2-I2-1Infrared illuminatorInfrared78m
Raytec VAR2-I8-1-CInfrared illuminator850 nm or 940 nm350m
GJD IL-9Infrared illuminator850 nm or 940 nm228m
GJD IX-9Infrared illuminator940 nm262m
Axis 02771-001Camera IR kit940 nm40m
Axis 03004-001Camera IR kit850 nm50m
Raytec VAR2-HY8-1-CHybrid illuminatorInfrared and white light290m infrared, 144m white light

Related categories

More CCTV parts are in camera mounting brackets.

Brands we stock in IR Illuminators

Axis Communications, Bosch, GJD, Hanwha Vision, Hikvision and Raytec.

Frequently asked questions

How do I choose an IR illuminator for CCTV?

Choose an IR illuminator by the distance it has to light, a beam angle that matches the camera's field of view, and the wavelength. A narrow beam reaches further, while a wide beam fills a close scene evenly. Then decide how it will be powered and switched on, for example by PoE or a photocell. The range here includes hybrid infrared and white-light units.

What is a 940 nm IR illuminator?

A 940 nm IR illuminator gives covert infrared light that is practically invisible to the eye, with no obvious red glow. The trade-off is a shorter reach than an 850 nm unit of similar power, and some cameras are less sensitive at that wavelength. It suits sites where intruders should not spot the lighting. The range here includes covert units and a camera-mounted covert IR kit.

How does an IR illuminator work?

An IR illuminator uses infrared LEDs to flood a scene with light the eye barely sees but a camera sensor picks up. When light levels fall, a photocell or the camera switches it on and the camera moves to black and white night mode. Lenses shape the beam to match the camera view, giving a clear picture in darkness.

What is an IR illuminator?

An IR illuminator is a lamp that emits infrared light so CCTV cameras can record clear images at night without visible lighting. It is mounted beside or on the camera and aimed at the same area. Units differ by wavelength, reach and power supply. The range here includes infrared and hybrid illuminators, plus mounting brackets and lens inserts.
