GJD IM-8-P IP infrared illuminator, Red

Visit GJD Products
Free Delivery
£ 326 77
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

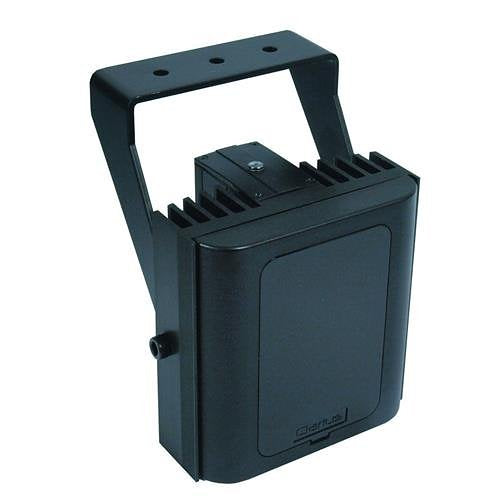

GJD IM-8-P is an IP infrared illuminator.

The Clarius® Plus range of high performance Infra-Red LED illuminators are designed to provide class leading performance, long life and ultra low maintenance. Incorporating the latest surface mount dual core LED's with enhanced optical output and outstanding reliability, they deliver excellent nighttime images. Each unit is fitted with integrated control circuitry to carefully control LED output, delivering consistent illumination and projected working life in excess of 10 years.

The Clarius® Plus range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects.

As standard the illuminator includes interchangeable lensing to deliver 10° circular, 20°, 30°, 60°, 80° and 95° elliptical beam profiles.

Key features

  • Elliptical beam profiles
  • Distances up to 187m (614′)
  • 850nm or 940nm wavelengths

If you are matching this to an existing installation, work from the IM-8-P part number rather than the description.

£ 326 77
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£326.77 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
GJD
Manufacturer Part Number
IM-8-P
Product Type
Infrared Illuminator
General information
Application/Usage
Commercial, Education, Government, Industrial, Residential, Transportation
Technical information
Device Supported
Network Camera
Illumination Distance
187m
Physical characteristics
Colour
Red
Depth
78.00mm
Durability
Vandalproof, Weatherproof
Height
111.00mm
Material
Anodized Aluminum, Polycarbonate
Weight
1.05kg
Width
110.00mm
Power description
Power Source
AC Power, DC Power
Miscellaneous
Environmental status
Yes
Features
LED Illumination, PoE, Self-cleaning Lens Coating, SMT LED Technology, Surface Mount, Wall Mountable
Indoor or outdoor use
Indoor, Outdoor
Attributes
Device Supported
Network Camera
Power Source
AC Power, DC Power
Weight
1.05kg
Specifications
General information
Technical information
Physical characteristics
Power description
Miscellaneous
Attributes

Specifications

Brand Name GJD
Manufacturer Part Number IM-8-P
Product Type Infrared Illuminator

General information

Application/Usage Commercial, Education, Government, Industrial, Residential, Transportation

Technical information

Device Supported Network Camera
Illumination Distance 187m

Physical characteristics

Colour Red
Depth 78.00mm
Durability Vandalproof, Weatherproof
Height 111.00mm
Material Anodized Aluminum, Polycarbonate
Weight 1.05kg
Width 110.00mm

Power description

Power Source AC Power, DC Power

Miscellaneous

Environmental status Yes
Features LED Illumination, PoE, Self-cleaning Lens Coating, SMT LED Technology, Surface Mount, Wall Mountable
Indoor or outdoor use Indoor, Outdoor

Attributes

Device Supported Network Camera
Power Source AC Power, DC Power
Weight 1.05kg

GJD IM-8-P IP infrared illuminator

GJD IM-8-P IP infrared illuminator, Red

Who this is for

For the installer — this is the IP infrared illuminator supplied under GJD part number IM-8-P. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an IP infrared illuminator made by GJD. The part number IM-8-P is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this IP infrared illuminator is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact IP infrared illuminator I have been quoted? Check the manufacturer part number IM-8-P against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against IM-8-P answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
