Fike Products

Fike products here are fire detection and alarm equipment: control and repeater panels, Multipoint ASD detectors, sounders and sounder/strobes, manual call points, interface modules, boxed kits, flame detectors, and the spares and tools that keep a system serviced. Many belong to the TwinflexPro² two-wire range or the Sita and CIE addressable range. Examples include the 505-0004 4-zone TwinflexPro2 panel, the 604-0002 kit and the CIE-A-400 addressable panel 540-0001.

Choosing Fike Products

Decide first between a two-wire conventional system and an addressable one, then choose detectors, sounders and call points made for it.

TwinflexPro² two-wire systems

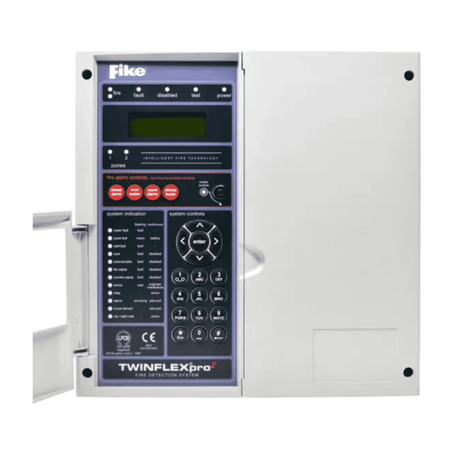

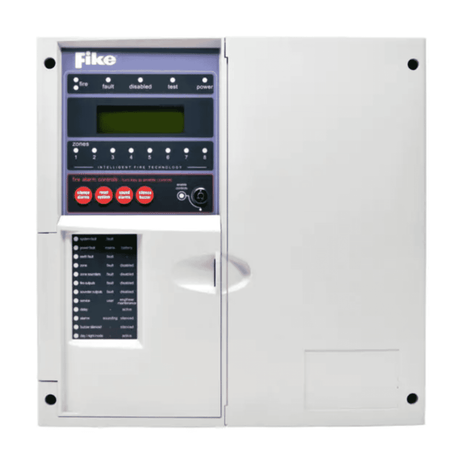

The TwinflexPro2 505-0008 lets detectors, call points and sounders share a single 2-core screened cable per zone, which cuts cable runs. The 505-0002, 505-0004 and 505-0008 panels have 2, 4 and 8 zones, and the 505-0004 takes a maximum of 32 Twinflex devices per zone and keeps a 500-event log. The 505-0007 expansion card adds as many as four conventional zones to the 4 zone panel, allowing hybrid bi-wire and 4-wire devices on one system. The 604-0002 kit holds a 505-0002 panel, 7 Multipoint detectors, 2 manual call points and a head removal tool.

Multipoint ASD detectors

The Twinflex 204-0003 Multipoint ASD is set at commissioning to one of seven modes: three smoke modes, two fixed temperature heat modes, a rate of rise mode or a combined smoke or heat mode. The black 204-0003-B has the option of an integral sounder with 90dBA output. For addressable systems, the 205-0003 ASD detector is used on Duonet and Quadnet panels and offers as many as 15 detection settings.

Addressable panels and devices

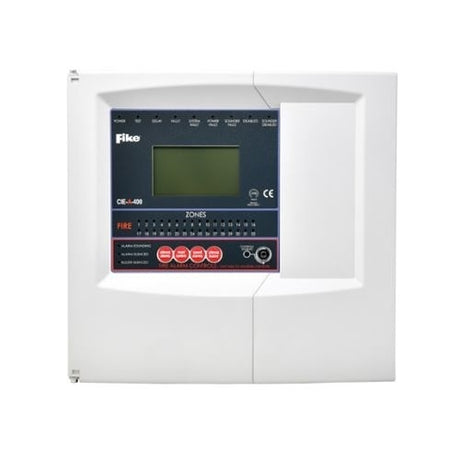

The CIE-A-400 540-0001 is a two-loop addressable panel with a maximum of 200 devices per loop, a maximum loop length of 2km and 32 panel zones. The 540-0003 loop card turns a CIE-A-400 1 Loop Panel into a 2 Loop Panel. Sita addressable devices include the 403-0006-NC call point. The 323-0001 Sita sounder has 87dB output and a built-in isolator.

Flame detection

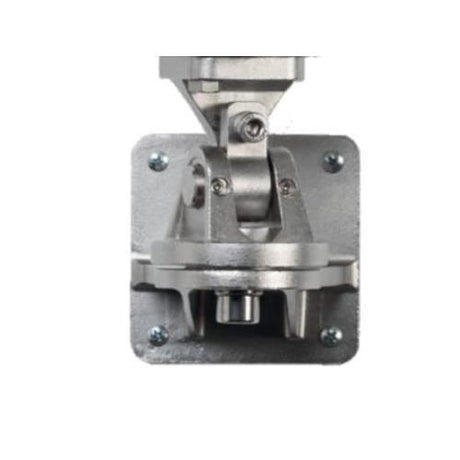

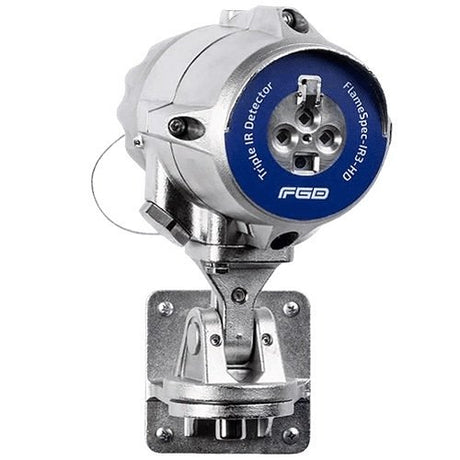

The FIK-IR3-AS11 triple IR flame detector detects a 0.1m2 n-heptane pan fire at up to 80m. The FIK-TMO-S01 is a stainless steel mount for small flame detectors.

PartExampleSystemNote
2-zone panel505-0002TwinflexPro²Integral power supply
8-zone panel505-0008TwinflexPro²Integrated mains PSU
Multipoint detector204-0003TwinflexSeven modes
Addressable detector205-0003Duonet, Quadnet15 settings
Addressable panel540-0001CIE-A-400Two loops
Weatherproof call point402-0007-NCTwinflexIP65
Horn sounder302-0004Twinflex90dB, zone-powered

Related categories

Shop the range by type in Fike control panels, Fike detectors, Fike Twinflex kits and Fike sounders, or compare other makes in fire alarm systems. Our detector buying guide covers the detection basics.

Frequently asked questions

What is a Twinflex two-wire fire alarm system?

It is a conventional zoned system in which detectors, sounders and call points share a single pair of wires per zone. The TwinflexPro² 604-0008 kit is built this way, with Multipoint ASD detectors that have 7 selectable detection modes. Because it is zone-powered, the 302-0004 Hipoint horn sounder can be installed on the same zone as the Multipoint detectors.

Which call point works on a Twinflex panel?

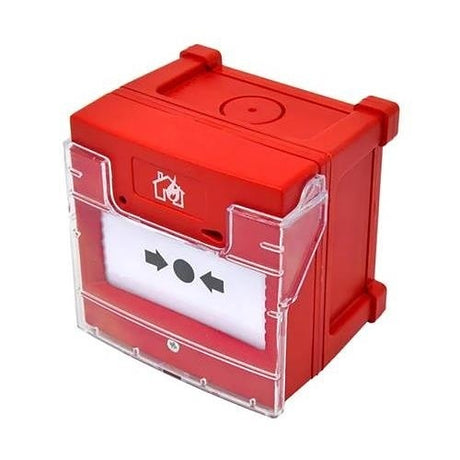

A Twinflex call point, which is a 2-wire zone-powered device made for Twinflex panels; conventional 4-wire call points are not compatible. The Fike 402-0006-NC and the IP65 weatherproof 402-0007-NC are Twinflex call points that latch in alarm and reset with a special key. The conventional 400-0007 is not compatible with Fike Twinflex 2-wire systems and is for conventional 4-wire systems only.

Do Multipoint detectors need a separate base?

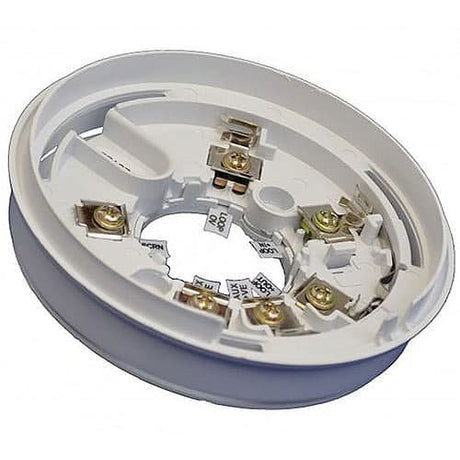

No, not always: some Multipoint ASD detectors come with a mounting base, while no-base heads fit a separate base. The Fike 205-0003-B addressable ASD detector has its black mounting base included, while the 205-0003-NB has no base. The 905-0001 mounting bases for Sita Multipoint ASD detectors come in packs of 5, with a spring-loaded shorting pin that keeps circuit continuity when a head is removed.

Can a Twinflex panel have a repeater?

Yes, a repeater panel connects to the control panel, reports its events and can silence, reset and sound alarms over the network. The Fike TwinflexPro2 505-0010 repeater allows a maximum of 8 repeaters on a single control panel within 500 metres of cable, and the 505-0004 4-zone panel has RS-485 communications for up to 8 repeater panels.

What are Fike flame detectors used for?

They detect flames from hydrocarbon fuel and gas fires, where a very quick response is needed. The FIK-UV-IR-AS11 detects a 1ft n-heptane fire at up to 100 ft away and responds within 5 milliseconds to fireballs or explosions, and it also detects hydrogen fires. The FIK-IR3-AS11 uses triple IR technology with high immunity to false alarms.

Can I get spares and service tools for Fike panels?

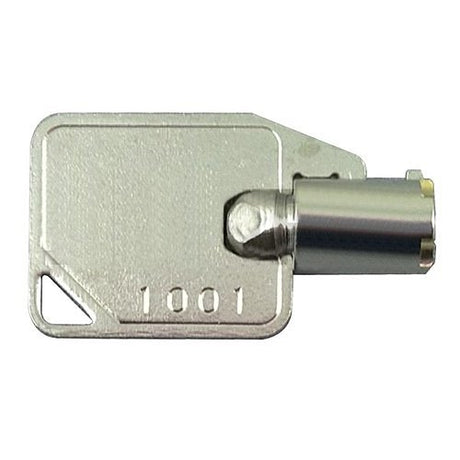

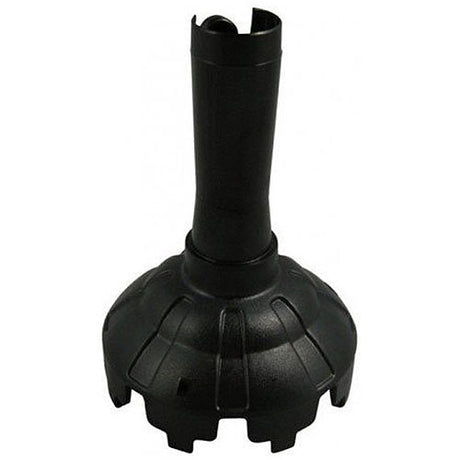

Yes, replacement doors, keys and detector maintenance tools are made for Fike panels and detectors. The Fike 23-0228-007 is a replacement front hinged door for TwinflexPro2 panels, the 09-0026 is a spare key for Twinflex Pro, Duonet and Quadnet panels, and the 25-0046-201 head removal tool fits the Solo poles range for high level access to Multipoint ASD detectors.
