Maglock Brackets & Accessories
This page includes Z and L brackets, armature housings, glass door fixings and safety straps for maglocks. The STP STP-EM500ZL-FIRE is a fire rated Z and L bracket for inward opening doors, and the CDVI UBKP fits electro-magnetic locks to glass doors 9mm to 15mm thick. The CDVI MAGSECR safety ropes are installed to avoid the risk of the lock falling if a maglock detaches from its mounting support or bracket.
Save £4.11
RGL Electronics BK600-D-L Double L Bracket, for ML600-D Range, 500x29x47 (mm)
£ 20 56RRP: £24.67

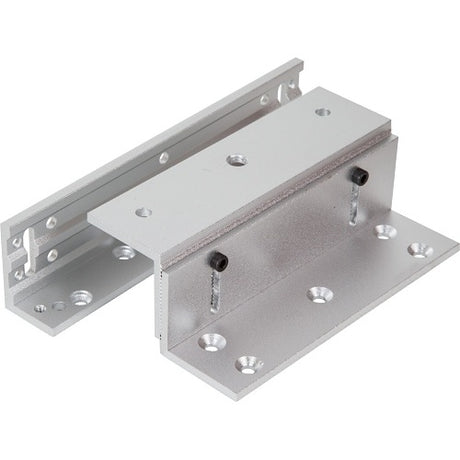

RGL Electronics BK300ZL bracket
£ 11 62
RGL Electronics BK1200ZL bracket
£ 19 04
£ 34 42

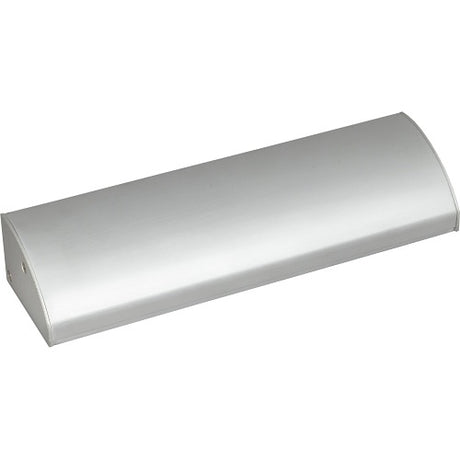

RGL Electronics AB1200CL bracket
£ 27 96
£ 28 91

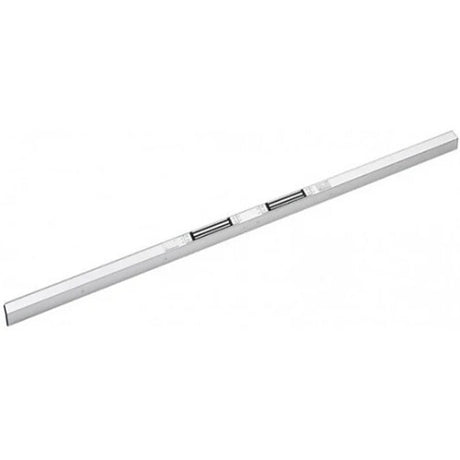

STP STP-EM-AH2/2 magnetic lock part
£ 128 33
£ 49 82
£ 20 88
Choosing Maglock Brackets & Accessories
Choose by the way the door opens, then by what the door is made of, then by how the finished installation should look.
Inward-opening doors

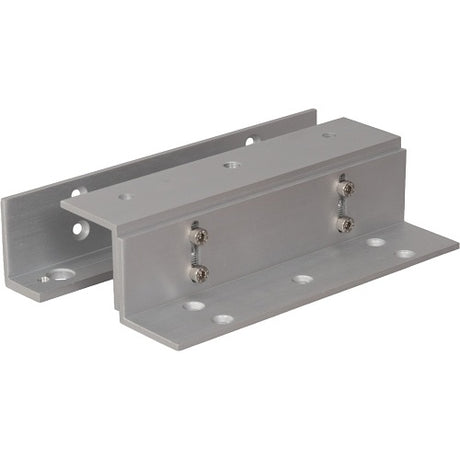

The STP STP-EM500ZL is an adjustable Z and L bracket set for maglocks on inward opening gates, with a Z bracket that adjusts for a recessed door. The CDVI 300/500Z is an adjustable Z bracket for the armature plates of 300kg, 400kg and 500kg internal surface maglocks. The RGL BKIP300ZL suits inward opening gates with the IP300ML-M external maglock, and its Z bracket gives an extra 20mm of reach for non standard door settings.
Outward-opening doors
The Adams Rite 261-701 adjustable L bracket suits outward opening doors where there is not enough space to fit the magnet to the head of the door frame. The CDVI 500L-ADJ is a fully adjustable L bracket for 500kg magnetic locks, useful where the maglock cannot fit directly under the transom, with a cavity and cut-out that make cabling easier.
Glass doors
The STP STP-GDB012 saddle clamps to the top of an outward opening glass door to hold the armature plate of a slim maglock, without drilling the glass or using adhesive. The Magnetic Solutions MS41GFKIT glass fixing kit suits 10 or 12mm APG doors and needs the MSPENLOC adhesive kit, one per door.
Housings and fire rated brackets

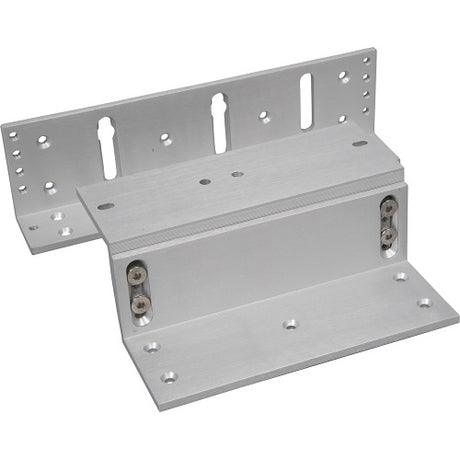

The STP STP-EM520M surface armature housing avoids drilling through the door, and the CDVI 500-AF is a flush armature housing in robust stainless steel. The RGL BK1200ZL Z and L bracket for the ML1200 range is fire tested on 30, 60, 90 and 120 min timber door sets, and the STP-EM500ZL-FIRE is FD30 and FD60 tested.
| Model | Type | Use |
|---|---|---|
| STP STP-EM500ZL | Adjustable Z and L bracket set | Inward opening gates |
| CDVI 300/500Z | Adjustable Z bracket | Armature plates of 300kg, 400kg or 500kg maglocks |
| Adams Rite 261-701 | Adjustable L bracket | Outward opening doors |
| CDVI UBKP | Universal U-bracket | Glass doors |
| STP STP-GDB012 | Glass door saddle | Outward opening glass doors |
| STP STP-EM520M | Surface armature housing | Standard maglock armature plates |
| RGL MAG-STRAP | Safety strap | ML600 and ML1200 range |
Related categories
The locks themselves are in maglocks and CDVI magnetic locks. More fittings are in access control accessories, and the wider range is access control systems.
Brands we stock in Maglock Brackets & Accessories
Adams Rite by ASSA ABLOY, Alpro, ASSA ABLOY, CDVI, CQR, Dahua Technology, Elmdene, Magnetic Solutions, RGL Electronics, Safety Technology International, STP and Union.
Frequently asked questions
Which Z and L bracket matches my maglock?
The bracket to choose follows the maglock model. The CDVI 300/500Z adjustable Z bracket mounts the armature plates of 300kg, 400kg and 500kg internal surface maglocks. The RGL BKIP300ZL fully adjustable brackets are for the RGL IP300ML-M slimline external maglock on inward opening gates, and the RGL BK1200ZL adjustable Z and L brackets are made for the ML1200 series and fire tested on 30, 60, 90 and 120 min timber door sets.
What is an L bracket for on a maglock?
The Adams Rite 261-800 adjustable L bracket is for outward opening doors where there is insufficient space to fit the magnet to the head of the door frame. The CDVI 500L-ADJ helps where the maglock cannot fit directly under the transom. The CDVI 300L takes 300kg and 400kg internal surface magnets, and for double magnets two of them are used together.
How is a maglock fitted to a glass door?
A maglock is fitted to a glass door with a bracket or kit made for glass, such as a U-bracket for glass doors or an adhesive mounting plate. The CDVI UBKP fits electro-magnetic locks to glass doors 9mm to 15mm thick and accepts 300kg, 400kg and 500kg magnets. The STP STP-GDB1200 saddle fixes a standard maglock armature plate to the top edge of a frameless glass door, and the Magnetic Solutions MSPENLOC adhesive kit attaches a mounting plate to a glass door.
What is a maglock safety strap for?

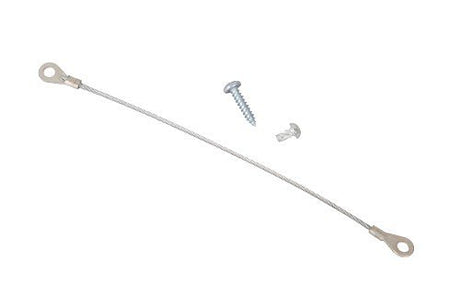

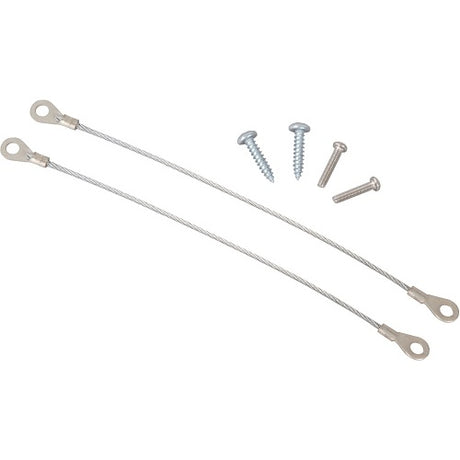

A maglock safety strap stops the lock or its armature plate falling if it comes away from its mounting bracket. Shocks, frequent use and vandalism can make a maglock detach, and the CDVI MAGSECR braided stainless steel ropes are installed to avoid the lock falling. The RGL MAG-STRAP fixes the maglock to the door frame and the RGL ARM-STRAP fixes the armature plate to the door, for the ML600 and ML1200 range.
What does a maglock armature housing do?
It mounts the armature plate on the door. The STP STP-EM520M lets a standard maglock armature plate be fitted to the door without drilling completely through it, and 2 are needed per double maglock. The CDVI 500-AF is a flush armature housing for 500 kg magnetic locks, and the armature housing on the Adams Rite 261-700 L bracket lets the magnet sit closer to the door.
