Photoelectric Beam Detectors

Photoelectric beam detectors send an active infrared beam between a transmitter and a receiver and raise an alarm when the beam is broken, for perimeter security. The range covers wired and battery-powered beam sets, twin and quad beams, laser detectors, and the towers and enclosures that conceal beams. Brands include Optex, Takex and CAME.

Choosing Photoelectric Beam Detectors

Choose by how the beam is powered and wired, by the distance it must cover, and by whether it sits on a wall, a pole or inside a tower.

Beam sets and quad beams

The Optex SL-350QN is a 100m outdoor active infrared beam set designed for perimeter security. Its IP65 housing is made of UV resistant polycarbonate. The Takex PXB-100HF has 4 synchronised high power beams, double modulation for light immunity, lightning and surge protection up to 15kV and an IP65 housing. The Takex PB-IN-100AT is an anti-crawl beam, designed so that an attempt to crawl through a portion of the beam creates an alarm event.

Where cabling is difficult

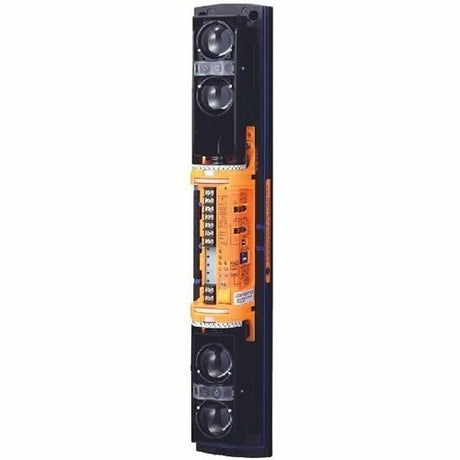

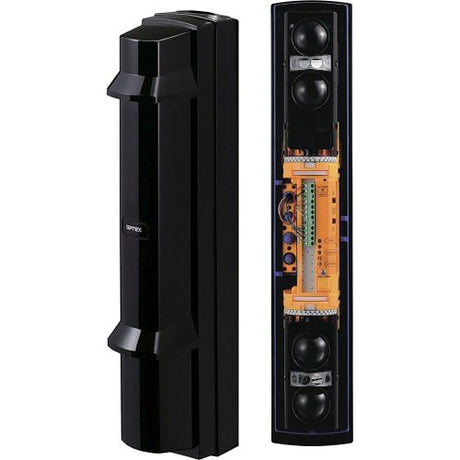

Where trenching is an issue, the Optex SL-350QFRi runs on batteries and comes with an Inovonics EN1941 wireless transmitter pre-installed and four batteries per set, with the option of eight for up to 10 years of battery life. The Optex SL-350QFR-BT has a 4 to 8 year battery life and a spacious back box for a wireless transmitter. The Takex TXF-20TDM battery beam needs no cables, is rated IP55 and suits temporary or permanent perimeter intruder systems. The Takex PR-11B works indoors and outdoors where running wire to both ends is impractical.

Channels and stacking

The Takex PB-IN-50HFA, PB-IN-200HFA and PXB-100HF have 4 selectable beam channels to prevent crosstalk, and the Optex SL-350QFRi has 4ch selectable beam frequency. The Takex TXF-20TDM can be stacked in multiple units without crosstalk, while the Optex SL-350QN is a non-stackable model.

Towers and enclosures

On the Optex STW050, STW150, TW50 and TW100 tower enclosures, beams can be mounted at any height and direction, and the number and height of the fitted beams become unknown to potential intruders. The Takex TAD-100 is a 1m double-sided tower for continual and corner zones, with vandal resistant polycarbonate covers and tamper protection. The Optex TW100M is a single-sided wall-mount enclosure, and the Optex TWSSL is a beam support kit for one transmitter and one receiver of the SL and AX-TFR Series.

ModelTypeKey point
SL-350QNWired beam set100m, IP65
SL-350QFRiBattery quad beam350', no trenching
TXF-20TDMBattery beamNo cables, IP55
PXB-100HF4 synchronised beamsIP65, surge protection up to 15kV
TAD-100Tower1m, 360°

Related categories

See the wider perimeter detection systems range, security alarms and sensors and burglar alarm sensors.

Brands we stock in Photoelectric Beam Detectors

CAME, Optex and Takex.

Frequently asked questions

How do you test a beam detector?

Test a security beam by walking through it at a few points along its length and checking that the receiver indicator and the alarm panel respond. Check the alignment and the signal level on the receiver too, following the maker's instructions. Fire beam detectors are tested differently, usually with a test filter that dims the beam. The range here includes quad beams and beam towers.

What is a beam detector?

A beam detector watches an invisible infrared beam sent between a transmitter and a receiver, and signals when the beam is broken or weakened. Security beams raise an intruder alarm when someone crosses a perimeter line, such as a fence or driveway, while fire beam detectors look for smoke across large rooms. The range here includes wired and battery-powered security beam sets.
